Shanghai Jinghao International Trade Co., Ltd. >> Ogm 1'', 1.5'', 2'' Oval Gear Meter/ Petrol Flow Measuring Meter (JH-OGM-E)

Ogm 1'', 1.5'', 2'' Oval Gear Meter/ Petrol Flow Measuring Meter (JH-OGM-E)

Name: Ogm 1'', 1.5'', 2'' Oval Gear Meter/ Petrol Flow Measuring Meter (JH-OGM-E)
Brand: china-manufacturer-directory.com
SKU: 774691825
Availability: InStock
Rating: 4.8 (27 reviews)

Supplier:	Shanghai Jinghao International Trade Co., Ltd.
Price:	US $ 90-190/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,CIP

Product Specifications

Prod Model:	JH-OGM-E
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Body Material:	Aluminum
Flow Range:	20-300 L/M
Power Supply:	12VDC/24VDC
Medium Temperature:	-20-120c
Output:	Pulse/4-20mA/RS485
Communication:	RS232,RS485,Hart,Modbus,
Work Pressure:	1.8MPa/3.4MPa
Protection Class:	IP65
Accuracy:	?à0.2-0.5%
Main Application:	Asphalt
Sensor:	Tube/Flange
Type:	Electromagnetic Flow Meter
Measuring Media:	Liquid
Measuring Principle:	Electrical Principles
Size:	Dn25-50

Product Description

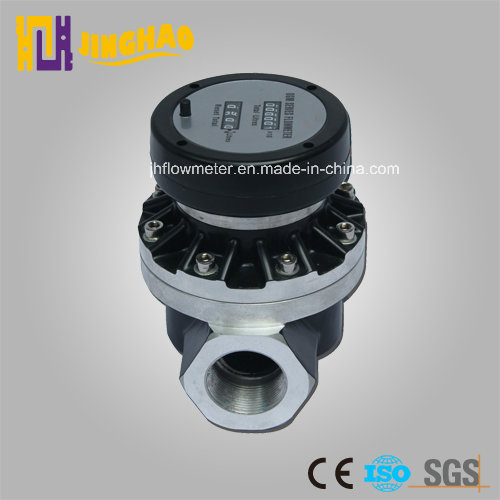

OGM Oval gear meter

OGM-E-25/40/50 aluminum oval gear meter has the ability to handle a wide range of fluid

viscosities with exceptional levels of repeatability and durability,applying in the

petroleum,chemical,food industry,etc.

Applications:

applying in the petroleum,chemical,food industry,LPG etc.

Features:
-Low pressure drop
-Compact size, easy maintenance
-Horizontally and vertically flexibility of installation options
-5-digital sub-total, with floating point from 0.01 to 99999.997-digital non-re-settable totalizer.
-3.6V lithium battery power, durable service.

Technical Specifications:

Model	25	40	50
Size	1"	1.5"	2"
Min. flow rate	20L/min	25L/min	30L/min
Max. flow rate	120L/min	250L/min	300L/min
Accuracy	±0.5%	±0.5%	±0.5%
Repeatability	≤0.03%	≤0.03%	≤0.03%
Max. viscosity	1000pcs	1000pcs	1000pcs
Max. operating pressure	3.4MPa	1.8 MPa	1.8 MPa
