Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure (For Chain): |
Roller Chain |
| Usage: |
Transmission Chain |
| Color: |
Black |
Product Description
Conveyor Belt
According to its functions, the covering rubber can be divided into types: -common, -heat-resistance, -cold-resistance, -alkaline-resistance. -oil-resistance, -static-resistance, -abrasion resistance
Conveyor belt and chevron belt etc. This kind of size canvas cloth is made of all-cotton, Anylon and cotton blend or trueran vinylon and cotton blend. Usage: Convey materials of non-corrosiveness, lump-shape, granular, or powder, such as coal, coke, sand stone, cement, or ready-maderticles. Multi-ply fabric light conveyor belt
Conveyor Belt Application
The belt conveyors consist of standard parts, which are advanced and simple in structure, easy to maintain. Our belt conveyors are adaptable for stationary and mobile crushing plants. They are widely used in mining, metallurgical and coal industry to transfer sandy or lump materials, or packaged materials. According to different transferring equipment, the transfer system can be one independently or multi-conveyors or combined with other transfer equipments. The belt conveyor can be installed horizontally or aslope to meet the needs of different transfer lines.
Conveyor Belt Features and Benefits
The belt conveyors produced by SJLC can be operated in the temperature situation ranging from -20 to +40. The temperature of transferred material by this belt conveyor should be lower than 50. The types of the belt conveyors produced by SJLC are as follows:
1. Divided by Driving Method
A. STD-Mechanical Drive. It's driven by cycloidal pinwheel reducer (with outdoor motor) and chain-drive mechanism.
B. STDJ Mechanical Drive Series. It adopts upside-down reducer and belt-drive mechanize.
C. STD-Electric Rotor Drive Series. It's driven by electric rotor.
2. Divided by Installation Methods
A. Fixed Series. It's directly installed on foundation.
B. SDY-Portable Series. It can be easily and freely moved and the capacity can be adjusted.
3. Divided by Structures
The belt conveyors produced by SJLC have three different structures.
A. U-steel b. Framec. Truss
NOTE:
There are two kinds of conveyors, one equipped with repairing walkway while the other without. When ordering the machine, the customers should give us clear instruction.
|
Belt Width(mm) |
Belt Length (m) /Power (Kw) |
Belt Speed(m/S) |
Capacity(t/h) |
|
400 |
≤ 12/1.5 |
1220/2.24 |
2025/3.57.5 |
1.31.6 |
4080 |
|
500 |
≤ 12/3 |
1220/45.5 |
2030/ 5.57.5 |
1.31.6 |
4080 |
|
650 |
≤ 12/4 |
1220/5.5 |
2030/7.511 |
1.31.6 |
131323 |
|
800 |
≤ 6/4 |
615/5.5 |
1530/7.515 |
1.31.6 |
278546 |
|
1000 |
≤ 10/5.5 |
1020/7.511 |
2040/1112 |
1.32.0 |
435853 |
|
1200 |
≤ 10/7.5 |
1020/11 |
2040/1530 |
1.32.0 |
6551284 |
Note: This specification is just reference, any changes are subject to the products.
NOTE:
1. The capacity in the above table is calculated under the following conditions: the density of the transferred material is 1.0t/ m31.6t/ m3, the transferring angle is ≤ 18, and stacking angle of the transferred material is 30.
2. The belt conveyor is used to transfer the material the density of which is less than 2.5t/ m3.
3. The length of the belt conveyor is limitless. We can design and manufacture it according to customers' special requirement...
|

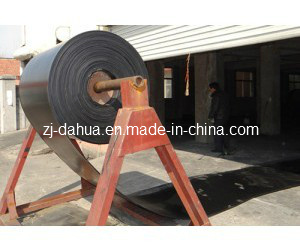

oil conveyor belt rubber physical and mechanical properties |
|
index name |
index |
|
hardness shao ear A degree |
60± 5 |
|
the amount of wear cm 3 /1.6km≤ |
1.2 |
|
tensible strengthMpa ≥ |
10 |
|
elongation at break %≥ |
300 |
|
oil volume change rate %≤ (50° C, 24h, 20#aviation lubricants) |
10 |
Tiantai Dahua Rubber Co., Ltd. Was found in 1987, and it is located in the so-called "Chinese Industrial Rubber Belt City" --- the Hongsan Industrial Zone of Tiantai County, which is quite close to 60th Provincial and Shangsan Highway, and it is only two hours'bus ride to Hangzhou, Ningbo and Wenzhou, with only four hours'drive to the International City Shanghai too. Our superior locational advantage is the strategic foundation of our Dahua Company's long-term sound development.
Our company covers 48000 square meters, owning 7 more advanced production lines in the same international field at present, which produces more than 2400000 m belts in different kinds for one year, with total output value 450 millions. We are one of the top ten enterprises, and have the self-management of export, which has more than 500 employees, thereinto, one technical director, four senior engineers, 20 intermediate technicians. Our rich human resources and advanced processing equipments offer us with firm talent and technical supply in the independent development of new products. Top advanced equipments for production and inspection and the strict quality management system are the absolute guarantees for products' quality.
Our rubber conveyor belts with "Shuangqiao" brand have been farther exported to Europe, South America, Mideast and Russia etc, with domestic customers all over China, and the product quality, pre-sales, sells, after-sales services also get consistent high praise all the time.
Holding the development guideline that "with all our strength to build a famous brand in the belt industry", our Dahua people improve our quality and offer services hard, building our brand image heart and soul. We all welcome the visitings and guide of customers new and old.
