Yueqing Omter Electronic & Technology Co., Ltd. >> Om200A-M2 2 Axis Potentiometer Joystick Without Spring Return

Om200A-M2 2 Axis Potentiometer Joystick Without Spring Return

Name: Om200A-M2 2 Axis Potentiometer Joystick Without Spring Return
Brand: China-Manufacturer-Directory.com
SKU: 689869002
Availability: InStock
Rating: 4.6 (135 reviews)

Supplier:	Yueqing Omter Electronic & Technology Co., Ltd.
Price:	US $ 17-19/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	OM200A-M2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Flexible Handling:	Small Resettin Error
Long Life-Time:	Terminal Type
With Seal Form:	Soft or Heavy Handling
For Move Photography CCTV Controlsystem:	for Medical Imaging System
For Automative Control:	for Video Editing Equipments
Task:	Adjust
Structure:	Combination
Signal:	Continuous
Mathematical Model:	Potentiometer Resistance

Product Description

2-Axis Potentiometer Joystick without spring return
Lever return: Auto Spring return

Description

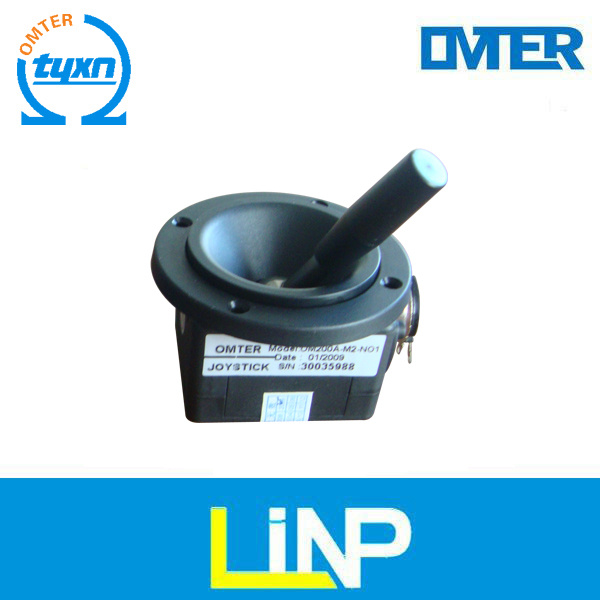

OM200A-M2 2 Axis potentiometer joystick without spring return
M1: The total resistance value is 5K, but the effect adjust resistance range is from 0K to 2.5k,then from 2.5k to 2K.

Order Instruction

1. Inquiry-Professional quotation.

2. Confirm the price, lead time, packing requirement, payment term etc.

3. OMTER sales send the Proforma Invoice with OMTER seal.

4. Customer make the payment and send us Bank receipt.

5. Will inform client that we have got the payment, arrange the production & inform the estimated time.

6. After delivery will inform the tracking number and check the status for clients.

7. Feedback to TALL about Quality , Service, Market Feedback & Suggestion. And we can do better .

Electrical Date
Specification	Unite
Resistance value	Standard 5K and 10k, On request
Resistance tolerance	±20%
Independent Linearity	±1%
Resloution	Essentially infinite
Temperature Coefficient resistance	±400 ppm/ °C
Output smoothness	0.5 Maximum
X&Y Axis Electricity Corner	±25 °
Z Axis Electricity Corner	±45 °
OM300Z,OM400Z ,OM300Z Axis Potentiometers	AWG28 silver plated, PTFE insulated Colorful lead wires standard length100mm or on request
Insulation resistance	50MΩ 500VDA, 60sec
Mechanical Date
Specification	Unite
Operate Torque	X & Y Axis 90gf & 250 gf , Z Axis 330 gf
Restoration Error Rate	±0.03KΩ
Prolepsis Mechanical Lifecycle	500 , 000 cycle
Operating Temperature Range	- 10 °C-80°C

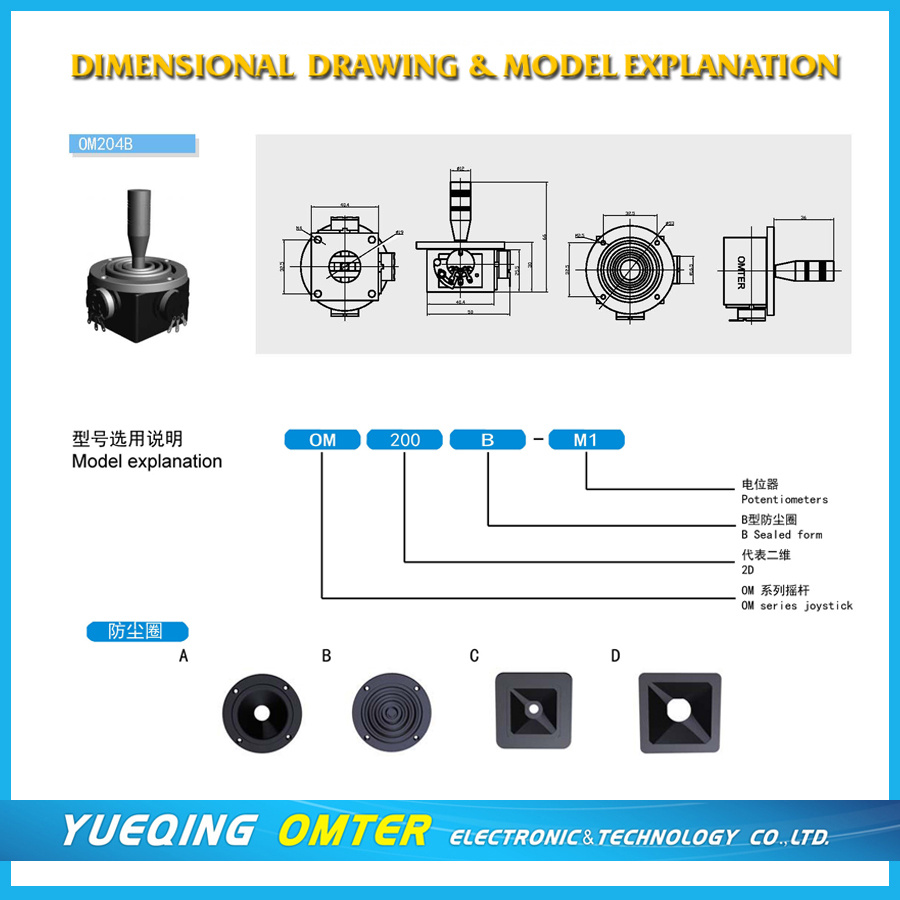

Potentiometer Selection:

M1: The total resistance value is 5K, but the effect adjust resistance range is from 1.8K to 2.5k,then from 2.5k to 3.2K.

M2: The total resistance value also is 5K, but the adjust range is from 0k to 2.5K then from 2.5K to 5K.

M3: The total resistance value is 10K, the adjust range is from 3.5K to 5k,then from 5K to 6.5K.

M4: The total resistance value is 10K, the adjust range is from 0K to 5K, then from 5K to 10K.

M5: The total resistance value is 100K, the adjust range is from 36K to 50 k,then from 50K to 64K.

M6: The total resistance value is 100K, the adjust range is from 0K to 50 k,then from 50 K to 100K.

LINP OMTER INTERNATIONAL HOLDINGS LIMITED, Including WENZHOU LINP TRADING Co., Ltd. And YUEQING OMTER ELEC&TECH COMPANY Ltd.

YUEQING OMTER ELEC&TECH COMPANY Ltd. Is a factory special in manufacturing knob, potentiometer and joystick and dealing with domestic business. WENZHOU LINP TRADING Co., Ltd. is responsible for the production of our company and various products of other companies import and export business.

Company have Strong technical force, with excellent supporting mold and injection molding equipment, professional technical personnel, with new product design, development and production capacity. Advanced production equipment, complete testing hand side, strict quality control, is a professional manufacturer of knobs.

Our TYXN knob according to the material difference. Have plastic knob, Bakelite knob, metal knob, aluminum knob and so on. According to the function difference. We have potentiometer knob. Radio push knob. Sound plastic components. Sound knob, dial knob, instrumentation knob. Electronic knob. Switch knob, welding knob and so on, Meanwhile. We also could make knob as customer need.

Our products are widely used in Security Industry of control the keyboard, move the camera and CCTV control systems, test equipment, measurement control, medical imaging control system, automatic machine control, video editing and production equipment, industrial and scientific use of instruments, wheelchair control, printing equipment, satellite, aviation, aerospace, marine, missiles, remote connector, operating robots, medical equipment, etc...

Our product are popular in America, Europe. Japan, Korea and so on. We are looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more information.
