Om200c-M1 2 Axis Potentiometer Joystick
| Price: |
US $ 17-19/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal,Western Union |
Product Specifications
| Prod Model: |
OM200C-M1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Flexible Handling: |
Small Resettin Error |
| Long Life-Time: |
Terminal Type |
| With Seal Form: |
Soft or Heavy Handling |
| For Move Photography CCTV Controlsystem: |
for Medical Imaging System |
| For Automative Control: |
for Video Editing Equipments |
| Task: |
Adjust |
| Structure: |
Combination |
| Signal: |
Continuous |
| Mathematical Model: |
Potentiometer Resistance |
Product Description

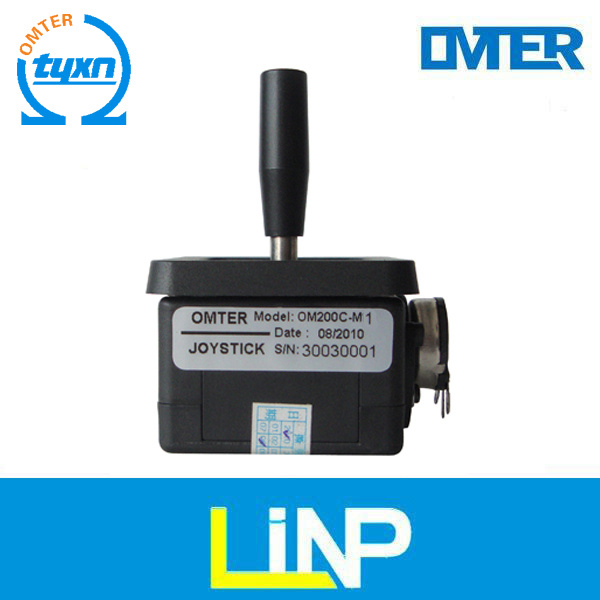

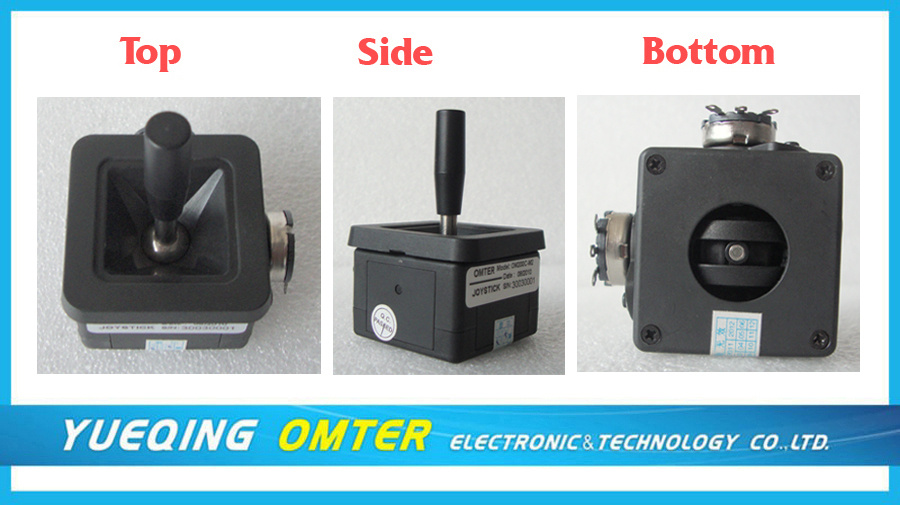

2-Axis Potentiometer Joystick
Resistance:5k Ohm,10k Ohm
Lever return: Auto Spring return
Description
OM200C-M1: 2 AXIS joystick
M1: The total resistance value is 5K, but the effect adjust resistance range is from 1.8K to 2.5k,then from 2.5k to 3.2K.
|
Order Instruction |
|
1. Inquiry-Professional quotation. |
|
2. Confirm the price, lead time, packing requirement, payment term etc. |
|
3. OMTER sales send the Proforma Invoice with OMTER seal. |
|
4. Customer make the payment and send us Bank receipt. |
|
5. Will inform client that we have got the payment, arrange the production & inform the estimated time. |
|
6. After delivery will inform the tracking number and check the status for clients. |
|
7. Feedback to TALL about Quality , Service, Market Feedback & Suggestion. And we can do better . |
|
Electrical Date |
|
|
Specification |
Unite |
|
Resistance value |
Standard 5K and 10k, On request |
|
Resistance tolerance |
±20% |
|
Independent Linearity |
±1% |
|
Resloution |
Essentially infinite |
|
Temperature Coefficient resistance |
±400 ppm/ °C |
|
Output smoothness |
0.5 Maximum |
|
X&Y Axis Electricity Corner |
±25 ° |
|
Z Axis Electricity Corner |
±45 ° |
|

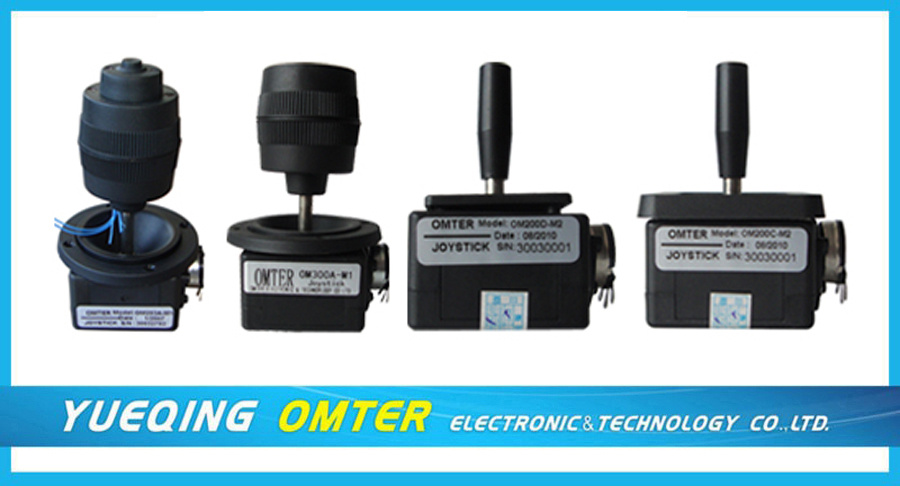

OM300Z,OM400Z ,OM300Z Axis Potentiometers |
AWG28 silver plated, PTFE insulated Colorful lead wires standard length100mm or on request |
|
Insulation resistance |
50MΩ 500VDA, 60sec |
|
Mechanical Date |
|
|
Specification |
Unite |
|
Operate Torque |
X & Y Axis 90gf & 250 gf , Z Axis 330 gf |
|
Restoration Error Rate |
±0.03KΩ |
|
Prolepsis Mechanical Lifecycle |
500 , 000 cycle |
|
Operating Temperature Range |
- 10 °C-80°C |
|

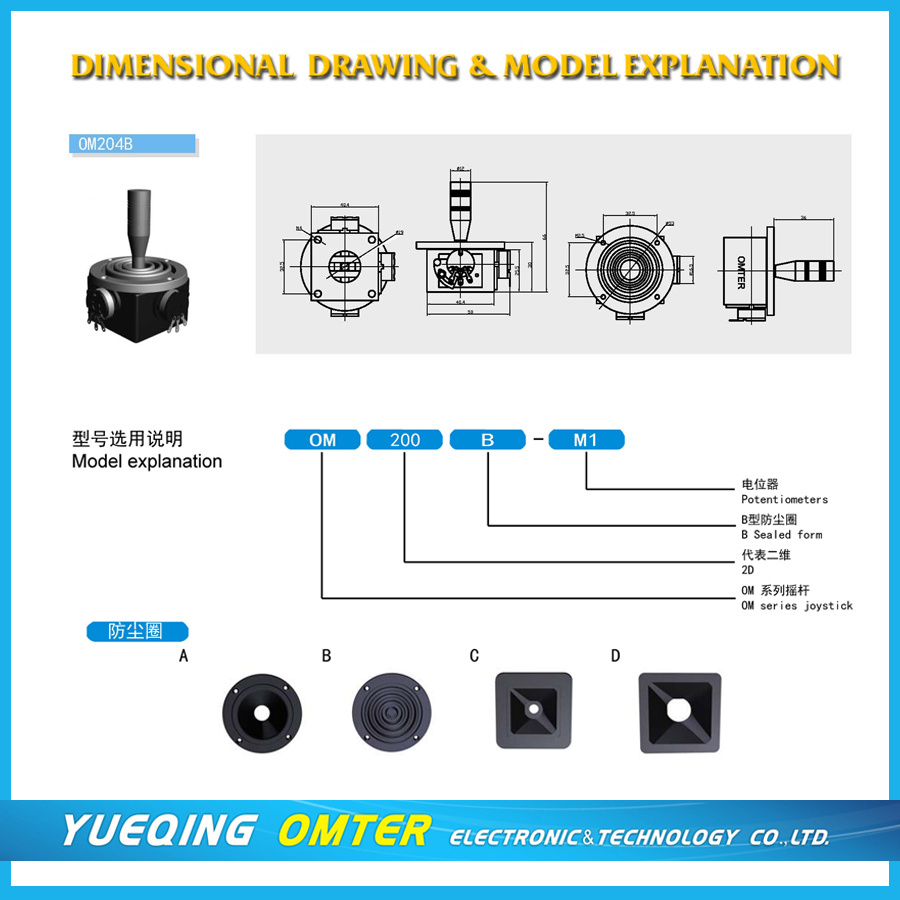

Potentiometer Selection: |
|
M1: The total resistance value is 5K, but the effect adjust resistance range is from 1.8K to 2.5k,then from 2.5k to 3.2K. |
|
M2: The total resistance value also is 5K, but the adjust range is from 0k to 2.5K then from 2.5K to 5K. |
|
M3: The total resistance value is 10K, the adjust range is from 3.5K to 5k,then from 5K to 6.5K. |
|
M4: The total resistance value is 10K, the adjust range is from 0K to 5K, then from 5K to 10K. |
|
M5: The total resistance value is 100K, the adjust range is from 36K to 50 k,then from 50K to 64K. |
|
M6: The total resistance value is 100K, the adjust range is from 0K to 50 k,then from 50 K to 100K. |
LINP OMTER INTERNATIONAL HOLDINGS LIMITED, Including WENZHOU LINP TRADING Co., Ltd. And YUEQING OMTER ELEC&TECH COMPANY Ltd.
YUEQING OMTER ELEC&TECH COMPANY Ltd. Is a factory special in manufacturing knob, potentiometer and joystick and dealing with domestic business. WENZHOU LINP TRADING Co., Ltd. is responsible for the production of our company and various products of other companies import and export business.
Company have Strong technical force, with excellent supporting mold and injection molding equipment, professional technical personnel, with new product design, development and production capacity. Advanced production equipment, complete testing hand side, strict quality control, is a professional manufacturer of knobs.
Our TYXN knob according to the material difference. Have plastic knob, Bakelite knob, metal knob, aluminum knob and so on. According to the function difference. We have potentiometer knob. Radio push knob. Sound plastic components. Sound knob, dial knob, instrumentation knob. Electronic knob. Switch knob, welding knob and so on, Meanwhile. We also could make knob as customer need.
Our products are widely used in Security Industry of control the keyboard, move the camera and CCTV control systems, test equipment, measurement control, medical imaging control system, automatic machine control, video editing and production equipment, industrial and scientific use of instruments, wheelchair control, printing equipment, satellite, aviation, aerospace, marine, missiles, remote connector, operating robots, medical equipment, etc...
