| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | T/T,Paypal,Western Union |
| Prod Model: | OM300A-M1 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Flexible Handling: | Small Resettin Error |
| Long Life-Time: | Terminal Type |
| With Seal Form: | Soft or Heavy Handling |
| For Move Photography CCTV Controlsystem: | for Medical Imaging System |
| For Automative Control: | for Video Editing Equipments |
| Task: | Adjust |
| Structure: | Combination |
| Signal: | Continuous |
| Mathematical Model: | Potentiometer Resistance |

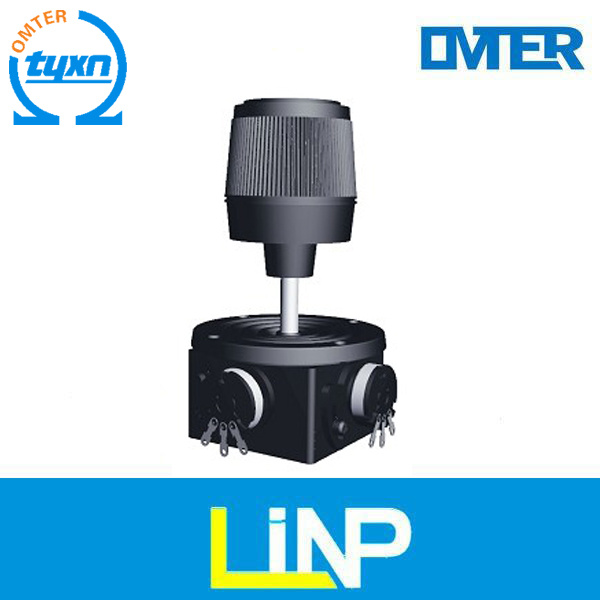

1.potentiometer joystick

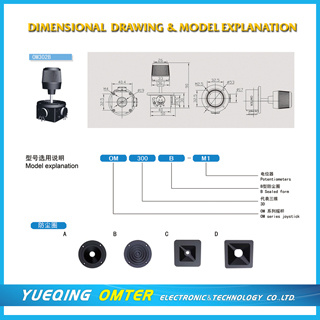

2.model:OM302B-M1 :M1: The total resistance value is 5K, but the effect adjust resistance range is from 1.8K to 2.5k,then from 2.5k to 3.2K.
3.standard resistance 5k and 10k. or could make as customer's needΩ or 10 KΩ on request
4.Resistance Tolerance: ±20%
5.Independent Linearity: ±1 %
6.Resolution: Essentially infinite
7.Temperature Coefficient Resistance: ±400 ppm/
8.Output Smoothness: 0.5 % maximum
9.X And Y Axis Electricity Corner: ±25°P-30°
10.Insulation Resistance: 50 MΩ at 500 VDC,60 sec.
11.Main pivot ball: precision ground stainless steel
12.Stick shaft: φ5mm
13.Operate Torque: X and Y axis 440gf,Z axis 880gf
14.Restoration Error Rate: ±1%
15.Prolepsis Mechanical Lifecycle: 500,000 cycle
