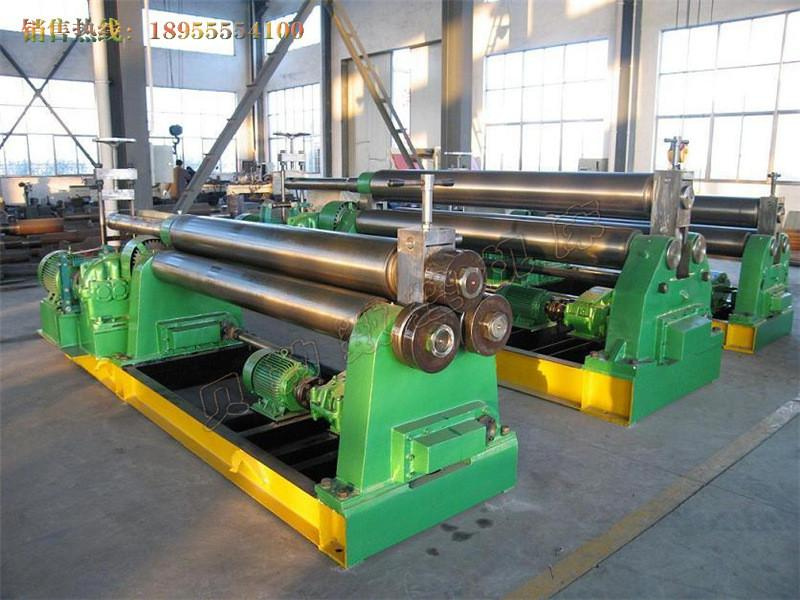

On Roller Universal Machine
Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automation: |
Semi-automatic |
| Type For Cutting Machine: |
Hydraulic Cutting Machine |
| Type For Fold-bending Machine: |
Hydraulic Fold-bend Machine |
| Application: |
Machinery & Hardware |
| Type: |
Pipe and Tube Bending Machine |
Product Description
Precision bending: The end of the end bending, can be freely set straight length, top roller pressure, under the certain pressure, the high-precision end bending.
Products superior precision: Due to the continuous bending, and high precision of bending, end of which products have superior accuracy; On the roller is in the shape of drum, rollers with adjustment, from thin plate rolled a wide range to the ideal product.
Rich bending shape: With a rolling type O, U, multistage R different shapes, such as the way 1, O type bending: The rear bending mode 2, u-shaped bending: The curved way ahead 3, special bending: Modular way different USES the corresponding control methods: According to the utility, has the following method: TNC (NC): Many kinds of small production with T & BNC (top and bottom NC0): Few varieties and mass production with CNC (CNC): Many kinds of mass production
CNC control, high production efficiency, one person operation, simple operation, greatly improve efficiency.
|
specifications |
Biggest
rolled
plate
thickness
MM |
The largest
bending
plate
thickness
MM |
Maximum
volume
board
width
MM |
Plate
yield
limit
MPA |
Roller pressure
TON |
Loaded with minimum diameter
MM |
Top roll diameter
MM |
The roll diameter
MM |
Under the two roller center distance
MM |
The motor power
KW |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
W11S-20×2500 |
20 |
16 |
2500 |
265 |
130 |
850 |
340 |
180 |
300 |
18.5 |
7.5 |
4 |
|
W11S-25×2000 |
25 |
20 |
2000 |
265 |
130 |
850 |
340 |
180 |
300 |
18.5 |
7.5 |
4 |
|
W11S-25×2500 |
25 |
20 |
2500 |
265 |
190 |
900 |
380 |
220 |
360 |
22 |
7.5 |
4 |
|
W11S-30×2500 |
30 |
25 |
2500 |
265 |
240 |
1100 |
430 |
235 |
380 |
30 |
11 |
4 |
|
W11S-30×3000 |
30 |
25 |
3000 |
265 |
270 |
1200 |
460 |
250 |
400 |
37 |
15 |
4 |
|
W11S-40×2500 |
40 |
35 |
2500 |
265 |
380 |
1600 |
480 |
275 |
500 |
37 |
22 |
5.5 |
|
W11S-40×3000 |
40 |
35 |
3000 |
265 |
450 |
1800 |
560 |
290 |
500 |
45 |
22 |
7.5 |
|
W11S-50×3000 |
50 |
45 |
3000 |
265 |
610 |
2000 |
620 |
360 |
650 |
55 |
30 |
1.5 |
|
W11S-60×3000 |
60 |
50 |
3000 |
265 |
690 |
2300 |
650 |
380 |
700 |
55 |
30 |
1.5 |
|
W11S-70×3000 |
70 |
60 |
3000 |
265 |
850 |
2800 |
740 |
420 |
780 |
75 |
37 |
1.5 |
|
W11S-80×3000 |
80 |
70 |
3000 |
265 |
1050 |
3500 |
770 |
460 |
880 |
90 |
37 |
18.5 |
|
W11S-100×3000 |
100 |
90 |
3000 |
265 |
1350 |
4000 |
860 |
480 |
920 |
90 |
45 |
22 |
Ma'anshan Baylor CNC Machine Co., Ltd. (a second machine tool plant in Anhui province) company is located in Ma'anshan, the traffic is very convenient, is the first national high and new technology development zone key introduction of high technology and new technology enterprise. Company focus on high power plate processing complete sets of equipment development, production and sales, including the thick plate shearing machine, CNC high-speed precision punching machine, electric-hydraulic servo bending machine, CNC shearing machine, combined punching and shearing machine, for clients to provide personalized, professional sheet metal processing system solutions.
Ma'anshan Baylor CNC Machine Tool Co., Ltd., registered in August 2004, is the biggest and earliest domestic plate shearing machine manufacturers, business address located in Ma'anshan city, looking at the new city high and new technology industrial development zone, 314 provincial highway. The company registered capital of 50 million yuan. Mainly engaged in sheet metal machinery development and production of CNC machinery. Company existing staff 280 people, including 5 professors, forging equipment automation application senior mechanical engineer 8 people, bachelor degree or above, more than 50%.
Ma'anshan Baylor CNC Machine Tool Co., Ltd. Main products: CNC sheet metal bending machine, CNC shearing machine, CNC plate bending rolls, combined punching and shearing machine, metal cutting machine tool of metal baling press. Widely used in decoration, metallurgy, shipbuilding, automobile, machinery, aviation, etc. Specializing in the production area. Company with the German technical cooperation Baylor, trumpf group has a strong technology development team, in order to meet the special requirements of customers for products, the company is willing to tailor personalized products for you. Baylor CNC Machine Tool Co., Ltd. Since its establishment in the "product quality in the domestic leading, world class" for the purpose of the enterprise management, with broad mind to welcome all friends from all over the world, "the good faith management, quality products, perfect service" as the management strategy, using the best products, to provide customers with the best products and best after-sale protection. Products and services in the electronics manufacturing industry, automobile manufacturing, railway transport, engineering machinery, agricultural machinery, elevator manufacturing, plastics and rubber machinery, food and food machinery, pharmaceutical machinery, aerospace, military industry, petroleum machinery, metal structure and professional sheet metal processing and other industries, sales region covering the whole country, expand overseas, the product won the praise of customers. Company is willing to make progress together with all the partners, to create a win-win situation, to create China's largest sheet metal processing complete sets of equipment manufacturing and R&D base.
