Product Specifications
Prod Model: |
IIJ-II |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Color: |
Gray |
G.W.: |
38 Kg |
Size: |
50X50X50cm |
Type: |
Universal Testing Machine |
Weight: |
0-100Kg |
Power Source: |
AC220V |
Product Description

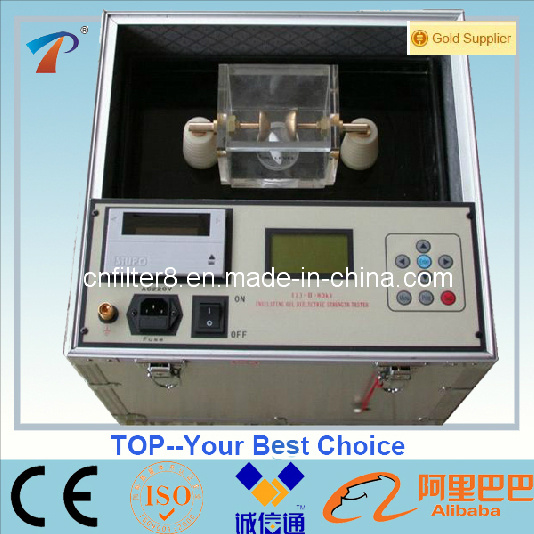

IEC 156 Portable insulating oil tester (IIJ-II-80)
1. Easy and accurate determination of the die-electric strength of insulating oils used in transformer
2. On-site field and laboratory use
3. Maximum possible safety of the operator and equipment
4. Output voltage 60kV, 80kV and 100kV
NEW DESIGN fully automatic inslation oil tester machine
IIJ-II series fully automatic oil tester is applied to test the insulating oil's dielectric strength, which is designed on the requirement of IEC156 Testing Method of Insulation Oil Medium Strength, which via proper programming, got functions of auto boosting, step down, stirring, display and print out.
Advantage:
1. After breakdown of oil medium, HV break off will operate within 10 seconds to enable an auto isolation of control system partly; This effectively safeguards the personnel and equipment safety.
2. It adopts industrial single plate integrated circuit, new-style I/O connecting cup, unique inspection, anti-jamming technology and industrial SCM which is applied to integrate circuit, particular testing and anti-jamming technology, which is largely improved the machine's capacity.
Parameter data:
1. Power supply: AC220V ± 10%, 50 HZ
2. Output voltage: 60 kV, 80 kV, 100 kV (100 kV should be specially designed)
3. Capacity: 1.2 KVA (for 60kV), 1.6 KVA (for 80 kV), 2.0 KVA (for 100 kV)
4. Pressure increase speed: About 2 KV/S
5. Voltage inspection accuracy: 3%
6. Dielectric strength sensitivity: <2KV
7. Wave from distortion: < 3%
8. Breakdown response time: <10ms
9. Polar distance: 2.5mm
10. Working environment: Temperature: 0 to 40 º C, humidity: < 85% (Relative Humidity)
11. Storage environment: Temperature: -20 to 60 º C, humidity: < 75% (Relative Humidity)
12. Working Altitude: < 1500 meters (If over 1500m, it can be customized)
Test equipment
1. Transformer oil Breakdown voltage Tester ( BDV test kit) series IIJ-II
2. Acidity tester model ACD-3000I
3. Karl Fischer Water content Tester Model TP-6A / model TP-2100
4. Fully automatic Interfacial Tension Analyzer model IT-800
5. Gas-Chromatography transformer oil gas analyzer model DGA2013-1
6. Multi-functional Vibration tester model TYD-2000
7. Automatic Freezing Point & Pour Point Tester model PT-2000
8. Kinematic Viscosity tester model VST-8 /model VST-2000
9. Flash point tester (open cup) model TPO-3000
10. Flash point tester (close cup) model TPC-3000
11. TAN-DELTA TESTER, 10kV Capacitance and Dissipation Factor Test Set model CDEF
12. Automatic Freezing Point & Pour Point Tester model TP-501Z
13. Determination of foaming characteristic of lubricating oil model SD-12579
14. Earth resistance tester model HYDW-II
15. Coil Resistance Tester (TPZC-40)
16. CT/PT tester model TPVA-404
17. Transformer turn ratio tester model HYG-II
18. Relaying Protection Tester model TPJB-III
19. Digital Grounding Resistance Tester model TP2571-II
20. DC High Voltage Generator model ZGF
21. Underground water/gold detector model TP-UWD
Power supply |
AC220V ± 10%, 50Hz /60Hz |
Output voltage |
60kV/ 80 kV /100 kV |
Capacity |
2.0 kVA |
Speed of voltage increase |
about 2 k V/ s |
Voltage inspection accuracy |
1 % |
Breakdown sensitivity |
< 0.1 kV |
Waveform distortion |
≤ 1 % |
Breakdown response time |
≤ 10 ms |
Polar distance |
2.5 mm |
Storage environment |
Temperature: 0 ° C -40 ° C |
Humidity: Max. relative humidity 85% |
Storage environment |
Temperature: - 20 ° C - 60 ° C |
Humidity: Max. relative humidity 75% |
Altitude |
<1500m (if over 1500m, it can be customized) |
Dimension |
380 mm* 380 mm*380mm |
Weight |
32 kg(N.W.) |
