Onboard AMD T56n Dual Core Processor 3.5'' Embedded Sbc with HDMI

Onboard AMD T56n Dual Core Processor 3.5'' Embedded Sbc with HDMI
Supplier: Huizhou Dayawan Fox Etech Limited
Price: US $ 165/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB,EXW,CIF
contact supplier

Product Specifications

Prod Model: EPIC-N45
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
From Factor: 3.5'' Sbc
Integrated Graphics: Integrated Graphics
Main Chipset: AMD
Maximum Memory Capacity: 4G
Structure: Mini-ITX
Memory: DDR3
SATA Interface: SATA2.0
Printed Circuit Board: Six Layer
Main Board Structure: Integrated
Audio Effects: Not HiFi
CPU Socket: Onboard T56n 1.6/1.65GHz Dual Core Processor

Product Description

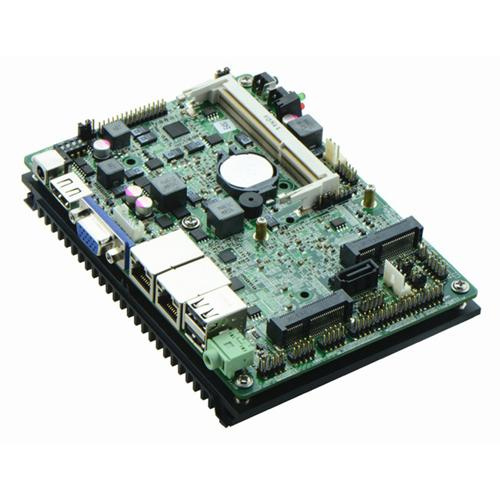

Onboard AMD T56N dual core processor 3.5'' Embedded SBC with HDMI

Specifications

Onboard T56N 1.6/1.65GHz Dual Core Processor;
AMD Hudson D1 Chipset;
Support VGA, HDMI, LVDS



Using AMD T56N 1.6/1.65 GHz dual core processor + AMD Hudson D1 high-speed chipset of high performance and low power consumption 3.5 "embedded industrial motherboard(With Heatsink)
Model NumberEPIC-N45
SpecificationDescription
Design3.5" SBC 6layers; PCB size:14.8x10.2cm
ChipsetAMD Hudson M1
CPUOnboard AMD T56N dual core processor
Memory1*204pin single DDR3 1066/800MHz,up to 4GB
Expansive slot1*Mini-PCIE ( support wireless network card )
AudioRealtek ALC662 six channel high fidelity audio
EthernetIntegrated RTL8111E network chip, support 10/100/1000 mbps ethernet data transmission, support network wake up function

Back I/O ports1* 12V DC_JACK input interface
 2* USB 2.0 interface
 2* RJ-45 network interface
 1*  Line out
 1* HDMI
 1* VGA
Internal I/O ports4*USB 2.0
 4*COM ( COM4 support RS232/RS422/RS485)
 1*AUDIO
 1*TX-RXCOM
 1*CPUFAN
 1*FP1
 1*FPW1 1*FRST1 1*FD1
 1*LVDS ( support single 24bit and dual 24bit )  1*LVDSINVERTER
 1*PWOUT(5V , 12V Output)
 1*SW3
 1*GPIO ( Support 4*GPIO )  1*CIR
Display functionIntegrated AMD Radeon HD6310 graphic card , support 1080P high definition
 Support VGA,HDMI,LVDS
 LVDS support single 24 bit and double channel 24 bit, when using LVDS screen
 LVDS screen resolution with SW3 dial the code switch to choose resolution
BIOSAMI 16MB Flash ROM
WatchdogSupport hardware reset function (level 256, 0 ~ 255 seconds)
Power supplyDC 12V Input
