Product Specifications
| Prod Model: |
TOP77 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Ad Player;Aio Machine; Thin Client; Firewall;Car P |
| Main Chipset: |
Intel |
| Structure: |
Mini-ITX |
| Memory: |
DDR3 |
| Integrated Graphics: |
Integrated Graphics |
| CPU Socket: |
Intel Mobile Sandy/IVY Bridge I3/I5/I7 Processors |
Product Description

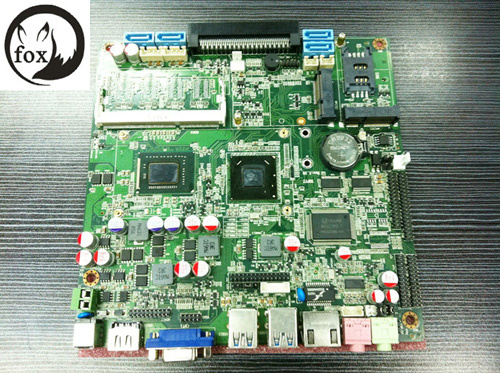

onboard i7 cpu computer component intel mainboard,onboard ddr3 dual core 12v mainboard support PXE and Wakeup on LAN
Quick Details
Products Status: Stock
Application: AD Player;AIO machine; Thin Client; Firewall;Car PC;HTPC;VOD; IPC; POS
Chipset Manufacturer: Intel
Socket Type: LGA1155
Form Factor: Mini-ITX
Memory Type: DDR3
Graphics Card Type: Integrated
Hard Drive Interface: SATA, mSATA socket
Brand Name: FOX or OEM
Model Number: top77-f19
Place of Origin: Guangdong, China (Mainland)
BOIS: AMI EFI 32MB SMT/DIP-SPI Flash ROM
Name: computer component intel mainboard
Operating System: Windows 2000,XP, Linux, win CE/XPe,win 8
Memory: 1*DDR3 SODIMM 204 Socket,maximum up to 8GB DDR3
Integrated Graphics: Intel HD Graphics 3000/4000 (CPU Integrated )
Storage: 2*MINI PCIE ,1*MINI SATA,4*SATA
LVDS: dual channel 24bit LVDS,Resolution maximum:1920*1200
COM: 6*COM expansion headers (support RS232/422/485)
Network: 1*1000M RJ45 Ethernet port
Power supply: 12V -DC power_Jack;4PIN/2PIN 12V_DC connector
Specifications
1.Intel HM77/HM76 Chipset
2.onboard i3/i5/i7 processors
3.4*USB 3.0 port
4.computer component intel mainboard
onboard i7 cpu computer component intel mainboard,onboard ddr3 dual core 12v mainboard support PXE and Wakeup on LAN
Product Description
Advantage:
1.Embedded high performance industrial motherboard.
2.1*DDR3 SODIMM 204 Socket,maximum up to 8GB DDR3 memory,1066/1333/1600MHz
3.Support WIFI/3G,SIM card slot onboard,1*1000M RJ45 LAN port,support Mini SATA SSD ,more efficiency.
4.Support power booting/plug and play,Timer-power-on.
5.Provide 4*USB3.0 ports.
6.Support 1080P,HDMI resolution maximum up to:1920*1200;Support 24bit dual channel LVDS;VGA resolution maximum up to:2048*1536.
7.Reliable, High stability, Low noise, low power consumption.Perfectly suitable for Kiosk/AD Player/AIO machine/IPC/VOD/Car PC/HTPC etc.
|
Main Features |
|
Suitable for |
AD Player;AIO machine; Thin Client; Firewall;Car PC;HTPC;VOD; IPC; POS etc. |
|
Form Factor |
Mini-ITX 17cm×17cm |
|
Chipset Manufacturer |
Intel |
|
CPU |
Onboard CPU,support Intel Mobile sandy/ivy bridge i3/i5/i7 processors(optional). |
|
Chipset |
Intel® HM77/HM76 Express Chipset Optional. |
|
L2/L3 Cache |
L2 Cache:2×256KB;L3 Cache: 3MB.CPU integrated. |
|
BIOS |
AMI EFI 32MB SMT/DIP-SPI Flash ROM |
|
RAM |
1*DDR3 SODIMM 204 Socket,maximum up to 8GB DDR3 memory,1066/1333/1600MHz. |
|
Graphics Core |
Intel HD Graphics 3000/4000 (CPU Integrated ). |
|
Sound |
Onboard HDA ALC662,provide MIC-IN/LINE-OUT and expansion header. |
|
Network |
Onboard 1*Gigabit Ethernet,support PXE and Wakeup on LAN . |
|
Storage |
2*MINI PCIE 1*MINI SATA |
|
LVDS |
Support dual channel 24bit LVDS connector;Resolution maximum:1920*1200 |
|
USB |
8*USB (4 external-USB3.0;4 from expansion header-USB2.0) |
|
Expansion Sockets |
1*Mini SATA socket for SSD;2*Mini-PCIE socket for WIFI/3G;1*SIM card slot for 3G |
Rear Panel I/O |
1*12V -DC power_Jack |
|
1*power amplifier |
|
1*HDMI (Resolution maximum :(1920*1200 ) |
|
1*VGA port (Resolution maximum:( 2048x1536 ) |
|
4*USB 3.0 port |
|
1*1000M RJ45 Ethernet port |
|
1*Audio I/O interfaces (Line_out,Mic_in) |
Internal I/O |
4*USB 2.0 expansion header |
|
2*CPU/SYS Chassis fan connectors |
|
1*Audio I/O expansion header |
|
6*COM expansion headers (support RS232/422/485) |
|
1*GPIO expansion header(8 bit) |
|
1*VGA expansion header |
|
1*HDMI expansion header |
|
1*LVDS |
|
1*Audio power amplifier connector |
|
1*SPDIF expansion header |
|
1*LPT(2.0MM)expansion header |
|
Power Interface |
12V -DC power_Jack;4PIN/2PIN 12V_DC connector |
|
Working Temperature |
-20°C ~+60°C (-4°F~140°F) |
|
Storage Temperature |
-40°C ~+85°C (-40°F~185°F ) |
|
Operating Humidity |
10%~90% (non-condensing) |
