Product Specifications
| Prod Model: |
RY320A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

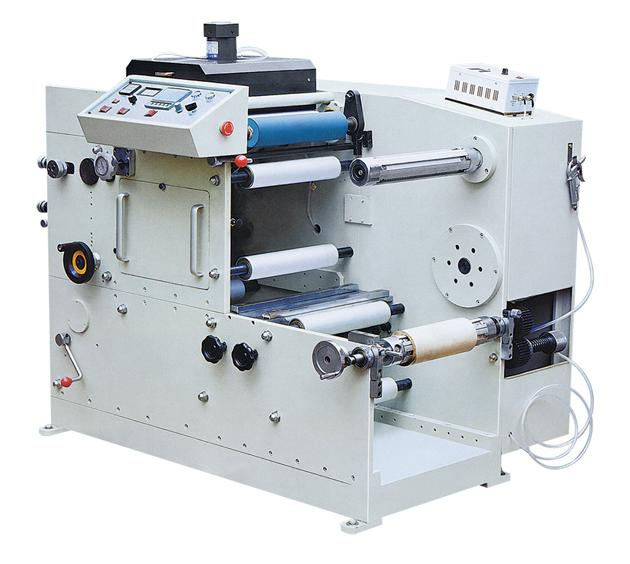

Product Description
Characteristics
1 The main motor adopts imported converter to govern in a steepless way.
2 Feeding and discharging are controlled through magnetic powder brake and clutch (Japanese Mitsubishi aut tension controller).
3 Unhindered system is controlled by auto rectify sensor.
4 Adopt ceramic mesh distributor roller, which is characterized by durability, wear resistance, and corrosion resistance, The doctors can be Used, which is more efficient for reducing the times for changing in order to increase the production efficiency.
5 The printing unit can register in 360degrees. Each printing unit can indepen deftly gear and loosen to have the units continue printing.
6 The printing units are all equipped with a group of infrared dryers respectively.
7 Each IR dryer device of printing unit can interchange of UV dryer device.
8 The roofing device is adopted with a group of infrared dryers respectively.
9 The inking roller can automatically fall off at stoppage and transfer at low speed in order to keep the ink from being bry and solid.
10 The roll feeding, printing, auto infrared drying. Laminating and rolling can be processed in one processing.
It is characterized by wide application, non-population of printing ink and fast drying, quick printing. So It is an ideal printing machine for the commercial bill to print high Graded free adhesive trademark.
Main Technical Variables
|
Printing speed |
50m/min |
|
Printing color |
1color |
|
Max web width |
320mm |
|
Max printing width |
310mm |
|
Max unwind diameter |
600mm |
|
Max rewind diameter |
550mm |
|
Printing girth |
175-320mm |
|
Overprint Precision |
±0.20mm |
|
Overall dimensions (L×W×H) |
1.6 x 1.1 x 1.4 (L x W x H) |
|
Machine weight |
About800kg |
Ruian city Henyue Printing Machinery Co.; Ltd located in Rui'an which well known as the capital of China's machinery, the traffic around is convenient. Our company is specializing in manufacturing trademark printing machines series. With excellent manufacture equipment and a group of high talented people who are versed in printing, designing, manufacturing and maintaining, also absorbs experience of domestic printing mechanism, our company relies on good management system, producing high-quality equipment to meet he needs of different levels in the market. After years of improvement and innovation, our enterprise develops many kinds of machines independently, such as automatic flexographic printing machine, label inspecting machine, adhesive label die-cutting machine, exquisite high speed label slitting and rewinding machine (vertical and horizontal), also typefull automatic computerized chromatographic printing machine and some main auxiliary equipment are available. The products are widely used in clothing trademarks, medicine, food and cosmetics, electronics, toys, gifts, stationeries, supermarket bar code and other label printing and production industries like this, all of them are popular in the world.
Along with daily new market, our company is constantly expanding sales network, products are exported to Europe, North America, Southeast Asia and other countries and regions, and we are looking forward to establish long business relationship with more customers. Facing to fierce industry competition, our company persists in the faith of "To developing a topping enterprise, making a topping quality and service, make unremitting efforts to surpass others" we'll try our best for the revitalization and development of national industry.
