One Head Good Design for Cap and Flat Embroidery Machine
Product Specifications
| Prod Model: |
WY1201CS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
12 Months |
| Main Motor: |
Panasonic Servo Motor |
| Xy Motor: |
Stepper Motor |
| Rail: |
Linear Rail |
| Belt: |
Italy Brand Belt |
| Bobbin Core: |
Aluminum Bobbin Core |
| Embroidery Size: |
360*510/360*1200mm |
| Control Panel: |
7 Inch Dahao/Topwisdom LCD Screen with 12 Language |
| Needles: |
Groz-Beckert Needles |
| Knitting Product Type: |
Hat |
| Knitting Style: |
Flat |
| Knitting Method: |
Single |
| Computerized: |
Computerized |
| Certification: |
ISO9001: 2000 |
| Condition: |
New |
| Type: |
Embroidery Machine |
| Knitting Machine Cut: |
Wy1201CS/Wy1501CS |
Product Description

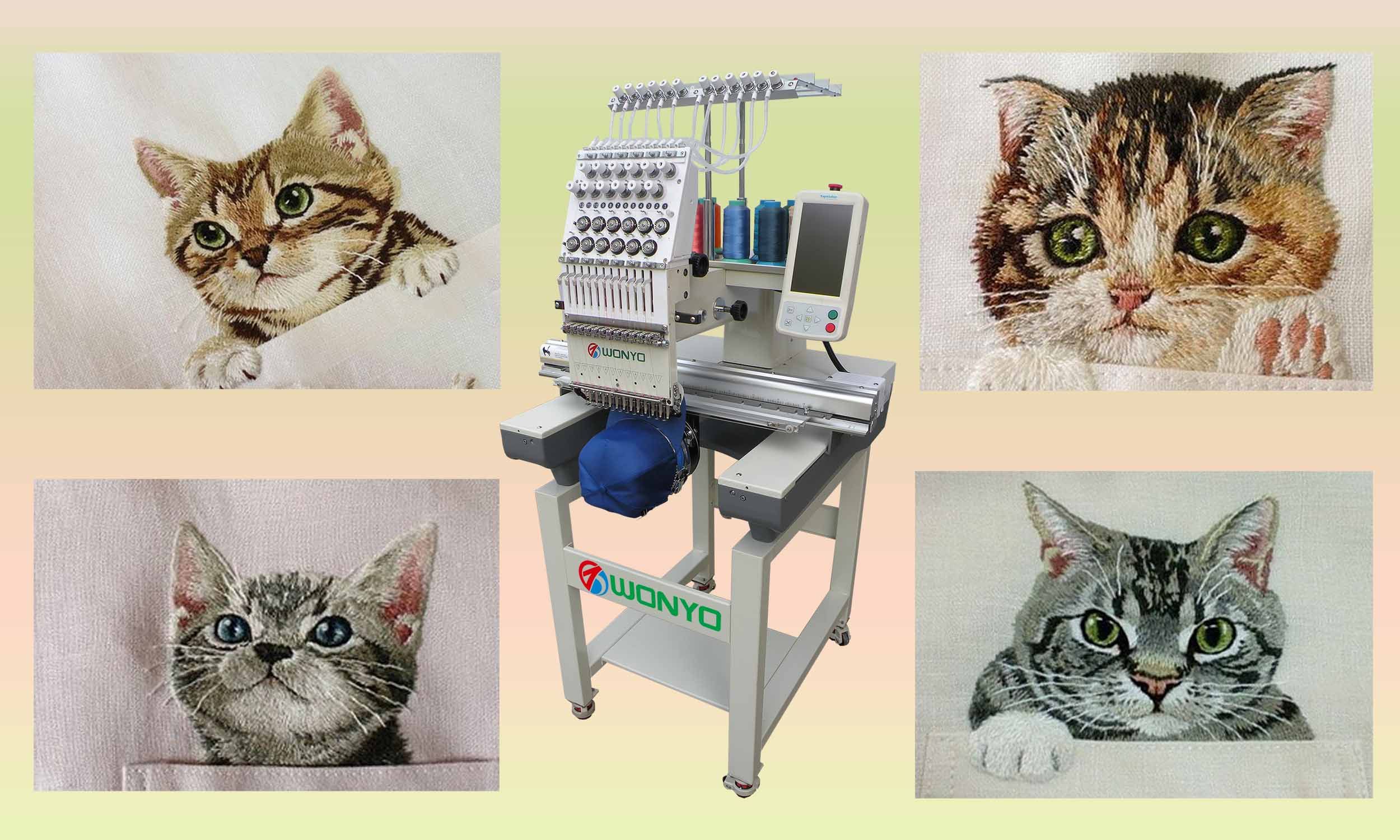

Embroidery Machine for Garment Curtain Car Cushion Uniform Embroidery(WY1201/1501CS)
Single Head Commercial Computerized Embroidery Machine with Touch Screen Computer (WY1201/1501CS) is single head computerized embroidery machine with 12/15 needles, which is suitable for flat embroidery, cap embroidery, T-shirt embroidery and finished garments embroidery, with touch screen computer.
![]()
Embroidery Machine for Garment Curtain Car Cushion Uniform Embroidery
Main Features: Suitable for flat embroidery, cap embroidery
Finished garments embroidery
Automatic thread trimmer
Maximum speed 1200 SPM
270°wide cap frame unit
Color LCD display showing real time stitching
USB input port
Automatic color change
Thread break detection
Pre-sew design trace capable
Memory size 2, 000, 000 stitches
Emergency stop
Servo motor 150W
Electricity: 110V/60Hz or 220V/50Hz available
Machine Size: 75X74X85CM
Control Panel Functions:
Color LCD display showing real time stitching
Start, Stop, and emergency Stop
Function keys including Menu, Speed up and Slow down
(also Page Up and Page Down), Help, USB Input,
Dot Key to return to 100 degrees, Parameter Settings, Clear, ESC, Enter, etc.
Numeric keys for selection of needles
Embroidery Status
Manual Trimming
On-board lettering
Manual Color Change
Multi languages available
Frame-moving keys
Frames / Hoops Included:
2 x Round Hoop 9 cm (3.5")
2 x Round Hoop 12 cm (4.7")
2 x Round Hoop 15 cm (5.9")
2 x Round Hoop 20 cm (9")
2 x Square Hoop 29 x 29 cm (12" x 12")
1 x Oval hoop 54 x 36 cm (21" x 14")
Embroidery Machine for Garment Curtain Car Cushion Uniform Embroidery
Cap Attachment Included
Accessories Included:
Table and stand with wheels for easy moving around, 70 x 70 x 78 cm or 27.50" x 27.50" x 30.50" with the net weight of 38 kilograms Operation Manual Tool Kit
Optional Device:
Sequin device
Cording device
Robot Frame
8 in 1 device
Belt hoop
Boring device
Laser positioning device
![]()
Single Head 12 Colors / 15 Colors
Working Area is 360*510mm
Also 360*1200mm
![]()
Speed is 1200 stitches per minute
For cap embroidery / flat embroidery / finished garments embroidery /logo embroidery.
Send Us an Email and We Will Show You Machine Working Videos.
5 Year Limited Warranty
Warranty doesn't cover shipping or travel expenses.
WARRANTY PERIOD
Wonyo Embroidery Machines limited warranty applies for the period specified below. The warranty period begins on the date of shipment as indicated on the packing slip or invoice.
1 Year coverage on all parts Warranty doesn't cover shipping expenses. All machines are repaired on WONYO Embroidery Machines facility only.
2 Year coverage on all electrical components such as Wiring Harnesses/Cables, Motors, Solenoids, Switches, Sensors, Rotary Encoders, Fans, Transformers, Light Fixtures, Circuit Boards/Cards, Controller, Rotary Encoders, and Potentiometers. Customer is responsible for shipping charges...
5 year coverage on Drive Train Components including Bushings, Bearings, Cams, Gears, Pulleys, Sprockets, Belts, Chains, Shafts, Drive Cables, and Frame Drive Rails. Customer is responsible for shipping charges. | Needles | Head | Emb. Area (mm) | Length(mm) | Width(mm) | Height(mm) | Weight(kg) |
| 12 or 15 | 1 | 360*510 | 800 | 800 | 1600 | 180 |
| 12 or 15 | 1 | 360*1200 | 1580 | 950 | 1050 | 260 |
Embroidery Machine for Garment Curtain Car Cushion
![]()
![]()
Shenzhen Wanyang Technology Co., Ltd is a science and technology enterprise that integrated in design, manufacture and sales of the application of laser machines and computerized embroidery machines.
After years of development and technology accumulation. A team with full range of professional scientific research, development, sales and service has been made up and done a good work in the field of optics, electronics, precision machinery and software control under the concept of pioneering and innovation.
Industrial embroidery machines include: Single head embroidery machine, multi-heads embroidery machine, flat embroidery machine, sequin embroidery machine, towel embroidery machine, and the NEW MODEL: Laser embroidery machine.
Laser machines include: Fiber laser marking machine, semi-conductor laser marking machine, UV and C02 marking and printing machine; Fiber laserwelding machine, C02 laser cutting/engraving machine.
WONYO Mission:
Excellence in innovation and service, always focus on customer and meet increasingly diverse needs of our customers.
WONYO Values:
Innovation, dedication, loyalty, service, gratitude, sharing, team philosophy, and Win-Win business.
WONYO Target:
We always adhere to customer demand-oriented, providing customers with high quality products, professional, efficient, in time after-sales service; Committed in the field of laser equipment and embroidery equipment to become world-renowned companies, worthy of the trust of customers industry experts.
WanYang insists exploration, innovation and sustained value creation concept, providing top quality products and perfect service from production& processing solutions to comprehensive pre-sales, sales, after-sales support and services for customers all over the world.
