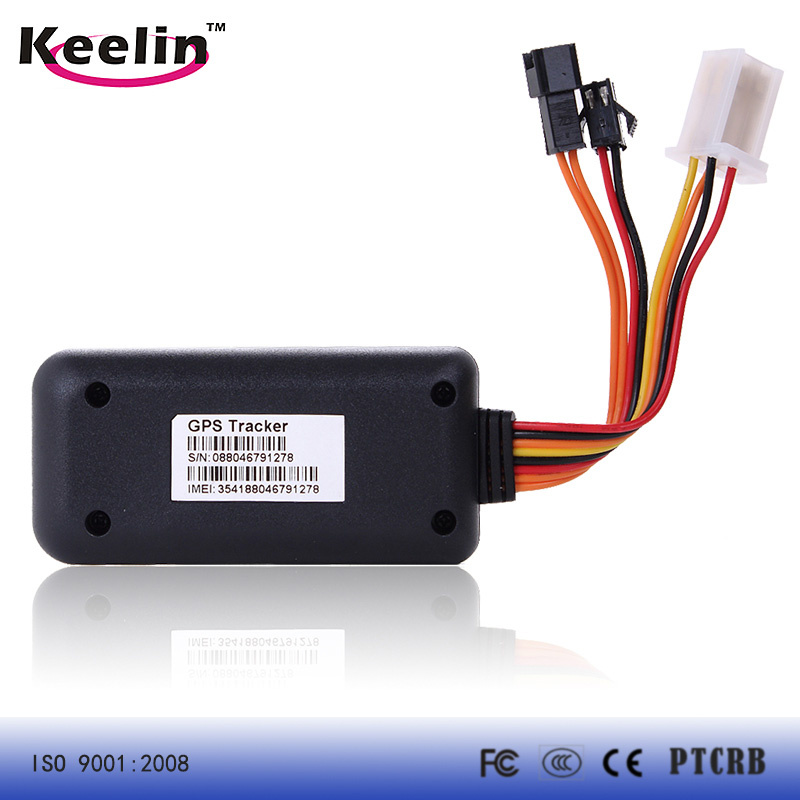

Product Specifications
| Prod Model: |
TK116 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Tk116 |
| Color: |
Black |
| Weight: |
45g |
| GSM Frequency: |
850/900/1800/1900MHz |
| Working Voltage: |
12VDC/24VDC/36VDC |
| Type: |
GPS Tracker |
| Use: |
Automotive |
Product Description
PRODUCT FEATURES:
Supports quad bands, i. E. 850/900/1800/1900MHz, worldwide used.
Wide Input Voltage: 6-36V DC.
GPS + GSM (LBS) Tracking
GPS precise positioning with A-GPS and feedback position via GPRS at setting times
Tracks real-time and playback
Web browser platform, Smart phone app platform and SMS query.
Built-in battery, Power disconnect alarm & Low battery alarm.
Supports multiple alarm, acceleration sensor can be added (B models, optional component), so as increase vibration, collision and falling alarm.
Supports ACC status checking and vehicle status notifying.
Use relay to remotely control the vehicle...
Use SOS button for SOS call.
Uses external microphone to monitor remotely.
Multiple protocol support, OTA upgrade program.
Mini size, easy to hide and install
ALARM TYPE:
Listen in remotely (Mic is needed)
Cut engine(Relay is needed)
SOS alarm (SOS button is needed)
Speed Alarm
Geo-fence Alarm
SOS Alarm
Power disconnect Alarm
Shift Alarm
Vibration / Collision / falling Alarm(Optional)
Specification
| Dimensions (mm) | 79.5(L)X38.5(W)X10.5(H) |
| Voltage | 12VDC/24VDC/36VDC |
| Work current | <30mA@12V |
| Standby Current | <10mA@12V |
| GPS positioning accuracy | 15m |
| GSM positioning accuracy | 100m |
| GPS Frequency | 1575MHz |
| GSM Frequency | 850/900/1800/1900MHz |
| Hot/warm/cold start time | <3s,<15s,<60s |
| Battery capacity | 200mAh |
| Operating temperature | -20ºC~70ºC |
| Operating humidity | 20%~80%RH |
| Net Weight | 45 g |
Main function
| Main Function |
| Brand | Eelink |
| Model | TK116 |
| Quantity | 1 piece(s) |
| Color | Black |
| Material | ABS |
| Network | GSM |
| Band | 850\900\1800\1900 MHz |
| SIM Card Qty. | one SIM |
| Tracking Information Method | Monitoring and controlling platform |
| Power Supply | DC 6~36V |
| GPS Chip | SIRF |
| GPS Sensitivity | -163 dB |
| GPS Channel | 20 |
| Position Accuracy | 10 m |
| Altitude Limit | 18000 m |
| Hot Start | 3 seconds |
| Warm Start | 15 seconds |
| Cold Start | 60 seconds |
| SOS | Yes |
| Geo-fence | Yes |
| Vibrating Alerts | Yes |
| Remote Monitoring | Yes |
| Engine Cut Off | Yes |
| Realtime Monitoring | Yes |
| Track Playback | Yes |
| ACC Anti-Theft | Yes |
| Overspeed Alerts | Yes |
| Low Battery Alerts | Yes |
| GPS Blind Area Alarm | Yes |
| Voice Call | No |
| Waterproof Function | Yes |
| Waterproof Rate | Daily user water resistant |
| Working Temperature | - 20 ~7 0 ºC |
| Working Humidity | 20 %~ 80 % |
| Manufacturer's Warranty | 12 Months excluding physical damages (see specifications for terms and details) |
| Certification | CE |
Application
Car Tracking solution
Taxi management solution
Vehicle tracking solution
Trucking and logistics solution
Secure transportation solution
Service oriented transporter solution
Operation centric solution
School bus management solution
Employee commuting solution
Police and public safety solution
