Product Specifications
| Prod Model: |
C270 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

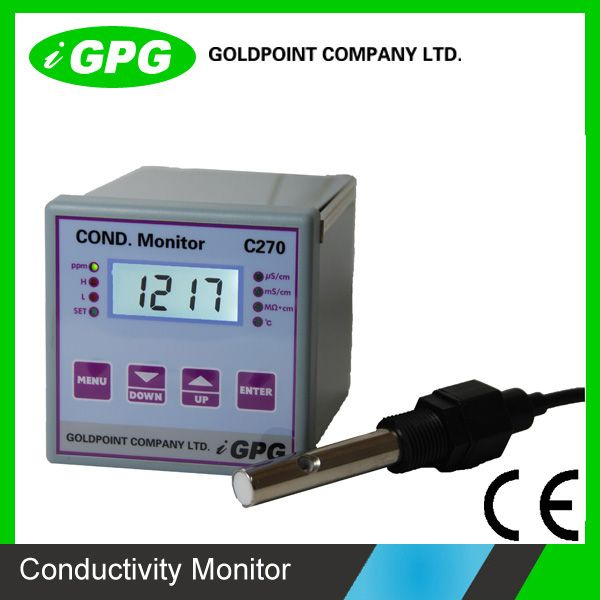

Online ultrapure water conductivity controller/EC meter/conductivity electrode/EC sensor/TDS meter
It is a panel instrument for on-line monitoring of industrial process conductivity. Range switch over and constant check can both be freely set and adjusted through the operation component on the rear panel; Unique signal collecting and processing technology and special thick film circuit are adopted to make measurement accurate and operation stable.
There are also other features such as linearized data, automatic temperature compensation, not subject to the length change of cable and maintenance-free. It has control function, including setting of over limit of conductivity, and the outputs are control contacts. It's an ideal auxiliary instrument of various types of small pure water equipment.
Measurement: 0 ~ 9999 us/cm or 0 ~ 300 ms/cm or 0~ 9999 ppm
Resolution: 0.01 us/cm to 0.1 ms/cm
Accuracy: ± 1 % F. S
Current Output: 4 ~ 20 mA
Output Relays: 2
Temperature Compensation: Automatic / manual
Power supply: AC110V~220V± 10%
Weight: 500 grams
Dimensions: 96*96*110mm
Protection Degree: IP54
Goldpoint (Shanghai) Instrument Company Ltd.
Website:
http://www.igpg.com.cn
http://www.goldpointgroup.com
Founded in 2001, Goldpoint(Shanghai)Co., Ltd. is Taiwan's Goldpoint Co., Ltd. Registered a wholly foreign-owned enterprise in the mainland, specializing in environmental monitoring instrument, equipment and systems integration in the import and export business. The manufacturing process of its products with the title by the Taiwan Goldpoint exclusive license, in strict accordance with enterprise standards, product quality and performance have reached the international advanced level, have well received in the domestic and international markets.
