Product Specifications
| Prod Model: |
PU66 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
UL |
| Warranty: |
>2 Years |
| Output Type: |
Multiple |
| Output Power: |
101 - 200W |
| Input Voltage: |
Full Range |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Starting Mode: |
Self-excited Switching Power Supply |
| Connection Mode: |
Series Switching Power Supply |
| Power Supplying System: |
Terminal Power Distribution Equipment |
Product Description
DESCRIPTION

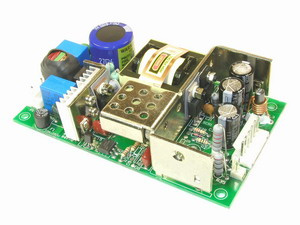

The PU66 series of compact, open PCB constructed, AC-DC switching power supplies are capable of delivering 45 to 65 watts of continuous output power. They operate at 90 to 264VAC input voltage without the need of voltage selection. They are ideally suited for use in data networking, computing and telecommunication applications.
FEATURES
Z EN61000-3-2 class A compliant
Z 3x 5 PCB and 1.2 height for 1u applications
65W output with free air convection cooling
Wide input range 90 to 264VAC
Z Overvoltage protection
Z Overcurrent protection
Compliant with RoHS requirements
INPUT SPECIFICATIONS
Input voltage: 90 to 264VAC
Input frequency: 47 to 63Hz Input current: 1.60A (RMS)for 115VAC 1.00A (RMS) for 230VAC
Earth leakage current: 0.47mA max @ 115VAC, 60Hz (Touch current) 0.85mA max @ 230VAC, 50Hz
OUTPUT SPECIFICATIONS
Output voltage/current: See rating chart
Total output power: 65 watts maximum
Ripple and noise: 1% peak to peak max. 1.5% peak to peak max. (Vo=3.3V)
Overvoltage protection: Provided on output#1 only (Vo have 3.3V provided on output#2); Set at 112-132% of its nominal output voltage
Overcurrent protection: All outputs protected to short circuit conditions
Temperature coefficient: All outputs ± 0.04% /C maximum
Transient response: Maximum excursion of 4% or better on all models, recovering to 1% of final value within 500us after a 25% step load change
MECHANICAL SPECIFICATIONS
NOTES:
Dimensions shown in inches [mm]
Tolerance 0.02 [0.5] maximum
Connector P1: Molex header 09-65-2038 or equivalent, mating with Molex housing 09-50-1031 or equivalent.
Connector P3: Molex header 09-65-2068 or equivalent, mating with Molex housing 09-50-1061 or equivalent.
Connector P4: Molex header 22-04-1021 or equivalent for single output models only, mating with Molex housing 22-01-1023 or equivalent.
Weight: 330 grams (PCB format)
VR1 is for voltage adjustment of output #1, except models PU66-23-3A and PU66-31-3A. On models PU66-23-3A and PU66-31-3A, VR1 is for voltage adjustment of output #2, and VR2 for output #1.
