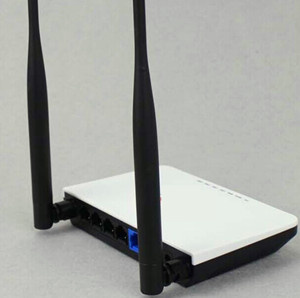

Product Specifications
| Prod Model: |
WS1500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Wireless |
| Firewall: |
Firewall |
| Application: |
Enterprise |
| Transfer Rate: |
10/100Mbps |
Product Description
Software support Openwrt /DDwrt supports secondary development, can be customized according to customer's request
Hardware specifications
Configuration
Ralink(MTK) MT7620N MIPS24KEc Soc 580MHz
FLASH: SPI 4M(MAX 32M)
RAM: DDR1 32MMAX 128M)
Protocol standard 802.11 b, 802.11 g, IEEE 802.11 n
Wireless rate 300 Mbps 2.4G
Normal transmission power 50mw~100mw
Interface
10/100M, one adaptive WAN, support automatic flip (Auto MDI/MDIX);
10/100M, Four adaptive LAN, support automatic flip (Auto MDI/MDIX);
One TTL interface
Button WPS/Reset
The power supply DC 12V, 1A,
Size
Wireless parameters
The basic function SSID broadcasting switch
Channel choice: 1-13
Optional: Spectrum bandwidth 20 MHZ, 40 MHZ, automatic
Wireless mode optional: 11n only, 11 BGN mixed, 11 bg mixed, 11g only, 11b only
Working mode AP mode
WDS wireless bridge mode
Clinet
Clinet + AP relay mode
Wireless security the wireless MAC address filtering
64/128/152 - bit WEP encryption
WPA-PSK/WPA2-PSK, WPA/WPA2 security mechanism
Function
Network Settings WAN connection type automatic detection
WAN connection type support: PPPoE, dynamic IP, static IP
Dial-up way type: Automatic dialing, manual dialing
Support the PPTP, L2TP, OpenVPN (optional)
DDNS dynamic domain name
Static routing
DHCP Settings DHCP server
DHCP client
Client list
Static address allocation
Port forwarding
A virtual server
Special application
DMZ host
UPnP Settings
Security Settings IP and MAC address binding prevention of ARP attacking
IP address filtering
MAC address filtering
DE DoS attack prevention
FLOOD attack prevention
Ping packet control
System tools traffic statistics
System security log
Remote Web management
Configuration files, import and export
TFTP software upgrade
Using environment Working temperature: 0 degree to 40 degree
Storage temperature: - 20 degree to 60 degree
Working humidity: 10% to 90% RH without condensation
Store humidity: 5% to 90% RH without condensation
