Product Specifications
| Prod Model: |
RS5800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

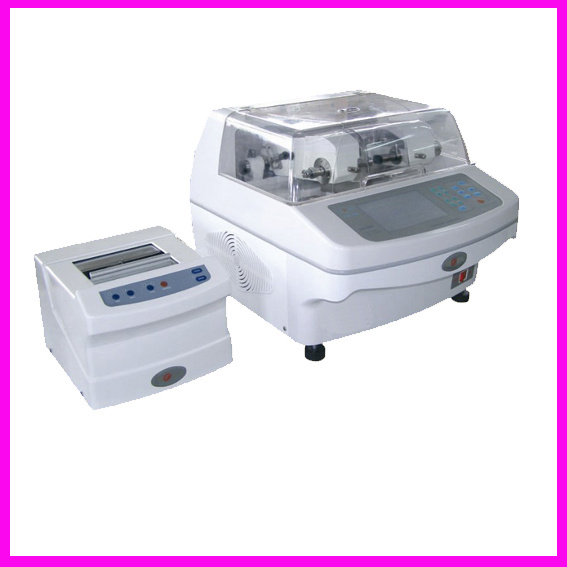

Patternless Auto lens edgerTechnocal data:
1. The main technical standards is up to the imported products of the same kind. Both the edging accuracy and the processing fineness are at the leading position among the Chinese edgers.
2. The Sand wheels were made with imported material with good performance in Glass lens, CR lens and PC lens edging processes can be by a single edger.
3. The patternless edger and the tracer are two separated bodies, easy for maintenance.
4. The Mode of optical centering makes the installation of sucker very easy.
5. The display shows the actual size and the shape of the lens being processed. This is particularly helpful for the beginner.
6. Automatic initialization and setting.
7. The sophisticated computer controlling system ensures the edging reliability and accuracy.
8. Lens material: PC, Glass and plastics.
9. Frame type: Frame, brimless and half brim.
10. Lens size: Maximum 100mm, minimum 18mm (flat edge): 20mm (v edge)
11. Size of LCD 152MM*430MM
12. Weight: 51kg
13. Voltage: 220V -50Hz, 110V-60Hz
14. Power: 660W
15. Water supply: City water or closed circulating water.
Tracer
1. Automatic initialization
2. Automatic setting
3. Automatic testing
4. Automatic counting
5. Special method for frame positioning and automatic gripping.
6. Automatic calculation for the minimum lens-diameter required.
7. Automatic measurement of the distance between the two eyes of the frame.
8. Suitable for both frame and pattern.
9. Voltage: 220V /50Hz or 110V /60Hz
10. Power: 100W
11. Size of the machine: 280*310*220
Nanjing Redsun Optical Co., Ltd. is a professional manufacturer and distributors in the field of optical lens and ophthalmic instruments. Our company locates in the beautiful city of Nanjing in Jiangsu province. Nanjing is only 300km from Shanghai, Nanjing is the center of politics, economy, culture of Jiangsu. There wre 6 dynasty capitals in Nanjing city.
We gained good reputation among our customers and partners both at home and abroad. We not only provide our own products but also promote other high-quality goods to our cusotmers. Gradually, we acted as a "purchaser" for our customers. By this way, we help customers to save their time and take quality inspection. "Price, Quality, Delivery, Service" is our key to success. Due to our experience and decade's business relations, we save our cost from raw material, which leads to a competitive price of our final products.
Our workers consider factory as their home. They have high enthusiasm to work, which enable our factory to have a high output. We have our inspecton department who check the final products once finished. We ensure all the goods delivered to customers is subjected to their requirements. We provide after-sales service to every customer. We will follow up their special request and devote to satisfying their need. Customers are not only customers but also our friends. How to help our customers to do larger business is what we are always concerning. When customers have large development and more profits, we believe our company is closer to success.
We will keep carrying out our good policy and make more friends. We are sincerely hoping to build up a long term business relations with our old and new customers from home and abroad. If you want to know more information about our company and our products, please do not hesitate to contact us.
