Optical Fiber Cassette 1X 8 PLC Splitter Module
| Price: |
US $ 10-20/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
Product Specifications
| Prod Model: |
1x 8 PLC Splitter |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Numbe: |
1 X 8 PLC Splitter Module |
| Wavelength(Nm): |
1260~1650 |
| Operation Temperature: |
-40~+85 |
| Connector Type: |
Sc/APC or FC/APC |
| Application: |
FTTH,CATV... |
| Certification: |
ISO9001 |
| Brand: |
Daytai |
| Type: |
1 X 8 PLC Splitter |
| Connection Structure: |
Sc or FC |
Product Description

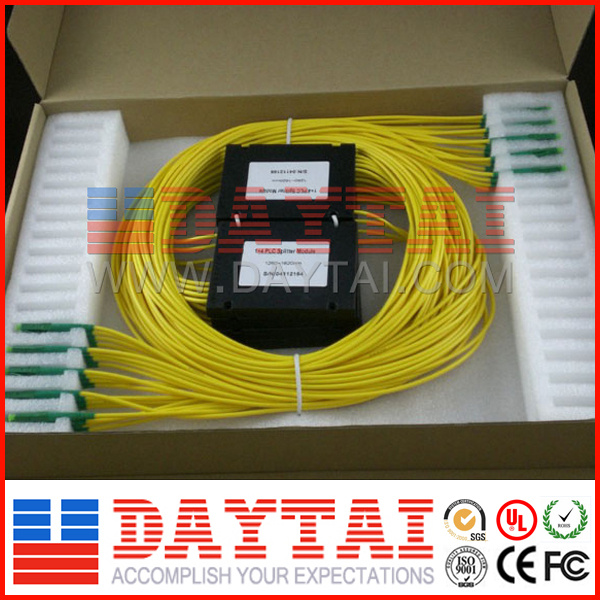

Optical Fiber Cassette 1x 8 PLC Splitter Module
1x 8 PLC Splitter Specification
1x 8 PLC Splitter Cassette type, (Box Size:100*80*10mm), SMF-28e fiber, OD:2.0mm pigtail,1m length.
1x 8 PLC Splitter Description:
1. Operating Wavelength(nm) :1260~1650
2. Return Loss(dB) : ≥50
3. Directivity(dB) : ≥55
4. Operation Temperature : -40~+85
5. Packing:1 pc/ctn
6. MOQ:1 pc
7. Delivery time:7~15 days,correct time according to your quantity
8. Fob Port: Ningbo,shanghai
1x 8 PLC Splitter Splitter Application
1.FTTH
2.Monitoring
3.CATV System
4.Network Protection
5.Access/PON Distribution
1x 8 PLC Splitter Performance
| ITEM | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x4 | 2x8 | 2x16 | 2x32 |
| Operating Wavelength (nm) | 1260~1650 |
| Insertion Loss (dB) Max. | 7.2 | 10.5 | 13.5 | 16.5 | 20.5 | 7.5 | 11.2 | 14.2 | 17.4 |
| 7.4 | 10.7 | 13.7 | 16.9 | 21 | 7.8 | 11.5 | 14.5 | 17.7 |
| Loss Uniformity (dB) Max. | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 | 1.5 | 1.5 | 2 | 2.5 |
| PDL (dB) Max. | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | 0.2 | 0.4 | 0.4 | 0.4 |
| Return Loss (dB) | ≥50 |
| Directivity (dB) | ≥55 |
| Fiber Length (m) | 1.2±0.1,(Other Requirements Can Be Provide) |
| Fiber Type | Corning SMF-28e, (Other Requirements Can Be Provide) |
| Operation Temperature °C | -40~+85 |
