Optical Fiber Welding Machine Equal to Sumitomo Type-39 Fusion Fibre Splicer

Product Specifications

Prod Model:	Fusion Splicer TCW-605C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number:	Fusion Splicer Tcw-605c
Work Mode:	Automatic/Manual
Return Loss:	60dB or Greater
Fiber Coating:	100um~1000um
Storage:	4000 Results
Align Mode:	Advanced Profile Alignment System(PAS)
Dimensions (L*W* H):	160mm*150mm*145mm
Data Transmission:	USB Port
Warranty:	One Year or More
Work Altitude:	0~5000 Meters Above Sea Level

Product Description

Optical Fiber Welding Machine Equal to Sumitomo Type-39 Fusion Fibre Splicer


Product Description

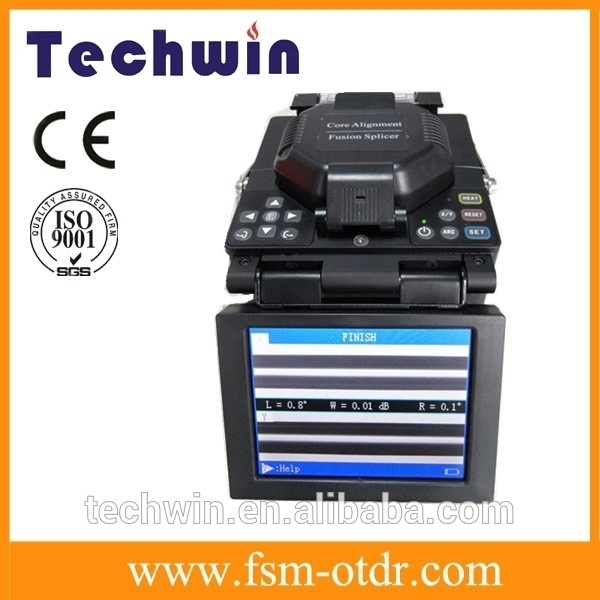

TCW-605c  fusion splicer adopts high-speed image processing technology and special precision- positioning technology,automatically finish the whole process of fiber fusion in 8 seconds typically, TFT LCD monitor displays all steps of fiber fusion clear at a glance.

Widely used for SM and MM Quartz Fiber with diameter 80-150μm, coating layer diameter 0.1-1.0mm and bare fiber length 16mm more or less.

Support Chinese, Japanese, Germany, Spanish, Russian, Korea, Portuguese, French, Italian, Turkish,English

specification


Optical Specifications	TCW-605C
Fiber Types	Single mode (ITU-T G.652), multimode (ITU-TG.651), dispersion shifted (ITU-TG.653), non-zero dispersion shifted (ITU-TG.655) and other SMF including ITU-TG657 fibers
Cable Types	Suitable for 0.25mm bare fiber, 0.9mm buffered fiber, Splice on Connector, Flat FTTH Fiber Cable(Drop Cable),Clamp Change Free
Average Splicing Loss	0.02dB with G.652 and G.657, 0.01dB with G.651 and 0.04dB with G.653 and G.655
Splicing Time	Typical splicing time:8s
Heating Time	Typical heating time:30s
Return Loss	60dB or greater
Fiber Coating	100μm to1000μm
Fiber Cladding	80μm to 150μm
Fiber Cleave Length	8~16mm(coating diameter<250µm), 16mm(coating diameter 250~1000µm)
Program	10 units factory setting SM program,10 units factory setting MM program,               and 30 units user setting SM program,30 units user setting MM program
Align Mode	Advanced profile alignment system(PAS)
Storage	4000 results
Data Transmission	USB port
Heater	Built-in tube heater, AUTO Heat Mode.
Heat-Shrinkable Tube	40mm,60mm and a series of micro Heat-Shrinkable Tubing
Screen Display	Two CMOS cameras,5.6 inch 640*480 TFT LCD, core of the fiber is clearly visible
Lighting for Construction	Built-in super High-brightness LED supply convenience for night work
Magnifications	300X for single X or Y view, 300X for X and Y view(left/right),150X for X and Y view(up/down)
Work mode	Automatic, Manual
General Specifications
Power Supply	Alternating Current:100-240 50Hz/60Hz 30W, Direct current:13.5V/4.5A           Built in 11.1V Li-ion battery charger and AC adaptor
Battery Life	Support 220 cycles( splicing and tube heating)on one charge(3.5hours) at least
Battery Lifetime	Cycle life up to 300~500 times, replaceable
Tension Test	2N
Electrode Lifetime	>4000 times, replaceable
Operating Temperature	-25°C ~ 50°C
Storage Temperature	-40°C ~ 80°C
Relative Humidity	0 to 95% (non-condensing)
Work Altitude	0~5000 meters above sea level
Instrument Weight	2.3kg (no battery) with AC/DC adapter, 2.8kg(including battery),
Dimensions(L x W x H)	160mm×150mm×145mm
Package G.W/N.W	10.0/9.0kg
Package (L x W x H)	620mm×420mm×360mm

Fusion Splicer TCW-605C Splicing machine TCW-605C with THREE advantages:

--Suitable for 0.25mm bare fiber, 0.9mm buffered fiber, Splice on Connector, Flat FTTH ---Fiber Cable(Drop Cable), clamp Change free(The First, Unique in the world)

--Button and Menu is same as FSM-60S, in accord with the habit of usage

--One Step Fiber Cleaver with Automatic Blade Rotation (The First, Unique in China)


Fusion Splicer TCW-605C Splicing machine TCW-605 Features

--PAS image digital processing system,core or clad alignment is optional;

--The arc is calibrated by the environmental parameters as temperature and pressure;

--Variety display group,the Maximum image magnification is 300;

--Typical splicing time is 8 seconds,30 seconds heating;

--Intelligence operate,auto heat or work when open the shield;

--High definition 5.7' colorful LCD;

--Hight to 4000 groups fusion records can be stored;

--High capacity,plug battery,long work time;

--Multilingual machine



Packaging & Shipping
Standard package includes ARC Fusion Splicer, Carrying Case, High Precision Fiber Cleaver, Tri-hole Fiber Coat Stripper, AC Adapter/Battery Charger, Battery Charger Cord, Battery Pack, Spare Electrodes(one pair), Blower Brush, V-groove Cleaning, Quick Reference Guide, Video Instruction Manual, Cooling Tray, Alcohol Dispenser, Monitor Coating, Monitor Cover, USB Cable.
