Optical Instrument Slit Lamp, Ophthalmic Slit Lamp
Product Specifications
| Prod Model: |
YZ5G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
CE, ISO, FDA |
| Quality: |
Top Quality |
| Bulb: |
Halegen or LED Bulb |
| Certification: |
ISO13485 |
| Type: |
Digital Imaging System |
| Classification: |
Imaging Diagnostic Equipment |
Product Description

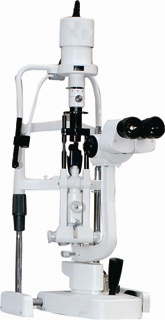

Our ophthalmic slit lamp, optical slit lamp serial include: portable slit lamp (Handheld slit lamp), Standard Slit Lamp, Zeiss type Slit lamp, Digital slit lamp microscope.YZ5G Optical Slit Lamp:
Characteristics:- 14mm aperture provides broader and clearer filed of view
- Imported Schott optics from Germany reduces optical distortion, increases clarity and depth of focus.
- All the optical lenses are moisture proof, mild proof and anti-reflected treated. Osram bulb provides the low heating, high brightness and even lighting.
- 5 step drum magnification for eyepiece. Sclera vein could be observed under the 40x magnification.
- Excellent optical performances and long span usage.
- All the joints can be connected by accessories with international standards.
| Technical Specification |
| Model | YZ5G |
| Microscope Type | Galilean Stereoscopic Microscope |
| Objective Magnification | 5 steps drum magnification |
| Eyepiece | 12.5x |
| Magnifications (field of view) | 6x (33mm), 10x (22.5mm), 16x(14mm), 25x (8.8mm), 40x (5.5mm) |
| Pupil Distance | 55mm-75mm |
| Diopter Adjustment | -5D ~ +3D |
| Slit Width | 0-14mm adjustable (Slit is round when the slit width is 14mm) |
| Slit Height | 1mm-14mm adjustable |
| Diameter of light Spot | ∮14mm, ∮ 10mm, ∮ 5mm, ∮2mm, ∮1mm, ∮0.2mm |
| Slit Angle | 0-180 °adjustable |
| Slit Inclination | 5°, 10°, 15°, 20°, |
| Filter | Heat Absorption, Grey, Redfree, Colbalt blue |
| Input Voltage | AC220V±22V, AC110V±11V |
| Electrical Safety Standard | Conform to Standard IEC601-1, Class I, Type B |
| Packing Volume | 720mmx495mmx480mm |
| Total Weight | 24kg |
| Optional Accessories | Applanation Tonometer, Measuring Eye Piece, Trihedron Lens, Gonioscope, Funduscope, Aspheric Lens, Teaching Tube |
