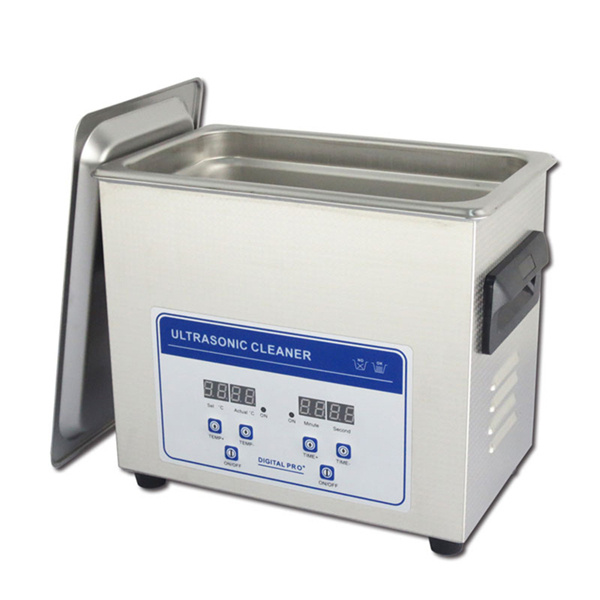

Optical Lens of precise instrument digital ultrasonic cleaning for lab use JP-020S
Application:
Jewelry industry, medical industry, electronic factory, molding factory, car workshop, diesel workshop, car industry, scientific laboratory, university, dental clinics, eyeglass shop, hardware tools shop.
ultrasonic cleaner Main feature:
1. Stainless steel tank has resistance to wear and long work life.
2. Tank capacity: 3.2L (0.75gallon), with digital timer & heater control
3. with Stainless steel basket
4. Use just tab water, or industrial alcohol and solvent cleaner for higher cleaning requirement
5. Industrial control chip microcontroller. Flexible circuit boards control, more secure & stable
6. Temperature tunable from 20°C to 80°C
7. Certification: CE& RoHS
Ultrasonic cleaner Specification data:
| Ultrasonic Frequency | 40,000 Hz |
| Material | Stainless Steel SUS304 |
| Tank Capacity | 3.2 L |
| Timer | 1-30minutes ,Digital timer |
| Power Supply | AC 100 ~ 120V, 50 / 60Hz
AC 220 ~ 240V, 50 / 60 Hz |
| Ultrasonic Power | 120W |
| Heating Power | 100 W , Digital Heating |
| Unit Size | 265 x 165 x 220 mm ( L x W x H ) |
| Tank Size | 240 x 135 x 100 mm ( L x W x H ) |
| Package Size | 360 x 280 x 320 mm ( L x W x H ) |
| N.W./ G.W. | 3.5 kg/4.0 kg |
Customer logo is welcome.
Distributors are welcome.
FAQ:
1. How about after sales services?
1 Year warranty for Skymen ultrasonic cleaner.
If any technical problem during warranty time, replacement parts will be sent free of charge. And technical support is also available after 1 year.
2. What are the advantages of ultrasound over traditional cleaning methods?
minimize the use of manual labor
make cleaning and degreasing without the use of organic solvents
clean hard to reach areas of products and remove all types of dirt
shorten the processes such as extraction, dispersion, purification, chemical reactions
eliminates costly mechanical and chemical cleaning of heat exchangers
3. What frequency is better for my parts?
Frequency is suggested based on pollutants in the objects.
28kHz frequency is stronger, better for car/motor/truck/vessel parts clean(remove oils, grease, pastes, etc. )
40kHz is better for pcb boards, electronic parts, etc.
Higher precision goods, higher frequency.
4. Can ultrasonic cleaning damage parts?
Ultrasonic cleaning is considered safe for most parts; although in some cases it is necessary to observe caution. Although the effect of thousands of implosions per second is very powerful, the cleaning process is safe.
Skymen Cleaning Equipment Shenzhen Co., Ltd. is a manufacturer all types ultrasonic cleaner from China. Our product include bench-top ultrasonic cleaners, mini household smart ultrasonic jewelry cleaner, industrial large tank ultrasonic cleaning machine, and submersible ultrasonic transducer pack system. capacity from 0.6L to 5000L or even more bigger. with powerful transducer and qualified design circuit control to reach very good cleaning result. mainly used in car part cleaning, tools cleanig, fruit&vegetable cleaning, hardware cleaning, commercial kitchen cleaning, etc...We also do OEM&ODM business for ultrasonic cleaner dealers and agents. And we sincerely welcome overseas ultrasonic cleaner distributers and wholesalors to establish business relationship.
