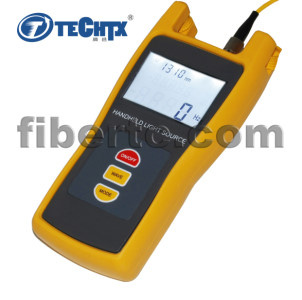

TC3109 optical light source can provide 1 to 4 output wavelengths to meet specific requirements, including the 650nm red source and the 1310/1550nm wavelengths for single mode fiber or the 850/1300nm wavelengths for multimode fiber, as well as other wavelengths according to customer needs. Together with the JW3208 optical power meter, it is a perfect solution for the fiber optic network characterization.
Features
Provides 1~4 output wavelengths which can be optional according to customer's needs
CW, 2Hz modulation output at 650nm, and CW, 270Hz, 1kHz, 2kHz
Modulation output at other wavelengths.
High stability of the output power
Stable output wavelength
Backlight LCD display supports night operation
Compact size and decent appearance
Large LCD, easy operation
Alternative 10 minutes Auto-off function conserving battery life
Applications
Maintenance in Telecom
Maintenance CATV
Fiber Optic Lab Testing
Other Fiber Optic Measurements
Specifications
TypeTC3109
Wavelengths(nm)6501310/1550850/1300850/1300/1310/1550
Emitter TypeFP-LD, LED or others please specify
Typical Output Power (dBm)0-7dBm for LD, -20dBm for LED
Spectral Width(nm)1. ≤ 10
Output Stability ± 0.05dB/15mins; ± 0.1dB/ 8hours
Modulation Frequencies CW, 2HzCW, 270Hz, 1kHz, 2kHz
Optical ConnectorFC/ universal adaptorFC/PC
Power SupplyAlkaline Battery(3 AA 1.5V batteries)
Battery Operating Time(hour)45
Operating Temperature-10~+60
Storage Temperature-25~+70
Dimension(mm)175X82X33
Weight (g)295
Joinwit Recommendation
TC3109 Handheld Light Source is designed for optimal use with TC3208 Optical Power Meter for measuring optical loss on both single mode and multimode fiber cable.
Standard Packages
MODELINCLUDES
AllTC3109 ModelsTC3109 Optical Light Source, Protective Rubber Boot, 3PCS 1.5V batteries, User Manual, Cotton swabs and Soft carrying case.
