Product Specifications
| Prod Model: |
TW3208 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Accuracy Class: |
High Precision |
| Operating Temperature: |
--10~+60 |
| Measurement Range (dBm): |
--70~+3 for Tw3208A / --50~+26 for Tw3208c |
| Uncertainty: |
+-5% |
| Battery Operating Time: |
240h with 1.5V Battery (3) |
| Battery (3) Resolution (dB): |
0.01 |
| Display: |
Digital |
| Usage: |
Maximum Demand Meter |
| Type: |
Power Meter |
Product Description

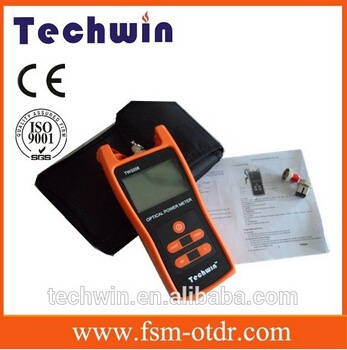

Techwin Optic Fiber Digital Laser Power Meter (TW3208)
-One Year Warranty
-Calibrated Wavelength(nm): 850,1300,1310,1490,1550,1625nm
-High accuracy
Techwin Optic Fiber Digital Laser Power Meter (TW3208)
Optical fiber Power Meter TW3208 handheld optical power meter is a compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers. It features delicate appearance, wide range of power measurement, high accuracy and user self-calibration function with high performance-to-price ratio.
Features
User self calibration function
Comfortable LCD display and optional backlight LCD display supports night operation
Modulation detection(Fiber detection) 270Hz,1kHz,2kHZ
Power measurements in dBm or mw and insertion loss in dB
Low battery consumption, more than 300 hours continual operation time for three 1.5V alkaline batteries
Optional 10 minutes Auto-off function
Applications
Maintenance in Telecom
Maintenance CATV
Test Lab of optical fibers
Other Fiber Optic Measurements
Specifications
Optical Fiber Power Meter TW3208
Type |
TW3208A |
TW3208C |
Wavelength(nm) |
800~1700nm |
Detector |
InGaAs |
Measurement Range (dBm) |
-70~+3 |
-50~+26 |
Uncertainty |
±5% |
Calibrated Wavelength(nm) |
850,1300,1310,1490,1550,1625nm |
Resolution(dB) |
0.01 |
Optical Connector |
FC(interchangeable SC,ST) / as well as 2.5mm universal |
Power Supply |
Alkaline Battery(3 AA 1.5V batteries) |
Battery Operating Time |
240 hours with 1.5V Battery(3) |
Operating Temperature(ºC) |
-10 ~ +60 |
Storage Temperature(ºC) |
-25 ~ +70 |
Relative Humidity |
0 to 95% (non-condensing) |
Dimension(mm) |
175x82x33 |
Weight(g) |
310 |
ACCESSORIES (1 set per unit) |
AC Adaptor / Charger( Internal or External), 2pcs Dry Batteries, 2pcs Batteries charger, Connector @ FC, SC, ST, Carry Case. |
