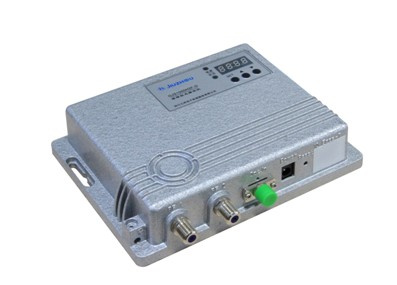

Optical Receiver with Optical Agc Gjs1000h2f-B

Name: Optical Receiver with Optical Agc Gjs1000h2f-B
Brand: China-Manufacturer-Directory.com
SKU: 716079805
Availability: InStock
Rating: 4.9 (59 reviews)

Supplier:	Sichuan Jiuzhou Electronic Technology Co., Ltd.
Price:	Negotiable/Piece
Min Order:	30/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	GJS1000H2F-B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

1GHz bandwidth FTTB application without return path
Optical AGC range -7-+1dBm, keeping 2*RF equal output over 100dBuv
RF amplification with GaAs technology ensures high output level but low distortion.
Embedded with microprocessor unit to monitor and control parameters.
LED numeric screen displays menu and parameters.
RF output level tunable through operation buttons below LED numeric screen.
RF Test Point (-20) is built.
Optical link C/N≥ 51dB, C/CSO≥ 61dB, C/CTB≥ 63dB.
LED numeric screen displays working parameters.
External power supply +12VDC

GJS-1000H2FA	Unit	Specifications
Optical
Wavelength	nm	1290~1580
Allowable Input Power	dBm	-7~+1
Optical AGC Range	dBm	-7~+1
Input Reflection Loss	dB	≥45
Connector Type	/	SC/APC or FC/APC
RF
Frequency	MHz	47~1000
Number of Outputs	-	2, female F connector
Output Level	dBμV	≥100 See Test Conditions (Dual port)
Return Loss	dB	≥14
RF Test Point	dB	-20 ±2, compared to RF output level.
Optical Link Performance
Frequency Response	dB	±1.5
C/N	dB	≥51
C/CSO	dB	≥61
C/CTB	dB	≥63
Test Conditions: 50-CH PAL-D signal, JIUZHOU GFS1310F-B 1310nm optical transmitter, optical receiver input power @ -1dBm, optical receiver with 6dB equalization.
Power Supply
External or Internal	/	External power supply.
Input Voltage	V	DC +12V (Power adapter is distributed along with optical receiver)
Mechanical
Dimensions	mm	154×106×31

We are professional CATV products manufactory, which stablished in 1958, we have 52 years of experience in developing and manufacturing CATV systems. Our sales network covers China, Southeast Asia, the Middle East, Europe, and the US.

Our product range includes:
1. Full DVB-C digital headend equipment/software/STB, and solution.
2. Full Gepon/EOC equipments, and solution.
3.1550/1310nm Optical euquipments.
4. Optical workstations, Nodes and receivers.
5. Optical devices and accessories.
6. RF modulators.
7. Trunk and line amplifiers.
8.5-1, 000MHz taps/splitters.
9. Satellite Dish antennas.
10. C/Ku band LNBs.
11. Coaxial and optical cables.

All operations at our 410, 000 square meter facility are ISO 9001 certified. 5600 employees, 100 R&D staff, and 500 engineers are ready to satisfy your requirements. We have an annual capacity of 2, 000, 000 terminal equipment and 80, 000 network equipment.
