Product Specifications
| Prod Model: |
VY0004 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter: |
0.7-400mm |
| Focal Length: |
+/-1% |
| Surface Quality: |
40-20 |
| Dimension Tolerance: |
+/-0.1mm |
| Shape: |
Single-lens |
| Material: |
Optical Glass |
| Type: |
Customizable |
| Coating: |
Ar,Hr,Ht |
Product Description

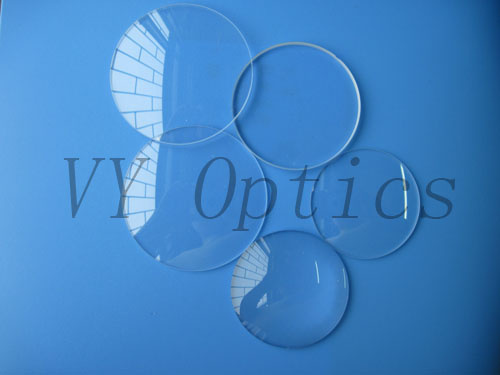

We manufacture kinds optical spherical lens professionally. Plano-Convex Lens is widely use in optical display systems, projection optics systems, imagining optical systems, and laser measurement systems. It is best use where conjugate point-- object distance, S or image distance S' is more than five times of the other. This lens is almost the most super form for both collimating a point source and focusing collimated light;
Plano-Concave Lens has a negative focal length and is typically used to cause a collimated beam to diverge as in a Galilean type beam expander or Telescope. Because the spherical aberration of the Plano-Concave is negative, it can be used to balance the aberration of other lenses. This lens is widely use in optical display systems, projection optics systems, imaging and laser measureemnt systerms;
Double-Convex Lens, also named Bi-Convex Lens, is most suitable where the object and image are on opposite sides of the lens and the ratio of the image and object (conjugate ratio) distances is between 0.2 to 5. It is used in beam expanders, . Projection optics systems, optical viewers etc;
We supply optical spherical lenses, include plano-convex spherical lens, plano-concave spherical lens, bi-convex spherical lens, bi-concave spherical lens, meniscus spherical lens, special spherical lens etc.
Specification of our plano-convex spherical lenses as follow:
*Material: BK7 or other materials
*Focal length: +/-1%
*Center thickness tolerance: +/-0.01mm
*Centration: 1 arc minutes
*Surface Figure: Lambda/2 at 633nm on plano side
*Surface quality: 40/20 stratch/dig
*Clear Apenture> 90%
*Chamfer Protective: 0.25mm at 45 degree typical
*Coating: Optional
| Range of diameter | Dia.0.7mm-Dia.400mm |
| Range of curve radius | R1.5-R∞ etc. |
| Tolerance of diameter | +/-0.1, +/-0.01, +/-0.005 etc. |
| Surface accuracy | λ , 1/2λ , 1/4λ , 1/10λ etc. |
| Tolerance of Thickness | +/-0.1, +/-0.05, +/-0.01 etc. |
| Centration | +/-2′, +/-1′ etc. |
| Aperture N | 5, 1 etc. |
| Irregularity ΔN | 2, 1, 0.5, 0.2 etc. |
| Surface quality | 60/40, 40/20, 20/10, 10/5 etc. |
VY Optics Photoelectric Technology Co., Ltd., specialized in manufacturing kinds of optical precision components and lenses. Through many years' hard work and positive innovation, we have became a optical company integrating lens design, production and sales.
Our company has strong production capacity, in possession of the domestically top production line and excellent workers, which mainly are composed of researchers and technicists of the Chinese Academy of Sciences, Changchun Institute of Optics and Fine Mechanics and Changchun University of Science and Technology, they are experienced and can produce wide range of optical articles. The prime products are spherical lens, windows, prisms, achromatic lens, cylindrical mirror, laser optical components, infrared optical components, various crystals and some other relative items. In addition, our company has independently developed a magnifier, microscope, telescope and kinds of conversion lenses. Mainly used in military, aerospace, industry, scientific, medical instrument, photoelectric device, optical communication and mechanical equipment and so on. 80% of our items are sold abroad, in the meantime we also cooperate with internal companies, we offer OEM service!
Over the years, with the concept of " integrity, innovation, quality first ", we constantly provide our clients with the best products and perfect service, sincerely welcome domestic and foreign customers to establish cooperation with us, creating a bright future in optical field!
