Product Specifications
| Prod Model: |

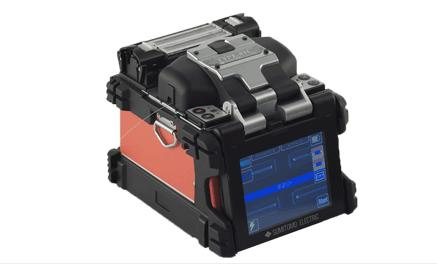

Sumitomo 81C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Fiber Optic Sensors |
Product Description
MAIN FEATURES:
· Downsized by 43% from conventional model
· 2.1kg weight with battery
· Ultra fast splicing(7sec. ) · Ultra fast heating(28sec. )
· G. 657 fiber auto splicing function
· IP52 rating and 76cm drop on 5 faces
· Automatic arc calibration
· Touch screen operation
· Universal clamp for 250µ M, 900µ M tight and loose buffer fiber
· User selectable heater clamp operation
· Support bi-directional splicing operation
· Equipped with onboard training video
· Upgrades software via internet
SPECIFICATIONS:
Material
Silica glass
Profile types
SMF (ITU-T G. 652), MMF (ITU-T G. 651), DSF (ITU-T G. 653), NZDSF (ITU-T G. 655), BIF (ITU-T G. 657), EDF
Fiber diameter
Cladding diameter: 80μ M~150μ M, Coating diameter: 100μ M~1, 000μ M
Applicable fiber or cable size
Up to ø 1, 000μ M
Drop cable (2.0× 3.1mm) Indoor cable
(2.0× 2.0mm)
Cleave length
5~16mm
10mm
Splice loss (typical)
SMF: 0.02dB, MMF: 0.01dB, DSF: 0.04dB, NZDSF: 0.04dB
Splicing cycle time (typical)
7sec. (Quick mode), 7.5sec. (SMF standard mode), 8sec. (Auto mode)
Heating cycle time (typical)
28sec.
Splice & Heat cycles
Approx. 200
Fiber view & magnification
Two CMOS cameras observation 320X (zoom: 700X) for X or Y single axis view, 88X for both X & Y dual axis view
Splicing programs
Max. 300
Heating programs
Max. 100
DC output
DC12V (for JR-6)
USB port
USB 2.0 (mini-B type)
Storage media
SD/SDHC memory card
AC input
100~240V, 50/60Hz (ADC-1430)
DC input
10~15V
Battery module
Li-ion 11.1V, 4, 600mAh (BU-11)
Electrode life
3, 000 arc discharges
PACKAGE CONTENTS (Standard Package)
1. Main unit TYPE-81C 1 PC;
2. Battery BU-11 1 PC;
3. Power supply ADC-1430 1PC;
4. Power cord PC-AC
1 PC;
5. Spare electrode ER-10 1 pair;
6. Cooling tray - 1 PC;
7. Operating CD manual - 1 PC;
8. Quick reference guide - 1 PC;
9. Carrying case with worktable CC-81 1 PC;
10. Hand strap - 1 PC;
11. USB cable - 1 PC
