Shenzhen Usource Technology Co., Ltd. >> Optical Transceiver, Module + Cable, 40g Qsfp

Optical Transceiver, Module + Cable, 40g Qsfp

Name: Optical Transceiver, Module + Cable, 40g Qsfp
Brand: China-Manufacturer-Directory.com
SKU: 764196015
Availability: InStock
Rating: 5 (90 reviews)

Supplier:	Shenzhen Usource Technology Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	40G QSFP
Markets:	North America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Package:	SFP
Module:	SFP Module
Active Optical Component:	Optical Transceiver
Transceiver:	SFP Transceiver
Connector:	LC Sc Single Fiber or Dual Fiber
Type:	Fiber Transceiver
Certification:	FCC
Condition:	New
Wiring Devices:	Compatible Cisco HP Juniper....

Product Description

Customize, OEM, ODM

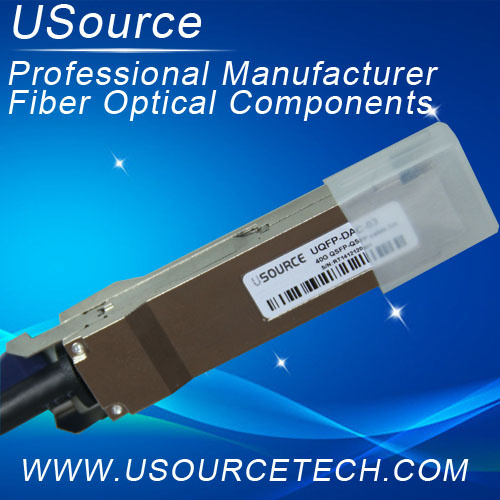

40G QSFP to QSFP Cable

Features

n     Hot pluggable
n     Power Supply :+3.3V
n     VSFF-8436 QSFP+ compliant
n   Support for multi-gigabit data rates :1.0 Gbps - 10.3125Gbps (per channel)
n   QSFP+ conforms to the Small Form Factor SFF-8436
n   4-Channel Full-Duplex Passive Copper Cable Transceiver
n   Copper link length up to 5m (passive limiting)
n   Maximum aggregate data rate: 41.25 Gps (4 x10.3125Gbit/s)
n   High-Density QSFP 38-PIN Connector

n Low power consumption: 0.02 W (typ.)
n I2C based two-wire serial interface for easy control and monitoring (management interface acc. SFF-8436)

Application

n   Infiniband transmission at 4ch SDR, DDR and QDR
n   10G/40Gigabit Ethernet
n   Data Centers
n   2, 4, 8, 10 Gigabit Fibre Channel
n   Switches, Routers, and HBAs

40G QSFP to QSFP DAC Cable Optical Gigabit Ethernet Switch:

Model	Description
UQFP-DAC-001	40GBASE-CR4 Direct Attach Cable, Passive, AWG30, 1m
UQFP-DAC-002	40GBASE-CR4 Direct Attach Cable, Passive, AWG30, 2m
UQFP-DAC-003	40GBASE-CR4 Direct Attach Cable, Passive, AWG30, 3m
UQFP-DAC-005	40GBASE-CR4 Direct Attach Cable, Passive, AWG24, 5m
UQFP-DAC-007	40GBASE-CR4 Direct Attach Cable, Passive, AWG24, 7m

High Quality:
Quality Policy of USource aims to produce and offer products and services with uniform and outstanding quality. The procedures for development, production and testing of our products are based on more than 10 years of experience in depth filtration and are compatible with internationally recognized standard methods. The end products of our customers are subject to very rigorous and precisely defined quality requirements and different regulations. As part of the overall manufacturing process, depth filtration has to produce safely reproducible and economic results.

Contact us, we will send you specifications and best price.
Tel: +86-755-23014563

To be a world-leading manufacturer in telecommunication, USource Technology is specialized in developing, manufacturing, and selling optical passive products, active products and subsystem. The impeccable quality management and expertise in optical communication development enable USource Technology to rapidly deliver marketing leading, high performance optical components and subsystems. The vertically-integrated business and good service enable the products from USource Technology exported to dozens of countries in the world.

Professional in fiber connection solutions in Telecom:

Passive products: Fiber Optic Patch Cord indoor and outdoor solutions, Field Assembly Connector, PLC Splitter, CWDM Mux Demux

Active products: Optical Transceivers, 10G Module/CWDM&DWDM Module/SFP Series/1X9 SFF Package, Media Converter

Customized products: USource has a professional technical team designing customized products to meet customers' special requirements.

Being honest and reputable, in persuit of mutual benefits, to provide excellent service.
