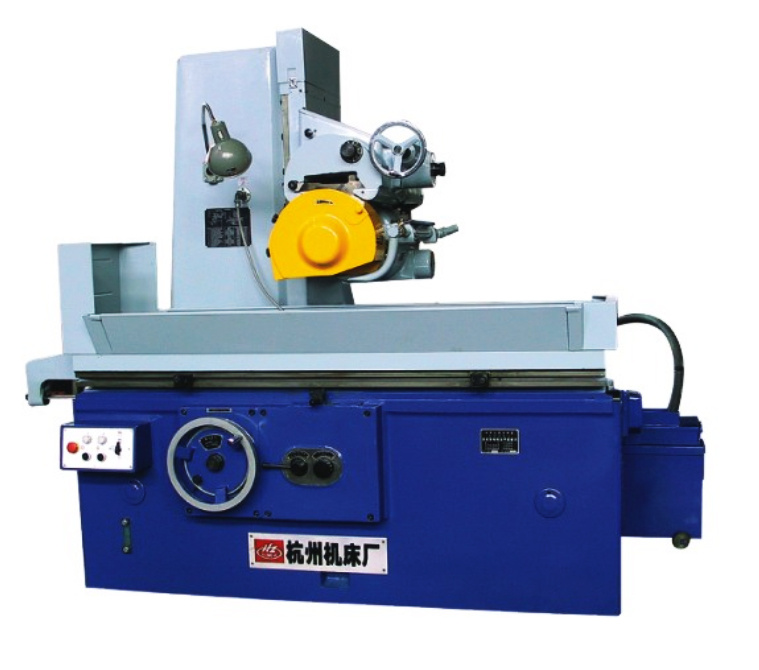

This surafce granding Machine tool has the following characteristics:
1.Grinding head layout with right column (relative to the operator).2.Smooth movement, low noise, low temperature rise.3.Plastic-sticking and reduced-grinding guide rail.4.Fast lifting, manual feed.5.Transverse automatic feeding, convenient operation.6.Automatic lubrication system.7.National standard of the plane grinding machine accuracy(GB/T4022-1983).
| Accessories(free) |
|
| electromagnetic chuck | 1 piece |
| grinding wheel balance mandrel | 1 set |
| grinding wheel | 2 sets |
| grinding wheel dresser(diamond drill bit not included) | 1 set |
| iron gasket for machine tool | 5 sets |
|
|
| Special Accessories(not free) |
|
| wheel balancing unit | 1 piece |
| precision sine flat plier(ZPQ150) | 1 piece |
| diamond grinding wheel cutter | 1 piece |
| Main Specification |
|
|
|
| working stand | working stand area(width*length) | mm | 200*630 |
| max grinding size(width*length*tall) | mm | 200*630*320 |
| Longitudinal travel | mm | 730 |
| operating rate | m/min | 2-20 |
| T-groove working surface (amount*width) | mm | 1*14 |
| Load of Worktable | kg | 157 |
| grinding head | distance from grinding wheel spindle to working stand | mm | 495 |
| grinding head transverse intermittent feeding amount | mm/ | 5-18 |
| wheel shindle speed | r/min | 1440 |
| vertical feed(hand movement per graduation) | mm | 0.005 |
| fast speed | m/min | 0.4 |
| cross feed(hand movement per revolution) | mm | 2 |
| motor-driven cross feed(continuous) | m/min | 0.5-1.8 |
| chopper | mm | 5-18 |
| grinding wheel size(outer diameter*width*inner diameter) | mm | Φ350*32*Φ127 |
| motor power | total motor power | kw | 7.68 |
| grinding motor power | kw | 5.5 |
| working accuracy | Machining surface parallel to the base face | mm | 300;0.005 |
| surface roughness | um | Ra0.63 |
| machine weight | net weight | kg | 2800 |
| gross weight | kg | 3500 |
| dimensions(length*width*height) | mm | 2400*1150*2050 |
| Packing size (length*width*height) | mm | 2750*1740*2250 |
