Huzhou Oria Elevator Co., Ltd. >> Oria Sightseeing Elevator Shopping Mall Passenger Elevator Observation Elevator S--1

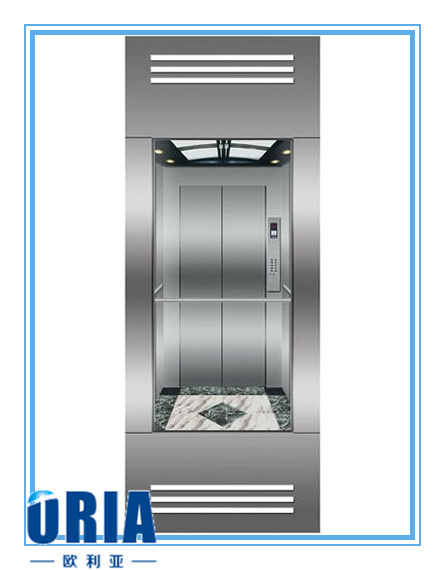

Oria Sightseeing Elevator Shopping Mall Passenger Elevator Observation Elevator S--1

Name: Oria Sightseeing Elevator Shopping Mall Passenger Elevator Observation Elevator S--1
Brand: china-manufacturer-directory.com
SKU: 751112265
Availability: InStock
Rating: 4.9 (108 reviews)

Supplier:	Huzhou Oria Elevator Co., Ltd.
Price:	US $ 15000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	S--1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cabin Material:	Stainless Steel/Glass
Floor Material:	PVC/Marble
Door Material:	Stainless Steel/Glass
Type:	with Machine Room
Speed:	1.00 - 2.00m/s
Capacity:	500-1000kg
Persons:	6 - 10
Shape:	360 Degree Circular
Number Of Sides:	Four
Driving Type:	AC Elevator

Product Description

Specifications
1.Brand: ORIA
2.Speed:1.0-1.75m/s
3.Load:1000kg
4.GB7588-2003 Carry out the standard
5.ISO9001:2008 certification

The advantageous performances
1.Energy saving
It uses 32bit PLC or computer control systems and AC variable frequency transformer technology, not only performance, fully functional and reliable but also with the same speed compare to standard AC voltage regulation, saving about 30% of electricity, elevator operation is very smooth and comfortable.

2.Noble and elegant
Process using the latest technology,the best decoration material,combined with elegant color with innovative designs to create the era of instant beauty.

3.Cozy and smooth
Designed by computer the ideal speed curve, according to the human body to adapt to the requirements to the desired state.AC motor vector control through precise adjustment to the lift runs very smooth and comfortable.

4.Safe and reliable
The advanced PLC or 32-digit micro-computer control technology considers the trouble possibilities of the elevators under any conditions to the greatest extent. It sets various anti-fault devices and emergency facilities, the most advanced variable frequency lift door machine systems as well.

Functions List of Elevator
· with/without drive operation
· Automatic return to the base landing
· Automatic landing
· Call cancel when begin reverse-running
· Cage door opening when elevator arrives the floor where there is a hall call
· Door opening / closing call indication
· Indication in the cage when hall calling
· Self-Learning of shaft data
· Full load non-stop operation
· Overload alarm, Car Operating panel display: "OL"
· Alarming device
· In-car and m/r inter talk device
· Light and fan auto-control
· Elevator Locking Device
· Door closing time auto delaying
· False-call canceling
· Emergency Light
· Driven over current protection
· Door opening / closing time-limited protection
· Rope sliding protection
· Door Nudging
· Trouble self-diagnosis and memory
· Over speed falling protection
· Top/Bottom landing overpass protection
· Inspection Operation
· Floor display
· Light curtain protection with mechanical safety edge
· Fireman's return switch

Load(kg)	Person	Speed(m/s)	Door Opening(mm)	Cabin Size(mm)	Shaft Size(AH*BH)	Pit Depth	Head Room Height(mm)
450	5	0.50	700*2100	1150*1100	1700*1800	≥ 1500	≥ 3500
630	8	1.0-1.5	800*2100	1300*1250	1850*1900	≥ 1500	≥ 3500
800	10	1.0-1.75	800*2100	1500*1300	2050*1950	≥ 1500	≥ 3500
800	10	1.0-1.75	900*2100	1500*1300	2050*1950	≥ 1500	≥ 3500
1000	13	1.0-2.5	900*2100	1600*1500	2150*2150	≥ 1500	≥ 3500
1250	16	1.0-2.5	1000*2100	1750*1600	2300*2250	≥ 1500	≥ 3500
1600	21	1.0-2.5	1100*2100	2050*1700	2600*2450	≥ 1500	≥ 3500
We can also desgin according customer requirement for Gearless Sightseeing Elevator

Function

Car Fan
Fire man switch
Pre-opening doors
Arrival Gong in Car(COP)
Emergency light in Car
Antomatic return to parking floor from any floor
Overload Protection: If the load of elevator is over weight,the overload indicating lamp will light and warming.The elevator won't move if the door have not closed.
Emergency Iiiumination of Car: If the power of illumination is broken,the emergency lamp inside car will be lighted automatically.
Function of Energy Saving: If the elevator is not operated,the illumination and fan inside car will be autoomatically turned off.
Anti Nuisance: If exceeding 3 interior calling inside car when elevator load is below setting value,the system will delete all calling and re-select floor.
Arrival Chime: when the elevator runs before stop at the floor,the clock will be sounded to remind passenger that the elevator will stop at the floor.
Internal Communication: If the elevator is in abnormal state,the persons in car,at car roof and bottorm pit can communicate with machine room or control room.
Inspection and Diagnosis for Faults: When fault occurs,the system of elevator can automatically diagnose the causation of fault,and store the information into systerm for maintenance personnel call.
Self-Diagnosis Function of Call Button: When the call button in an floor is on for long time,the system will neglect the call request of this floor.
Over-Speed Protection: When the running speed exceeds rated speed due to fault,the electrical and mechanical protection functions will be started to prevent car running from excess of up and down range

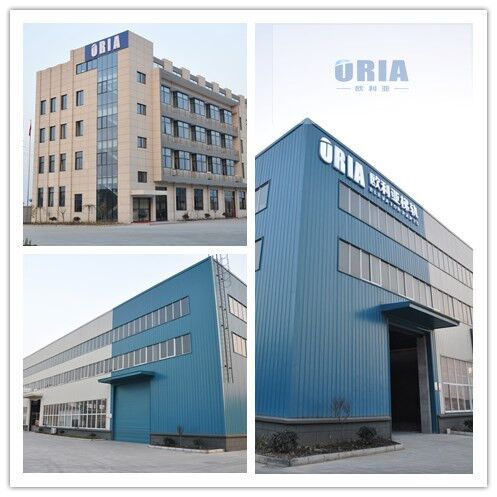

Company profile

ORIA elevator is located in the Yangtze River Delta Economic Zone, a great business town - Zhili, which is near the scenic Tai Lake. The enterprise is near Shanghai, Zhejiang and Anhui G50 highway, G318 and the Grand Canal with convenient transportation. The floor space is more than 25 thousand square meters, and the total output is 15,000 units/ year. With a standardized manufacturing center, a research centers, a remote service center, and a test tower platform, the company develops well.

ORIA comes from our company's value: Original, Rapid, International, and Asian.

Our company supplies different kinds of products. High quality and favoroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
