Product Specifications
| Prod Model: |
KAIDE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Flange Standard: |
GB, DIN, ANSI/Asme, JIS, etc |
| Tap Location: |
Corner Taps, Flange Taps, Radius Taps |
| Sensor: |
Tube/Flange |
| Type: |
Coriolis Mass Flow Meter |
| Accuracy: |
?à0.6-1% |
| Measuring Media: |
Liquid |
| Measuring Principle: |
Mechanics |
| Size: |
DN100-500 |
| Main Application: |
Corrosive Liquid/Gas |
Product Description

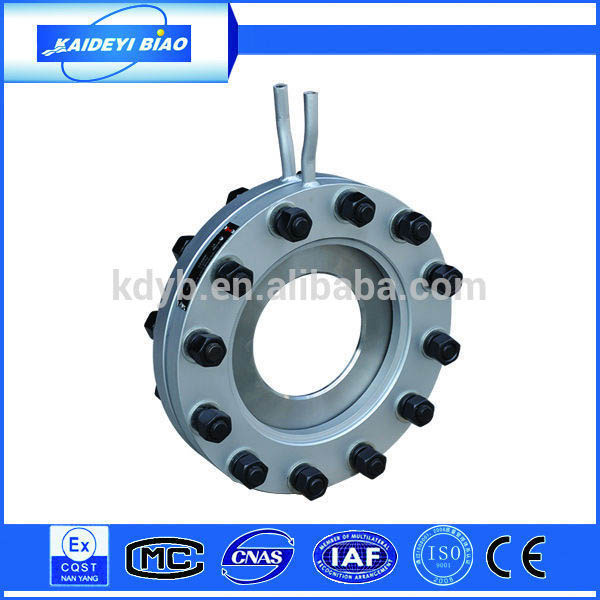

Introduction--Orifice Plate Flow Meter
Standard orifice plate is a kind of standard throttling device with the most models. They are widely used in the measurement of many kinds of fluid, especially gaseous fluid. The structure of orifice plate varies with the difference of nominal pressure, nominal diameter and pressure tapping mode. According to the main pressure tapping mode, standard orifice plate can be classified as corner taps(include annular chamber bore taps and single bore taps) orifice plate, flange taps orifice plate, radius taps(D and D/2 taps) orifice plate.
Specifications--Orifice Plate Flow Meter
Pressure tapping mode: Corner taps(annular chamber bore taps, single bore taps), flange taps, radius taps(D and D/2 taps)
Operating conditions: D: Larger than 12.5mm, DN: 50~1600mm
Caliber(mm): 50~2600(larger size available for special order)
Accuracy ± 1.5%~± 0.5%
Pressure(MPa): No more than 42
Connecting mode: Flange connection, Welding
Kaifeng Kaide Flow Instrument Co., Ltd., established in 2002, is a high-tech enterprise specialized in the R&D and manufacture of flow instruments. Located in the base of Chinese flow instrument - Kaifeng City, we have full access to the most advanced technology and thus intend to deliver our high-quality service internationally with great confidence.
At present, we are mainly dealing in Electromagnetic Flowmeters, Vortex Flowmeters, Turbine Flowmeters and some kinds of Throttling Devices. As we put a lot of concern into quality control, we attained ISO9001: 2000 QMS (Quality Management System) certification at a very early time.
Our commitment has won us a lot of reputable domestic customers from Chinese oil giant - Zhongyuan Oil Field to famous research institute of Wuhan University of Technology. They all established a pleasant and long-term business relationship with us. We also expanded our service to overseas markets and plenty of foreign customers visited our company to bond us in technology and business. We have been providing OEM service for many domestic and overseas customers.
"Accuracy and attitude" is our motto. We believe that, with high-quality products and services, long-term relationships are always available between worldwide guests and our company. If you are interested in any of our products, please do not hesitate to contact us. We will do our best to meet your requirements.
