Xueyou Union (Wuhan) Technology Ltd. >> Original Huawei Quidway 02352335 Ethernet 8 Port Poe Switch S2700-9tp-Pwr-Ei

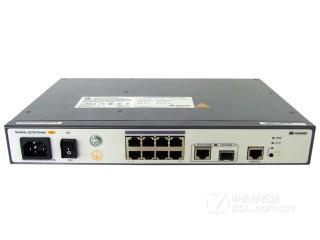

Original Huawei Quidway 02352335 Ethernet 8 Port Poe Switch S2700-9tp-Pwr-Ei

Name: Original Huawei Quidway 02352335 Ethernet 8 Port Poe Switch S2700-9tp-Pwr-Ei
Brand: china-manufacturer-directory.com
SKU: 709387915
Availability: InStock
Rating: 4.5 (58 reviews)

Supplier:	Xueyou Union (Wuhan) Technology Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Prod Model:	S2700-9TP-PWR-EI
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Port Structure:	Modular
Transfer Rate:	10/100Mbps
Firewall:	Firewall

Product Description

Our strengths:
1. 100%brands new original huawei network product.
2. Competitve price with excellent quality.
3. Favorable discount
4. Fast delivery and best service.
5. One year warranty
6. Huge stock.

We provide original HuaWei S2700 Series switch
S2700-9TP-EI-AC
S2700-9TP-SI-AC
S2700-9TP-PWR-EI
S2700-18TP-EI-AC
S2700-18TP-SI-AC
S2700-26TP-EI-AC
S2700-26TP-SI-AC
S2700-26TP-PWR-EI
S2700-52P-EI-AC

The S2700 series enterprise switches (S2700s) are next-generation energy-saving intelligent 100M Ethernet switches. The S2700 utilizes cutting-edge switching technologies and Huawei Versatile Routing Platform (VRP) software to meet the demand for multi-service provisioning and access on Ethernet networks. It is easy to install and maintain and can be used in a variety of enterprise network scenarios. With its flexible VLAN deployment, comprehensive security and QoS policies, and energy-saving technologies, the S2700 helps enterprise customers build next-generation IT networks

Item	S2700-EI	S2700-SI/S2710-SI
100M port	S2700-9TP-SI/S2700-9TP-EI/S2700-9TP-PWR-EI: 810/100Base-TX S2700-18TP-SI/S2700-18TP-EI: 1610/100Base-TX S2700-26TP-SI/S2700-26TP-EI/S2700-26TP-PWR-EI: 2410/100Base-TX S2710-52P-SI/S2700-52P-EI/S2710-52P-PWR-SI/S2700-52P-PWR-EI: 4810/100Base-TX
1000M port	S2700-9TP-SI/S2700-9TP-EI/S2700-9TP-PWR-EI: 1GE Combo S2710-52P-SI/S2700-52P-EI/S2710-52P-PWR-SI/S2700-52P-PWR-EI: 2100/1000Base-X,21000Base-X Others: 2GE Combo
MAC address table	8 K MAC address entries Manual creation and deletion of MAC address entries Aging time of MAC address entries Disabling MAC address learning on an interface or aggregation group Limit on the number of MAC addresses learned on an interface Blackhole MAC address entries
VLAN	4 K VLANs, complying with IEEE 802.1Q Port-based VLAN assignment
VLAN	MAC address-based VLAN assignment QinQ	N/A
QoS	Port-based rate limiting and flow-based rate limiting Four queues of different priorities on each port Mapping between 802.1p priorities and queues SP, WRR, and SP+WRR algorithms
QoS	Traffic classification based on the source MAC address, destination MAC address, source IP address, destination IP address, Layer 4 port number, protocol type, VLAN ID, Ethernet protocol, and CoS Flow-based priority marking and packet redirection	N/A
IPv6 features	IPv6 host Static IPv6 routes IPv6 ACLs MLD v1/v2 snooping	IPv6 host Static IPv6 routes
Multicast	IGMP v1/v2/v3 snooping Multicast load balancing among member ports of a trunk Port-based rate limiting and traffic statistics for multicast packets
Port mirroring	1:1 and N:1 port mirroring
Port mirroring	Traffic mirroring	N/A
Security	802.1x authentication and limit on the number of users on an interface Dynamic ARP detection IP source guard	N/A
Security	AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC Binding of the IP address, MAC address, interface, and VLAN Port-based rate limiting Port isolation, port security, and sticky MAC Packet filtering Packet filtering based on MAC addresses Suppression of multicast, broadcast, and unknown unicast packets Limit on the number of learned MAC addresses CPU defense	Port isolation Suppression of multicast, broadcast, and unknown unicast packets CPU defense
Surge protection	All service ports have a surge protection capability of 6 KV, which can be increased to 15 KV when using additional surge protection devices.
Device management	Stacking Auto-Config CLI-based configuration Remote configuration using Telnet SNMP V1/V2/V3 RMON HGMP v2 SSHv2 Web-based device management GVRP
Operating environment	Operating temperature: 0OC–50OC (long term); -5OC–55OC (short term) Relative humidity: 10%–90% (non-condensing)
Power supply	AC: Rated voltage range: 100 V to 240 V AC, 50/60 Hz Maximum voltage range: 90 V to 264 V AC, 50/60 Hz
Power supply	DC: Rated voltage range: –48 V to –60 V DC Maximum voltage range: –36 V to –72 V DC Note: PoE-support switches do not use DC power supplies.	N/A
Dimensions (W x D x H)	S2700-9TP-EI/SI: 250 mm x 180 mm x 43.6 mm S2700-9TP-PWR-EI: 320 mm x 220 mm x 43.6 mm S2700-18TP-EI/SI, S2700-26TP-EI/SI, S2710-52P-SI/S2700-52P-EI: 442 mm x 220 mm x 43.6 mm S2700-26TP-PWR-EI/S2710-52P-PWR-SI/S2700-52P-PWR-EI: 442 mm x 420 mm x 43.6 mm
Weight	S2700-9TP-EI<1.4kg S2700-9TP-PWR-EI<2.5kg S2700-18TP-EI<2.4Kg S2700-26TP-EI<2.4kg S2700-52P-EI<3kg S2700-26TP-PWR-EI<4kg (without power supply) S2700-52P-PWR-EI<4.3Kg (without power supply)		S2700-9TP-SI<1.4Kg S2700-18TP-SI<2.4kg S2700-26TP-SI<2.4kg S2710-52P-SI<3kg S2710-52P-PWR-SI<4.3Kg (without power supply)
Power consumption	S2700-9TP-EI<12.8W S2700-18TP-EI<14.5W S2700-26TP-EI<15.5W S2700-52P-EI<38W S2700-9TP-PWR-EI<154W (PoE: 124W) S2700-26TP-PWR-EI<808W (PoE: 740W) S2700-52P-PWR-EI<880W (PoE: 740W)		S2700-9TP-SI<12.8W S2700-18TP-SI<14.5W S2700-26TP-SI<15.5W S2710-52P-SI<38W S2710-52P-PWR-SI<880W(PoE: 740W)
