Baoding Xinhai Plastic Sheet Co., Ltd. >> Our Classical Normal Print PC Plastic Building Material

Our Classical Normal Print PC Plastic Building Material

Name: Our Classical Normal Print PC Plastic Building Material
Brand: china-manufacturer-directory.com
SKU: 773325115
Availability: InStock
Rating: 4.4 (62 reviews)

Supplier:	Baoding Xinhai Plastic Sheet Co., Ltd.
Price:	US $ 1.39/Square Meter
Min Order:	50/Square Meter
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	XH-Z-S--21
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Raw Material:	100% Vergin Sabic Polycarbonate Resin
Standard Color:	Clear,Grass Green,Lake Blue,Blue,Brown,Opal or Cus
Guarantee:	100% Bayer Material Polycarbonate Imported
Application:	Skylight/Greenhouse/Carport/Awning/Polycarbonate D
Board Thickness:	1mm-20mm
Certification:	ISO9001:2008
Width:	1220mm,1560mm,1820mm,2100mm
Size:	According to Transportation
Light Transmission:	Reach 18% -82%
Package:	PE Film
Color:	Transparent
Material:	PC

Product Description

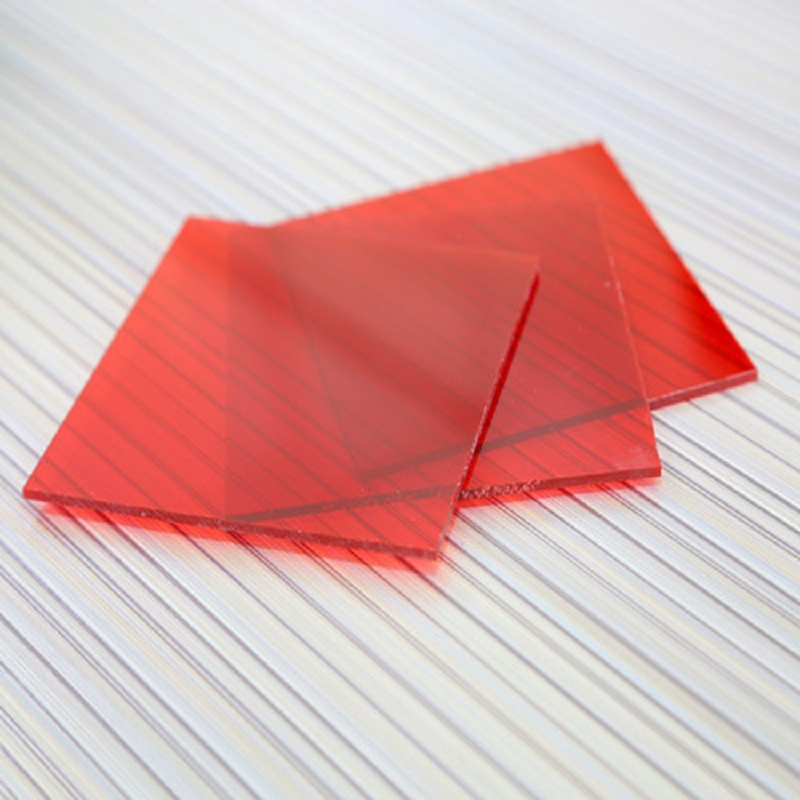

Polycarbonate Solid Sheet
Thickness:1.2mm-15mm
Standard width: 1220mm,1560mm,1820mm,2100mm
Standard Length: not limited
10 years warranty
ISO9001:2008 certification

Color Available	Width		Thickness	Weight		Min Curving Radius	Min Span Accordingly(mm)
	(mm)		(mm)	(kg/m2)		(mm)
Clear Transparent Opal Bronze/Brown bule lake bule green Light Green yellow red white grey	1220 1560 1820 2100 Customized		1.5	1.8		270	540
			2.0	2.4		360	720
			2.4	2.88		430	860
			3.0	3.6		540	1080
			3.8	4.56		680	1360
			4.0	4.8		720	1440
			5.0	6		900	1800
			6.0	7.2		1080	2160
			8.0	9.6		1450	2900
			9.0	10.8		1620	3240
			10.0	12		1800	3600
			12.0	14.4		2160	4320
Technical data:
Characteristics		Unit			Data
Impact strength		J/m			2.1
Light Transmission		%			50-85
Specify Gravity		g/m			1.2
Coefficient Thermal Expansion		mm/mºC			0.065
Service Temperature		ºC			-40ºC---+120ºC
Heat conductivity		W/m2ºC			3.0-5.0
Flexural strength		N/mm2ºC			100
Modulus of elasticity		Mpa			2400

Application :

1. Roofing skylight for office building,department store, hotel, stadium, school
2. Soundproof shields on express ways
3. LED diffused, Advertising lamp boxes, sign board.Telepohne booths
4. Anti-riot shield, bullet resistant material, Bank ATMs.
5. Agricultural greenhouses, zoos, botanical gardens.
6. Swimming Pools roofing/cover/sheet
7. Lighting for corridors, balcony, passages and subway entries, walkways.
8. Walls, roofs,windows,screens,shower enclosure.
9. Instrument and machine windscreen

Packing and Delivery

Packaging	Both sides with PE film,logo on the pe film.Other package are available based on customer's requirment
Delivery	within 7-10 working days once we received the deposit.
Payment	L/C, T/T, Western Union; 30% deposits; 70% balance before delivery.
Capacity for 20'container	2.1m5.8m4mm		548sheet
	2.1m5.8m6mm		373sheet
	2.1m5.8m8mm		283sheet
	2.1m5.8m10mm		228sheet
Capacity for 40'container	2.1m5.8m4mm	1096sheet	2.1m11.8m4mm	548sheet
	2.1m5.8m6mm	746sheet	2.1m11.8m6mm	373sheet
	2.1m5.8m8mm	566sheet	2.1m11.8m8mm	283sheet
	2.1m5.8m10mm	456sheet	2.1m11.8m10mm	228sheet

Baoding Xinhai Plastic Sheet Co., Ltd. is a manufacturer of polycarbonate sheet, plastic sheet, hollow polycarbonate sheet, solid PC sheet, multiwall PC sheet, embossed PC sheet and etc. Xinhai company has well-equipped production lines and strong technical force.

With good quality, reasonable prices and stylish designs and fast delivery, XINHAI products are extensively used in building construction material, such as carport, tunnel, skylights, greenhouse, restaurant and other industries.

Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.

We welcome all customers from all walks of life to contact us for future business relationships and mutual success.
