F30 Biometric Access Control Systems and Software
Introduction:
F30 is an innovative biometric fingerprint reader for access control applications, offering unparalleled performance using an advanced algorithm for reliability, precision and excellent matching speed. The F30 features the fastest commercial-based fingerprint matching algorithm and HF high-performance, high-image quality optical fingerprint sensor. The device offers the flexibility to be installed standalone or with any third party panel that supports 26-bit Wiegand. The user can be enrolled by administrator card when the device works as a standalone access control. TCP/IP and RS485 are available that the device can be used in different network. TCP/IP communication makes sure the data transition between the device and the PC can be easily done within several seconds. F30 can be used in tough environment because of the IP54 protection index and the wide range of operating temperature.
Features:
. Fingerprint reader with durable and highly accurate HF optical sensor
. 1 touch a-second user recognition
. Stores 1500 templates, 10, 000 cards and 30, 000 transactions
. Reads Fingerprint and/or Card
. Optional integrated smart card reader
. Built-in Serial and Ethernet ports
. Tamper-proofs switch and alarm outputs
. Request-to-exit and alarm contacts
. Real-time 1-touch data export 3rd party hosted & non-hosted applications
. Audio-Visual indications for acceptance and rejection of valid/invalid fingers
| Fingerprint Capacity | 2200 templates |
| ID card Capacity | 10, 000 |
| Transaction Capacity | 100, 000 |
| Hardware Platform | ZEM600 |
| Communication | RS485, TCP/IP, USB-host |

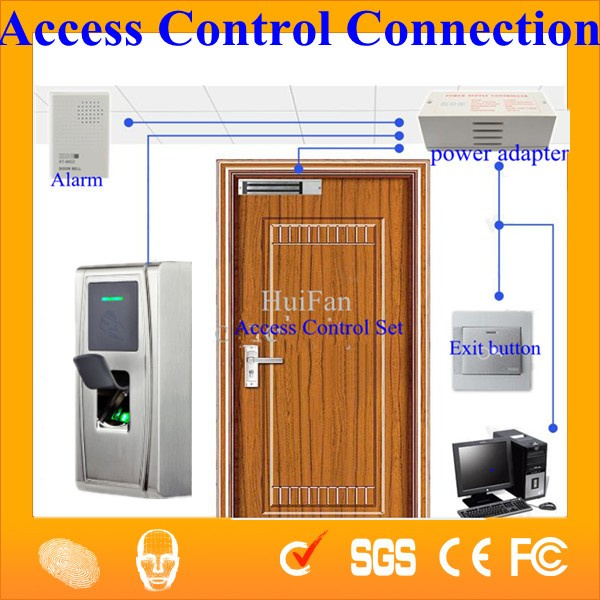

| Access Control Interface for | 3rd party electric lock, door sensor, exit button, alarm |
| Wiegand Signal | Input & Output |
| Stardard Access Control Function | Time Zone, Group, Multi-identification, Duress mode, Anti-passback |
| Optional Functions | Mifare, external USB keypad |
| Display | N/A |
| Power Supply | 12V DC |
| Operating Temperature | -10 - 60 celsious degree |
| Operating Humidity | 10%-90% |
| Index of Protection | IP65 |
Chongqing Huifan Technology Co., Ltd was established in 2005, leading provider of security, electronic products and software development services, including:
1.Facial recognition time attendance and access control (face capacity is from 400 to 100000)
2.Fingerprint/RFID card time attendance and access control ( fingerprint capacity is from 1500 to 50000 templates)
3.Fingerprint/RFID card/password door lock
4.Fingerprint USB scanner ( U.R.U fingerprint scanner widely used in Nigeria Presidential Election)
5.Fingerprint briefcase and luggage
6.Proximity card reader for time attendance & access control
7.Handheld mobile POS terminal ( barcode reader, stock inventory, government, super mall, financial organization...)
Here are some successful projects we offered for customers:
1.Domestic:Chongqing Public Police department, banks and school projects.
2.Public traffic system in Iran
3.Police patrol system in Malaysia
4.Government attendance and access control system in Georgia
5.President election in Nigeria6.Argentina medical system etc
6.South Africe 2010 World Cup, 4stars hotel lock system
We are looking forward to the chance of establishing relationship with your organization for mutual benefits.Please feel free to contact us for more information.
