Product Specifications
| Prod Model: |
OTH9.9- OTH40L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

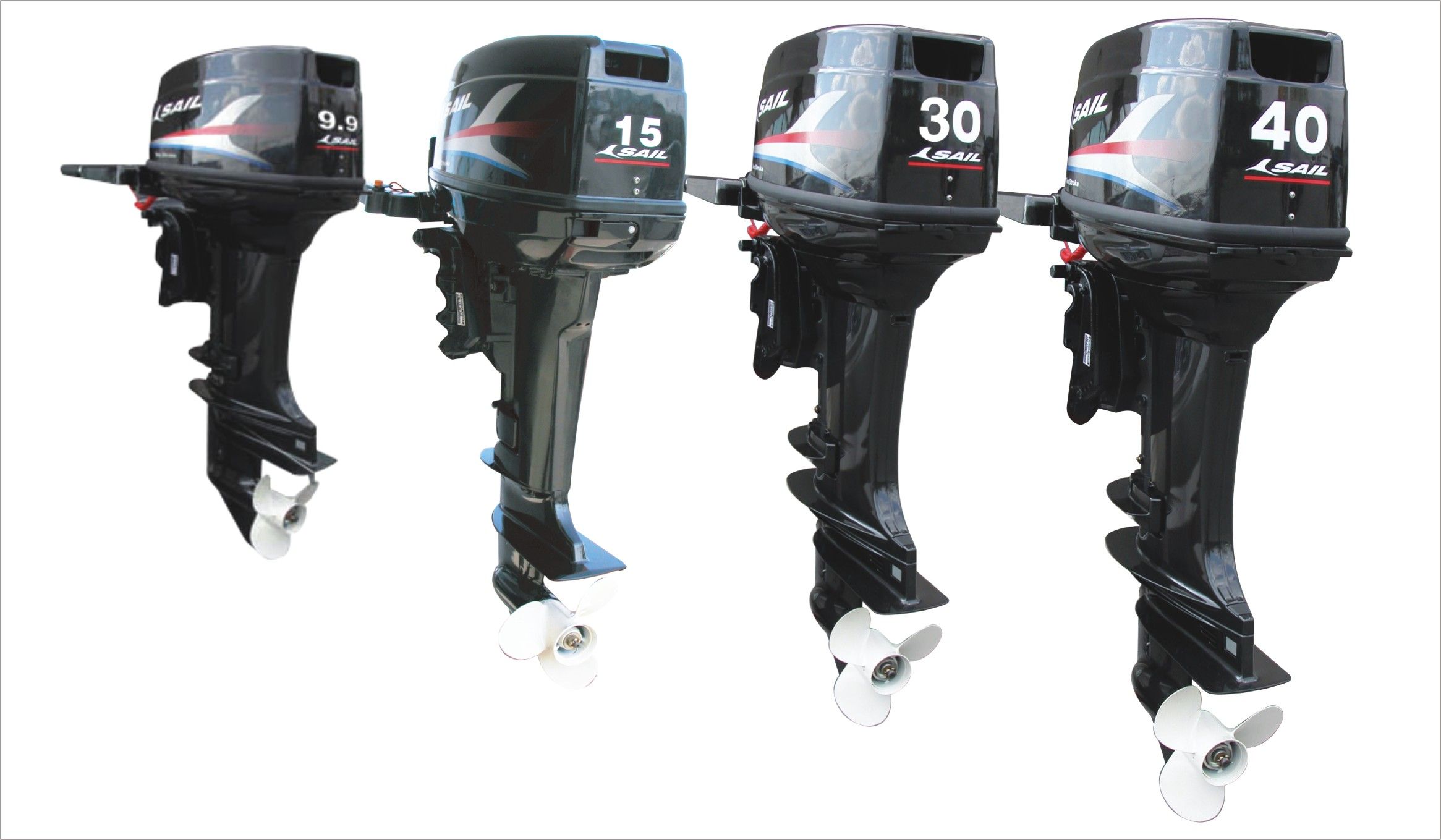

SAIL professional outboard engine 2-stroke 9.9HP, 15HP, 30HP, 40HP. Available on electric start and remote, Offer 2 years warranty
Condition: New
Engine: 2 Stroke
Fuel Type: Gasoline
Cylinders: 2
Engine Position: Outboard
Engine size range: 9.9HP-40HP
Control tiller: Remote control / tiller
Starting: Manual start or electric
Engine speed: 4500-5500rmp
Fuel tank: 24L
Spare parts: 2% parts with each motor
Warranty 2 years
Certificate: CE, ISO9001: 2000
MODELS:
| OTH9.9
| OTH15
| OTH30
| OTH40
|
Max. Output
| 9.9HP/7.3KW
| 15HP/11.00KW
| 30HP/20.5KW
| 40HP/29.4KW
|
Full Throttle Operating Range
| 4500-5500rpm
| 4500-5500rpm
| 4500-5500rpm
| 4500-5500rpm
|
Stroke
| 2
| 2
| 2
| 2
|
Cylinder
| 2
| 2
| 2
| 2
|
Displacement
| 246mL
| 246mL
| 703mL
| 703mL
|
Bore X Stroke
| 56*50mm
| 56*50mm
| 80*70mm
| 80*70mm
|
Length X Width X Height
| 873*332*1040mm
| 873*332*1040mm
| 1073*402*1350mm
| 1073*402*1350mm
|
Weight
| 36kg
| 36kg
| 73.6kg
| 73.6kg
|
Gear Ratio
| 2.08(27:13)
| 2.08(27:13)
| 2(26:13)
| 2(26:13)
|
Gear Shift Position
| F-N-R
| F-N-R
| F-N-R
| F-N-R
|
Ignition System
| CDI
| CDI
| CDI
| CDI
|
Cooling System
| Water-cooling
| Water-cooling
| Water-cooling
| Water-cooling
|
Starting System
| Manual
| Manual
| Manual
| Manual
|
Control System
| Tiller control
| Tiller control
| Tiller control
| Tiller control
|
Lubrication System
| Mixed fuel & oil
| Mixed fuel & oil
| Mixed fuel & oil
| Mixed fuel & oil
|
Capacity Of Fuel Tank
| 24L
| 24L
| 24L
| 24L
|
Recommended Oil
| Regular lead-free gasoline
| Regular lead-free gasoline
| Regular lead-free gasoline
| Regular lead-free gasoline
|
Recommended Lubricant
| 2 stroke outboard engine lubricant
| 2 stroke outboard engine lubricant
| 2 stroke outboard engine lubricant
| 2 stroke outboard engine lubricant
|
Recommended Gear Oil
| Hypoid gear oil-SAE#90
| Hypoid gear oil-SAE#90
| Hypoid gear oil-SAE#90
| Hypoid gear oil-SAE#90
|
Recommended Propeller
| J
| J
| 3*12-1/4"4*8"~3*11-1/4"*14"
| 3*12-1/4"4*8"~3*11-1/4"*14"
|
Others size models: Suzhou sail motor., Ltd is one rofessional company on outboard motor, inflatable boat, generator, water pump. Location: Suzhou, China.
SAIL gasoline generator and water pump since 1995.
SAIL outboard motor since 2003.
SAILSKI inflatable boat since 2005.
SAIL outboard motor:
4 stroke outboard motor:
2.5HP/4HP/5HP/6HP/8HP/9.8HP/9.9HP/15HP/20HP/25HP and spare parts;
2 stroke outboard motor:
2.5HP/2.6HP/3.5HP/4HP/5HP/8HP/9.8HP/9.9HP/15HP/18HP/
20HP/25HP/30HP/40HP/60HP and spare parts.
SAILSKI Inflatable boat:
PVC or Hypalon fabric made inflatable tube/hull/keel, foldable aluminum floor, marine plywood transom.
CE approved/Hot sell models:
2.7m, 3m, 3.3m, 3.6m, 3.8m, 4.3m, 4.7m, 5m, 5.5m.
Others size models:
2m, 2.3m, 2.5m, 6m, 6.5m, 7m, 8m or customization size.
SAILSKI RIB boat:
Fiberglass hull/deck/transom, PVC or Hypalon fabric made inflatable tube.
RIB boat dinghy without console models:
2.3m, 2.5m, 2.7m, 3m, 3.3m, 3.6m, 3.9m.
RIB Boat with Console models:
3m, 3.3m, 3.6m, 3.9m, 4.3m, 4.8m, 5m, 5.2m, 5.5m, 5.8m, 6.8m, 7m, 7.6m.
At least 2-3 new style RIB boats will be developing every year.
SAIL Gasoline Generator:
1kw, 2kw, 2.5kw, 3kw, 4kw, 5kw, 6kw, 7kw.
SAIL Portable Inverter generator(frame type):
INF1500X 1kw, EP1600I 1kw, EP2800I 2kw, INF3800X 3.2kw. (220V~240V/50Hz only).
SAIL Gasoline water pump:
2inch, 3inch, 4inch, 6inch.
Professional technology, Guarantee quality, Fast service, Reasonable cost.
Welcome to inquire and order.
SAIL to better life!
