Xinhongxiang Optoelectronics (Shenzhen) Co., Ltd. >> Outdoor Building LED Display Screen P20 Outdoor LED Matrix Displays

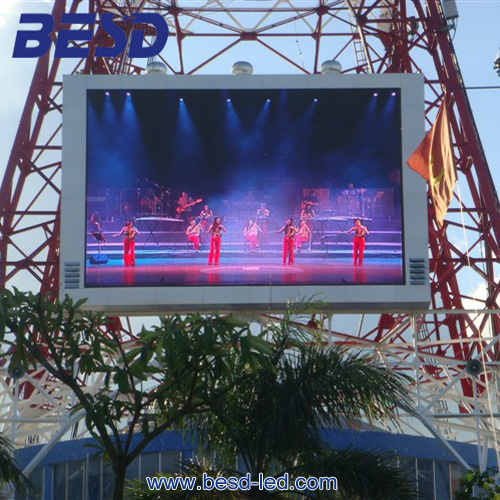

Outdoor Building LED Display Screen P20 Outdoor LED Matrix Displays

Name: Outdoor Building LED Display Screen P20 Outdoor LED Matrix Displays
Brand: china-manufacturer-directory.com
SKU: 690210995
Availability: InStock
Rating: 4.9 (40 reviews)

Supplier:	Xinhongxiang Optoelectronics (Shenzhen) Co., Ltd.
Price:	US $ 545-555/Square Meter
Min Order:	5/Square Meter
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	BESD-PH20-LDY002
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pixels:	20mm
Pixel Pitch(Mm):	20
Pixel Density(Dots/Sqm):	2500
LED Encapsulation:	DIP
LED Type:	LED Type
Module Dimension(Mm):	Module Dimension(Mm)
Module Resolution(Dots):	16x8
Best Viewing Distance(M):	20m~250m
Max Brightness(CD/Sqm):	6500
Display Type:	LED Video Display
Tube Chip Color:	Full Color
IP Rating:	IP65
Pixel Configuration:	1R, 1G, 1B
Certification:	UL
Pixel Pitch:	20mm
Display Function:	Video Display
Application:	Advertising
Scanning Mode:	Static Scan
Average Power Consumption:	350W / m²
Pixel Density:	2500DOT/M&Sup2

Product Description

1. CE, RoHS, IP approval
2. Relatively low cost
3. Stable capability
4. High brightn

information	pixel pitch	20mm
	pixel density	Real : P20; virtual pixel: p10mm
	pixel compsition	DIP456
	LED composing	2R1G1B
	LEDs Brand	Red: Optotech(China Taiwan)
		Green: Silan(China mainland)
		Blue: Silan(China mainland)
	LEDs Wavelength	Red: 625nm-630nm
		Green: 520nm-525
		Blue: 470nm-475nm
Viewing	White Balance	x=0.33 Y=0.33 5600° K(adjustable up to 9000° K)
	Brightness	> 6000cd/sq. m
	Brightness Uniformity	Luminance Discrepancy< 5%
	Colors	16777216
	Grey Level	256 levels
	Slot between Neighboring Modules	< 1mm
	Recommended Viewing Angle(H/V)	110° /65°
	Recommended Viewing distance	20m
	Malfunction pixel Rate	< 0.02%
Dimension	Module Dimension	320mm*160mm
	Module Resolution	16mm*8mm
	Cabinet Resolution	1024mm*768mm
	Module Quantity of each cabinet	3modules*6 modules
Power	Input Voltage	110± 10V, 220± 10V AC, 50/60Hz
	Max Power Consumption	900 W/sq. m.
	Avg. Power consumption	600 W/sq. m
Ambient Conditions	Operating Temperature	-20~+60 ° C
	Operating Humidity	10%~90%RH
	Ingression Protection Grade	IP65
Processing	Scanning Mode	Static scan, Constant current
	Refresh Frequency	180Hz_600Hz, Adjustable
	Signal Input	DVI, Composite Video for Live Video
	Supported Networking	Through LAN/ WAN, RS232/RS485
	Controller	PC based
	Software	Linsn LED studio
Other	Life Span	More than 100, 000h
Other	Weight	About62kg/sq. m

Xinhongxiang Optoelectronics (Shenzhen) Co., Ltd. As one of the most leading LED Products manufacturer in Shenzhen China, covering 10 000 square meters, register capital high up to 30 million CNY, is one high-tech enterprise focus on researching, producing, sale and service of LED products, . Nowadays Xinhongxiang owns fully automatic production lines, independent purifying workshop, researching center, most advanced production and inspection equipments, which guarantee the quality of the LED products. All the products have exported more than 100 countries, such as USA, Mexico, Canada, Brazil, Chile, Argentina, Panama, Colombia, Germany, France, Sweden, Italy, Spain, Russia, Poland, Turkey, Ukraine, South Africa, Egypt, Saudi Arabia, Singapore, Thailand, India etc

Developing History:

From 1996 to 2010, Xinhongxiang Optoelectronics (shenzhen) Co., Ltd, mainly involved in LED encapsulation and LED Display.

Since 2010, owe to enlarge the company scale and build up self-owned brand, Xinhongxiang focus on LED lighting, Shenzhen BESDLED Co., Ltd focus on LED display, business involved in indoor and outdoor LED Encapsulation, LED Display and LED Lighting Products.

LED Display:

Full Color Indoor and outdoor LED Display, single or dual basic color LED signs, LED Curtain, LED Dance Floor, Rental LED Display,

LED Lighting:

LED Bulb, LED Tube, LED Spotlight, LED DownLight, LED Panel Light, LED Street etc,

Comparing with many of LED Manufactures, xinhongxiang owns the following advantages to be your best choice for long term cooperation partner.

1, Fully automatic production lines

Xinhongxiang owns the entire LED manufacturing line, from original Semiconductor to LED chip, then assemble to LED display and LED lighting products.

2, Advanced production equipment

SMD/DIP die bolder, SMD/DIP wire Bolder, Auto Machine of Pouring Glue for SMD/DIP LED, Spectrum and Color Separation Machine, LED oven, Wave solder, Reflow soldering, Spectrum electronic and color tester, temperature and humidity programmable tester, luminance meter etc. Are equipped for our LED Product production.

3, Many Certification approved to clear up the trade barriers

CE, FCC, UL, RoHS, CCC, ISO9001: 2000 etc are obtained.

4, Strong R&D Team

Xinghongxiang absorb many talents, with more than 500 staffs, and including more than 100 engineers and technician, which paves the way for R&D for new products and excellent sales service

5): After-Service,

Principles: Response in time, solve problem ASAP and ensure the use.

Period: During warranty period, free of all maintenance charges;

After Warranty, only charge the material cost.

All the life time, Technology support is free.
