Product Specifications
| Prod Model: |
AC725V-4.125MVA-RL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
AC725V |
| Frequency: |
50Hz/60Hz |
| Apprent Power: |
4125kVA |
| Resistive Load: |
3300kw |
| Inductive Load: |
2475kvar |
| Insulation Grade: |
F Class |
Product Description

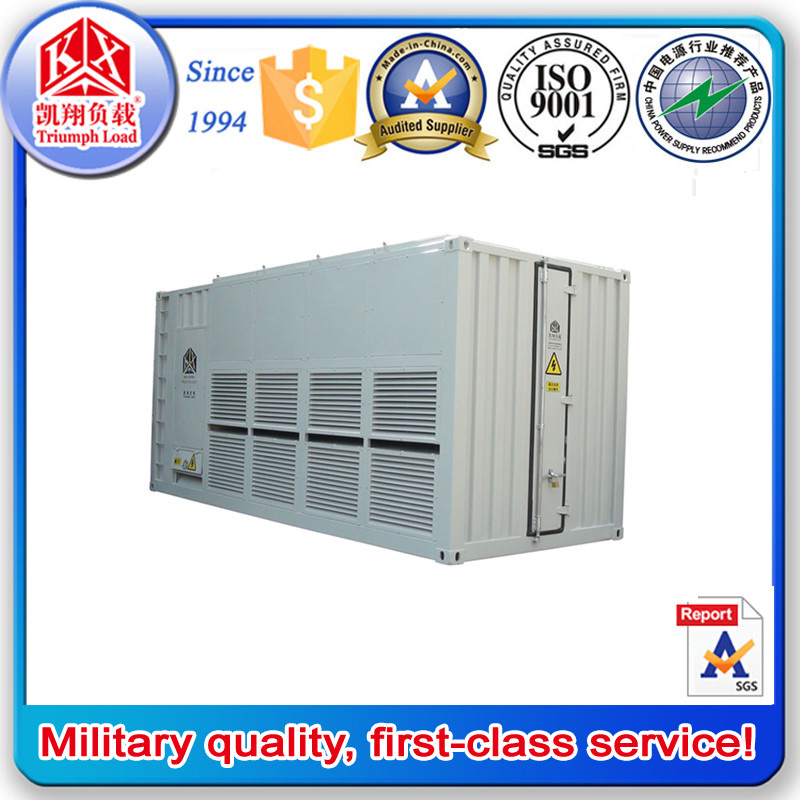

Outdoor Container Type Resistance-Inductance Load Device
1.AC725V 4125KVA Outdoor Container Type Resistance-Inductance Load Device Application
Large generator system testing in ocean engineering, drilling facilities,ship construction etc field
Factory testing for generator, static voltage characteristic test, speed characteristic test;
Marine generator overload protection test,parallel operation test,reverse power and reverse current protection test
Assist shipyard in mooring test,sea trial test
Assist with the acceptance of the vessel generator test
Eliminate the carbon deposition of generator
As the generator loading system
Periodic running test for standby generator
UPS inspection and maintenance
Ship battery charging/discharging system testing
The acceptance of new system and testing of servicing equipment
2.AC725V 4125KVA Outdoor Container Type Resistance-Inductance Load Device Working Environment
Altitute:≤2500m
Temperature:-10°C~50°C
Humidity:≤95%RH
Working Mode:Continuous work(>6hours continuous long-term work per day)
3.AC725V 4125KVA Outdoor Container Type Resistance-Inductance Load Device Technical Specifications
Load System Parameters |
AC725V 4125KVA |
Rated Voltage
and Frequency |
AC 3 phase 3 wire,725V,50/60Hz;AC 3 phase 3 wire,420V,50/60Hz |
MaximumLoad Power |
Apprent Power:4125KVA Resistive Power:3300KW
Inductive Power:2475Kvar |
Load Resolution |
Resistive Load:100KW,200KW,400KW,600KW,600KW,600KW,800KW 7Steps
Inductive Load:25Kvar,50Kvar,100Kvar,100Kvar,200Kvar,200Kvar,400Kvar,600Kvar,800Kvar 9Steps |
Power Factor |
0.8-1 |
Load Accuracy (per file) |
± 5% |
Load Accuracy (whole) |
± 3% |
Display Accuracy |
0.5 |
Working Power |
AC 3 phase 4 wire,380V/50Hz |
Wire Connection |
Connected by copper bar |
Display Mode |
LED multi-functional meter display voltage and current |
Working Environment Parameters |
Insulation Class |
F |
Insulation Resistance to Earth |
≥5MΩ |
Protection Grade |
IP55 |
Working Mode |
Continuous working |
Chassis Construction |
Container package, with up to the top of the ladder, with inlet and
outlet grilles and door protection |
Enclosure |
Container type,with a ladder, air inlet and outlet with mesh enclosure
and protection door |
Transportation |
Hoisting, there are lifting lug in top of casing |
Chassis Size |
Approximately 6058mm × 2438mm × 2591mm (L × W × H) |
Weight |
Approximately 15000kg |
Work environment parameters |
Workplace |
Coastal areas, outdoor work |
Operating Temperature |
- 25 ºC ~ + 6 0 ºC (lower limit of the instrument's temperature-10 ºC) |
Relative Humidity |
≤ 95% |
Altitude |
≤ 2500m |
Atmospheric pressure |
86 ~ 106kPa |
4.Why choosing us
The earliest and most professional manufacturer of AC/DC Load Bank in China, dedicated to this industry for more than 20 years.
The most patent technology and scientific research awards gainer in China.
Advanced detection method and strict inspection procedure build the qualified quality.
Customized production meet the individual requirement.
Prompt delivery & excellent after sales service.
Cooperate with many well-known enterprise, offer OEM and ODM service to world famous brands.
Certified with China Classification Society (CCS) and ISO9001:2008 Quality Certificate.
Triumph Load is the first brand in the emergency power supply test & maintenance industry in China.
