Outdoor Fix Installation Poster LED Display with High Brightness Series detail specification :
| item | P3 | P4 | P5 | P6 |
| Pixel Pitch: | 3mm | 4mm | 5mm | 6mm |
| Pixel Density: | 111111 dot /m2 | 62500 dot /m2 | 40000 dot /m2 | 27777dot/m2 |
| Brightness: | ≥3000CD/m2 | ≥3000CD/m2 | ≥5000CD/m2 | ≥5000CD/m2 |
| LED Configuration: | SMD2020 | SMD2020 | SMD2727 | SMD2727 |
| Viewing Angle: | 120 | 120 | 120 | 120 |
| Refresh Rate: | 960HZ | 960HZ | 960HZ | 960HZ |
| IP Rating(F/B): | IP65 | IP65 | IP65 | IP65 |
| Module size: | 192*96 mm | 128*128mm | 160*160mm | 192*96mm |
| Module resolution: | 64*32 dot | 32*32 dot | 32*32 dot | 32*16 dot |
| Cabinet size: | 888*1600 mm | 894*1606 mm | 800*1600 mm | 768*1604 mm |
| LED Display Size: | 768*1344 mm | 768*1280 mm | 800*1280 mm | 768*1344 mm |
| Cabinet resolution: | 256*488 dot | 192*320 dot | 160*256 dot | 128*224 dot |
| Cabinet weight(approx): | 55KG | 57 KG | 57 KG | 57 KG |
| Max.Power consumption: | 900W/sqm | 720W/sqm | 800W/sqm | 900W/sqm |
| Ave.Power consumption: | 390W/sqm | 210W/sqm | 280W/sqm | 300W/sqm |
| Gray Scale: | 13 bit | 13 bit | 13 bit | 13 bit |
| Display Scale: | 16.7 M | 16.7 M | 16.7 M | 16.7 M |
| Operating temperature: | -20ºC to +60ºC | -20ºC to +60ºC | -20ºC to +60ºC | -20ºC to +60ºC |
| Operating Humidity: | 10-90% RH | 10-90% RH | 10-90% RH | 10-90% RH |
| Lifetime: | 100,000Hours | 100,000Hours | 100,000Hours | 100,000Hours |
| Environmental: | Outdoor | Outdoor | Outdoor | Outdoor |

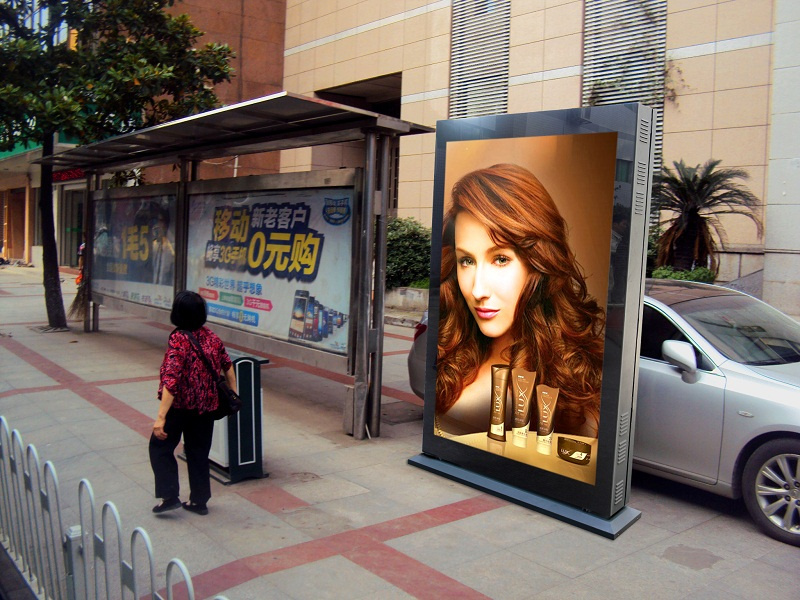

This Poster LED Display with Wifi , 3G /4G intelligent management core modules inside, it can change advertisement any place , any time .
Multi LED Display operation
LED Display Feature
With the best LED industrial waterproof and ultraviolet-proof SMD 3 in 1 technology to make a super wide viewing angle and a better surface evenness and stability.
RGB deep gray processing to show any color.
Support point correction function, ensure the consistency of the color and the brightness in the process of use.
Inner fixed reinforcement plate, tensile and shockproof, auto heat dissipation, make the operating life 10 years.
Accurate, shortcut, flexile installation, can be applied to any different installation environment.
With the protection rating of IP65, face any bad weather.
Complete series, customized to satiny any requirements of customers.
With the professional aviation plug as the connectors ensure the quality
and safety.
With the high quality raw material, mature process and scale production,
the quality is ensured.
Warranty:-
We guarantee all our displays, modules, parts for two full years. During this time, we will replace or amend all our goods for free if there is something wrong with them. We provide lifetime maintenance and charge only for the raw materials. We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory. We also provide the operation manual, software, test report and so on. Any associated CAD drawing on how to fix up the display and some other expert suggestion will be provided.
Technology Training
We provide the technology training for free, which contains the operation training and maintenance training in the factory.
We will send our engineers to your country by negotiation.
