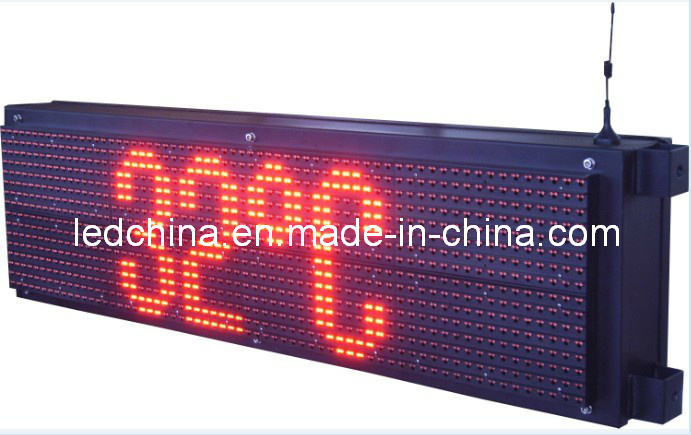

Outdoor Red Color LED Scrolling Display

Name: Outdoor Red Color LED Scrolling Display
Brand: China-Manufacturer-Directory.com
SKU: 708220785
Availability: InStock
Rating: 4.5 (110 reviews)

Supplier:	Shenzhen Seny Technology Co., Ltd.
Price:	US $ 355/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	P10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty:	Two Years Warranty After Shipping
Tube Chip Color:	Single Color
IP Rating:	IP65
Pixel Pitch:	10mm
Display Function:	Text Display
Average Power Consumption:	350W / m²
Pixel Density:	10000 dot / m²
Scanning Mode:	1/4 Scan
Display Type:	LED Dot Matrix Display
Application:	Advertising
Certification:	FCC
Pixel Configuration:	1r

Product Description

Outdoor Red Color LED Scrolling Display
1. Energy saving.
2. Competitive price.
3. Superior Uniformity.
4. We can expand the size of the LED display according to our requirement based on the cabinet size.
5. Having good lightening accordance and no mosaic.
6. Any LED in each pixel can be respectively repaired, which reduce the cost of the display maintenance.
7. Good heat emission capability.
8. Environmental-friendly.

Technical Parameters
S/N	Item	Technical Parameters
LED Parameters
1	Item Name	LED Type	Brightness	Wave Length	H/V Visual Angle
2	Red LED	DIP346	520mcd	620-630nm	110°/50°
Module Specifications
1	Pixel Pitch	10mm
2	Pixel Configuration	1R
3	Unit Module Size	320mm x 160mm
4	Module Resolution	32 x 16 pixels
5	Pixel Density	10000 dots/m2
Cabinet Specifications
1	Cabinet Size(W X H X D)	1920mm x 480mm x 165mm
2	Cabinet Resolution(W X H)	192 x 48 pixel dots
3	Module Quantity(W X H)	6 x 3 pcs
4	Cabinet Materials	Standard cabinet
Whole Screen Specifications
1	Display Size	W1.92m x H0.48m total 0.9216
2	Resolution of whole screen(W X H)	192 x 48 pixel dots
3	Cabinet Quantity	1pc
4	Screen Brightness	≥3500cd/
5	Driving Mode	1/4 scan
6	Max Power Consumption	230W
7	Average Power Consumption	185W
8	Screen Weight	45kg
9	Display Colors	Red color only
10	Frame Frequency	≥60Hz
11	Refresh Frequency	≥600Hz
12	Screen Life-span	≥100,000 hours
13	Blind Spot Rate	<1/10000
14	Protective Scale	IP65
15	Screen Plainness	<±1mm
16	Power Supply Mode	AC220±10% 50Hz/AC110±10% 60Hz
17	Environment Temperature & Humidity	Temperature:-20ºC~+60ºC Humidity:10%~90% RH
18	Control Mode	Asynchronous control

Shenzhen Seny Technology Co., Ltd. is a professional manufacturer of LED display screens, located in Shenzhen of China, found in 2009.

We specializes in all types of LED display screens, including indoor and outdoor, mono color, bi-color, RGB full-color LED displays. As one of the professional LED Displays manufacturers in China, we combine design, production, technical support, marketing, installation and after-sales service together so as to meet the demands of market, make every client satisfied.

Our LED displays have been widely used in a variety of sites like railway station, bank, hospital, office building, outdoor advertising board, airport, post office, plaza and so on. They play an important role for enterprises' Spreading and service convenience, and become more and more popular in every corner of the world.

Wishing we can build up long-term and reliable business relationship in near future. Contact us today for more information!
