Outdoor Security CCTV IR Waterproof LED Array Camera (BE-ALP)
| Price: |
US $ 30.9-45.1/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal,Money Gram,Western Union |
Product Specifications
| Prod Model: |
BE-ALP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Television Standards: |
PAL/ NTSC |
| IR LED: |
2PCS of ¢42 IR LED |
| IR Distance: |
60m |
| Lens: |
2.8-12mm Manual Zoom Lens |
| Sync System: |
Internal |
| Usable Illumination: |
0.01lux/F2.0 |
| IR Power On: |
CDS Auto Control |
| Dimension: |
275(W) X97(H) X82(D)Mm |
| Weight: |
1400g |
| Warranty: |
2 Years |
| Type: |
CCTV Camera |
| Feature: |
Waterproof / Weatherproof |
| Technology: |
Infrared |
| Kind: |
Manual Focus Lens |
| Sensor: |
CMOS/CCD |
| Style: |
Array LED Camera |
| Horizontal Resolution: |
600/700/800/1000 Tvl |
Product Description

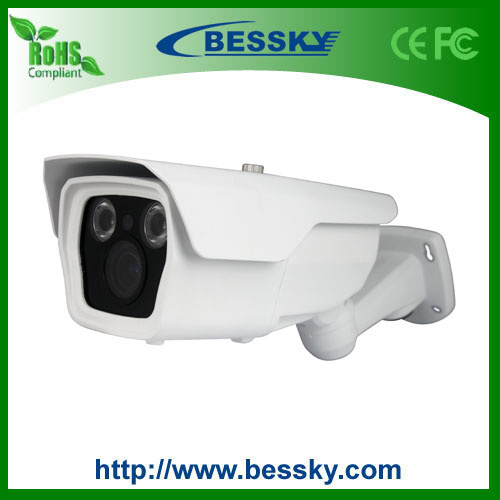

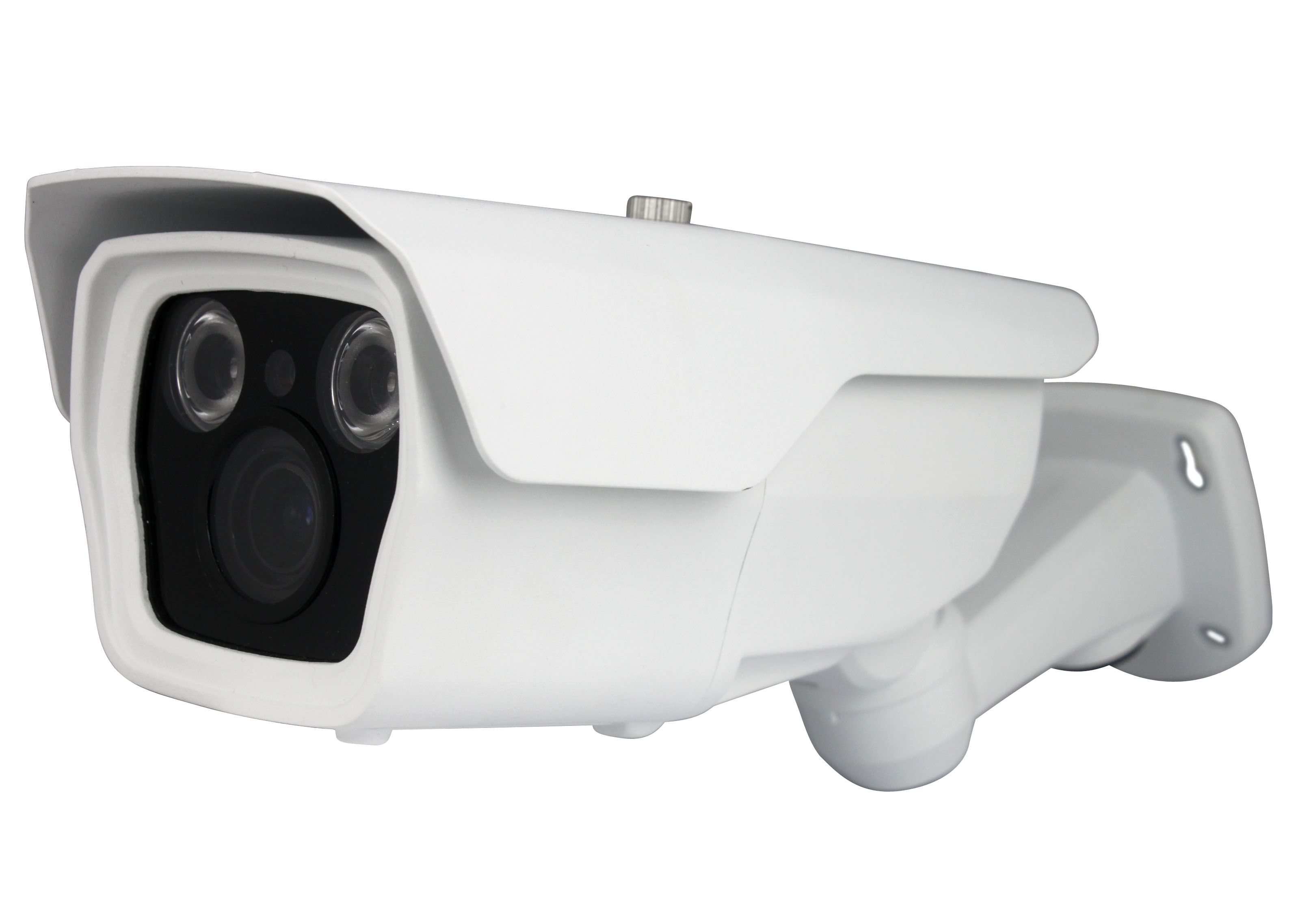

Outdoor Security CCTV IR Waterproof LED Array Camera (BE-ALP)
Feature:
1/2.8,1/3,1/4 Sony CCD/CMOS;
420-800TVL(Low Illumination, DWDR, OSD, DNR, PM, MD);
IR LED: ¢42X2PCS;
IR Range:60M;
Water resistance: IP66;
Lens: 2.8-12mm Manual Zoom Lens;
2 years warranty;
Picture:
|
Specification: |
|
|
|
|
|
|
|
Model No. |
BE-ALP70 |
BE-ALP70S |
BE-ALP100C |
BE-ALP80M |
BE-ALP80C |
BE-ALP60 |
|
Image Sensor |
1/3"Sony |
1/3"Sony |
1/3"CMOS |
1/3"CMOS |
1/4"CMOS |
1/3"Sony |
|
ICX673BK CCD |
ICX811AK CCD |
PC1099 |
PC3089 |
MT9V139 |
ICX639BK CCD |
|
Horizontal Resolution |
700TVL, Low Illumination, DWDR, OSD, DNR, PM, MD |
700TVL, Low Illumination, DWDR, OSD, DNR, PM, MD |
1000TVL |
800TVL |
800TVL |
600TVL, Low Illumination, DWDR, OSD, DNR, PM, MD |
|
Pixels |
PAL: 976 (H)×494(V) |
PAL: 976 (H)×582(V) |
962 (H)×504(V) |
762 (H)×504(V) |
PAL: 720 (H)×576(V) |
PAL: 795 (H)×596(V) |
|
NTSC : 976 (H)×582 (V) |
NTSC : 976 (H)×582 (V) |
NTSC : 720 (H)×480 (V) |
NTSC: 811 (H)×508 (V) |
|
Television Standards |
PAL/ NTSC |
|
IR LED |
2PCS of ¢42 IR LED |
|
IR Distance |
60m |
|
Lens |
Lens: 2.8-12mm Manual Zoom Lens |
|
Sync System |
Internal |
|
Usable Illumination |
0.01Lux/F2.0 |
|
IR Power On |
CDS Auto Control |
|
S/N Ratio |
≥65dB (AGC OFF) |
≥54dB (AGC OFF) |
|
Gamma Correction |
0.45 |
|
Video Output |
Composite Signal (1.0Vp-p, 75Ω) |
|
Scanning System |
PAL: 625 Lines, 50 Field/Sec; NTSC: 525 Lines, 60 Field/Sec |
|
Electronic Shutter |
Auto: PAL 1/50-1/100,000Sec; NTSC 1/60-1/100,000Sec |
|
Operation Temperature |
-10°C ~ +50°C, RH: 95% Max |
|
Storage Temperature |
-20°C ~ +60°C, RH: 95% Max |
|
White Balance |
Auto |
|
Power Supply |
DC12V |
|
Dimension |
275(W) x97(H) x82(D)mm |
|
Weight |
1400g |
Established in 2003, Shenzhen Bessky Technology Co., Ltd. is a high-tech enterprise with integration of R&D, manufacture and sales of surveillance equipments, specializing in DVR, CCTV Camera including Dome Camera, Weatherproof Camera, Speed Dome Camera, Box Camera, All in one camera, IP Camera and Wireless Camera and DIY Kit. Our products have been widely applied in banks, power industry, transportation, public security, stores, factories and enterprises, institutions and communities and other fields.
We have strong technical support and qualified professionals. They have advanced technical and interpersonal skills, which guarantee the reliable quality, the improvement and the innovation of our products.
Guided by our principle of " Quality is the first, sincerity is the most ", we work hard to ensure full customer satisfaction. We closely monitor the entire manufacturing process from start to finish. Every product is tested and checked by our in-house technicians for excellent quality. Our products are exported to many countries and regions, including America and Europe. To expand our international market share, we sincerely welcome you to contact us for more information.
Wish our efforts can provide you with the most satisfying service.
