Product Specifications
Prod Model: |
UZK-AE |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Usage: |
Liquid |
Product Description

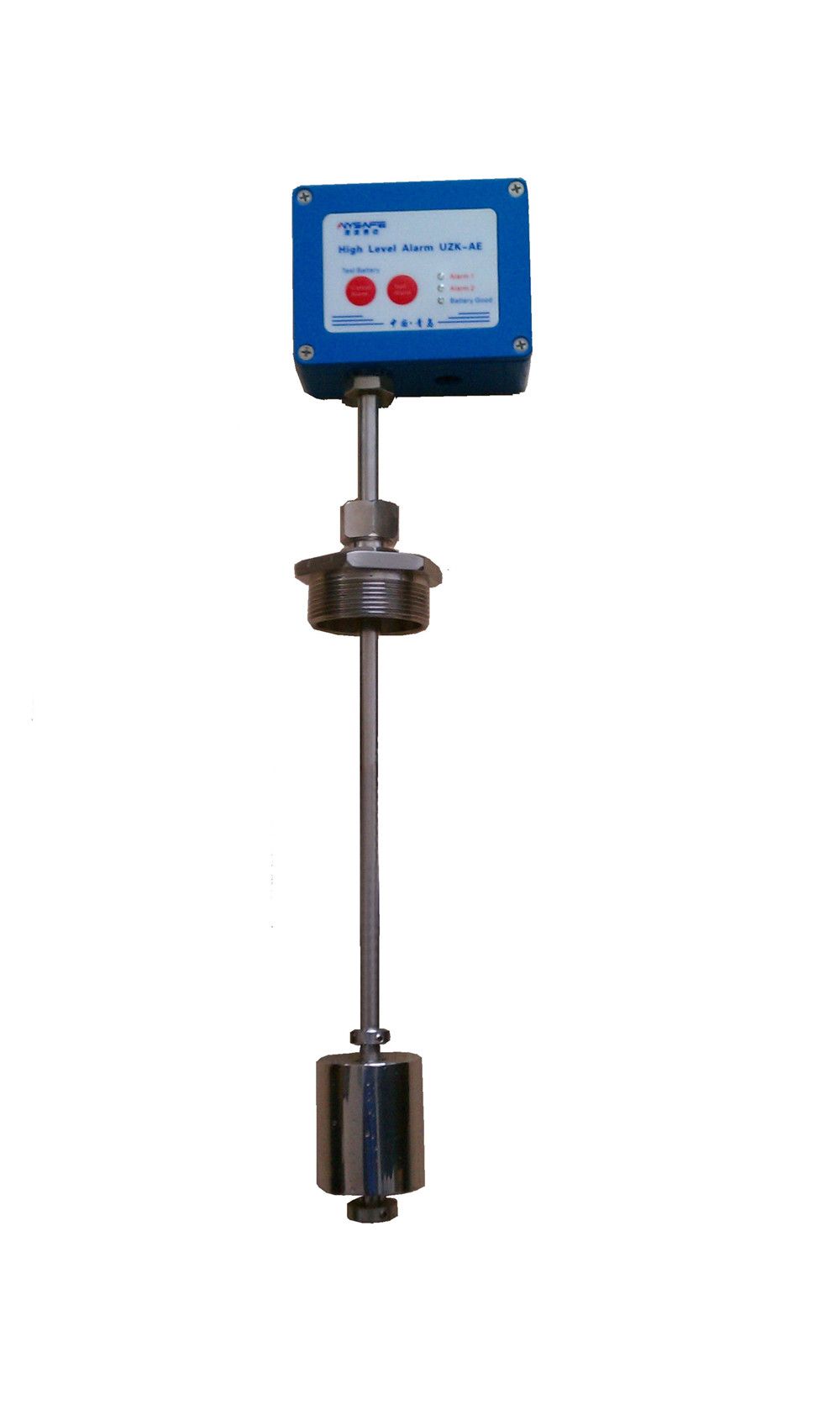

Overflow Alarm for Mobil Gas Station provides an audible and visible alarm for monitoring levels of liquids. It can be directly mounted on a fuel tank to provide a warning of a near full tank level. Alternatively the alarm indicator may be remotely located from the sensor. The powerful audible alarm can be heard over the sound of the pumping equipment. The High Level Alarms are weather proof and can be mounted in wet environments.
Specifications:
Battery: 3VDC (2XAA)
Alarms: Audible and visible alarms
Alarm Volume: >90dB
Operation Temperature: -40º C to +60º C(-40º Fto +140º F)
Sensor: Piezoelectric sensor
Certification: ExiaIIBT4Ga
Features & Benefits
Low battery alarm.
Adjustable sensor level.
It has a continuous self-check and alert feature to ensure the system is working properly.
A standard 2 inch BSP fitting provided for mounting. Optional mounting fittings are available upon request
