XK-OCT1 Overhead Crane with PLC Training Device
1. Product overview

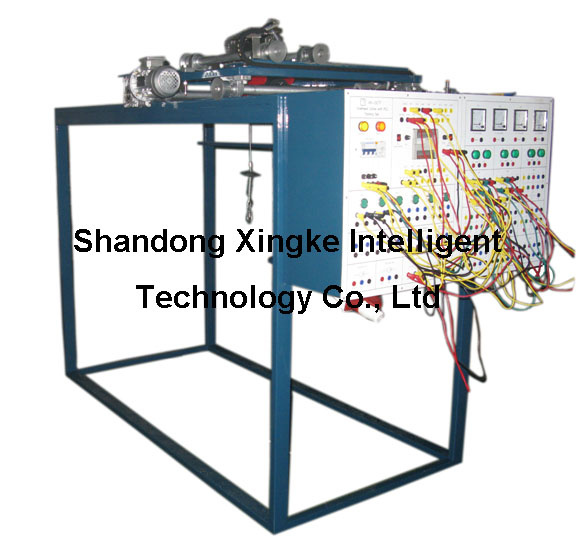

XK-OCT1 overhead crane training device consults function of actual 20/5T type overhead travelling crane and is designed by narrowed fixed size proportion. It is mainly divided into three parts as mechanical structure, electrical structure and metal structure. Mechanical part: Consists of cart running mechanism, trolley running mechanism and hoisting mechanism. It contains: Motor, electric hoist, reducer, wheel gear, transmission shaft and cartwheel, etc...Metal structure: Mainly consists of bridge(girder, end girder, cart track, trolley track), large car frame, trolley frame and control box. Electrical structure: Consists of electrical equipment and electrical circuit. It contains: Power plant of overhead crane and control system of starting, speed regulation, reversing and stopping of each mechanism.
XK-OCT1 overhead crane training device organically connects the machine's electrical part and mechanical part together and the movement of the overhead crane has being all showed up and thus make the teaching and learning more lively. The device is fit for training and evaluating which related to machine's electrical part in primary, intermediate and advanced skill testing of the maintenance electrician and it is also suits to programmable controllers'control training of electrical automation and mechatronics related majors.
2. Main technical parameters
1. Power supply: Three-phase four-wire(380V± 10%50Hz)
3. Device volume: <1000VA
4. Leakage protection action current: ≤ 30mA; Leakage protection action time: ≤ 0.1s
5. Size of control panel: 1000× 600mm
6. Devie dimension: 2400× 1000× 2000mm
3. Training project
1. Familiar with the structure and principle of common low-voltage instruments
2. Understand the actual action of the overhead crane by watching the overhead crane's movement
3. Connecting training of three-phase motor's positive and negative rotary running control
4. Connecting training of single-phase motor's(electric hoist) positive and negative rotary running control
5. Circuit designing and connecting training of electrical control self-locking and inter-locking
6. AB PLC programming training
