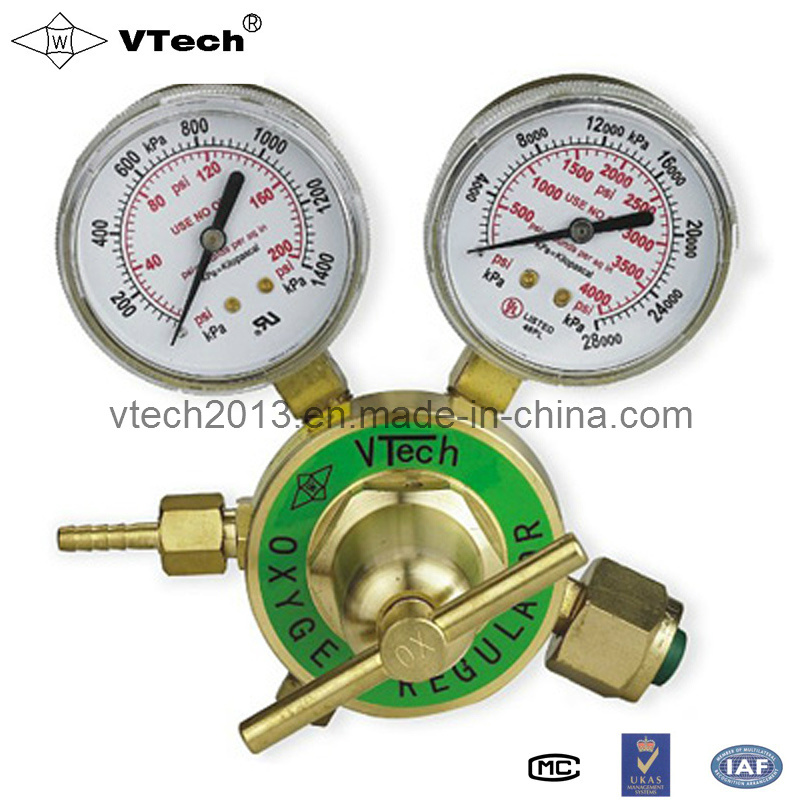

Oxygen Gas Valve with CE Certificate (W-205OX)

Name: Oxygen Gas Valve with CE Certificate (W-205OX)
Brand: china-manufacturer-directory.com
SKU: 719898145
Availability: InStock
Rating: 4.6 (49 reviews)

Supplier:	Nanjing Vtech Electro-Mechanical Technology Development Co., Ltd.
Price:	US $ 45-65/Piece
Min Order:	1/Box
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	W-205OX
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
For Gas:	Oxygen, Nitrogen
Inlet Gauge:	400psi/2800kpa
Outlet Gauge:	200psi/1400kpa
Maximum Flow:	70m³ /H
Weight:	1.5kg
Display:	Pointer
Function:	Electric Signal-controlled
Accuracy:	0.1
Indicating Pressure Reference:	General Pressure Gauge
Application:	Civil
Structure:	Spring Pressure Gauge
Connection Type:	Radial Direction
Measuring Range:	Medium-pressure Gauge

Product Description

1. Single stage construction.
2. Forged brass body & bonnet for maximum strength.
3. Sintered metal inlet filter to trap impurities.
4. Accurate regulator for gas flow.
5. No soldered joints, for easy maintenance.
6. Regulator output pressure set to 0.35Mpa.
7. Smooth adjustment, with high precision.
8. Inlet and outlet connection will be supplied to suit your requirement.

[The main material]

Regulator body: C3771BE
Regulator cover: C3771BE
Seat: PTFE
Diaphragm: NEOPRENE

Model	For gas	M aximum input pressure	Outlet pressure	Inlet gauge	Outlet gauge	Inlet connection	Outlet connection
W-205-OX	OXYGEN	15MPa	0.03~0 . 85MPa	400Psi / 2800Kpa	200Psi / 1400Kpa	G5 / 8-14 " -RH(F)	M16-1.5RH ( F )
W-205-N 2	NITROGEN	15MPa	0.07~1 . 4MPa	400Psi / 2800Kpa	200Psi / 1400Kpa	G5 / 8-14 " -RH(F)	M16-1.5RH ( F )
