Guang Zhou Biao Ji Packing Equipment Co., Ltd. >> Oxygen Transmission Rate Tester (Y201D)

Oxygen Transmission Rate Tester (Y201D)

Name: Oxygen Transmission Rate Tester (Y201D)
Brand: china-manufacturer-directory.com
SKU: 673190735
Availability: InStock
Rating: 4.4 (67 reviews)

Supplier:	Guang Zhou Biao Ji Packing Equipment Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Prod Model:	Y201D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Test Method:	Coulometry Theory Method
Performance:	Completely Reliable
Operation:	User Friendly
Technology:	Advance
Conform To:	ASTM, ISO
Auxiliary Function:	with Printer, Software, Multi-Language
Used By:	Packaging, Food, Pharmaceutical, Cosmetic and etc.
Type:	Electrochemical Gas Analyzer

Product Description

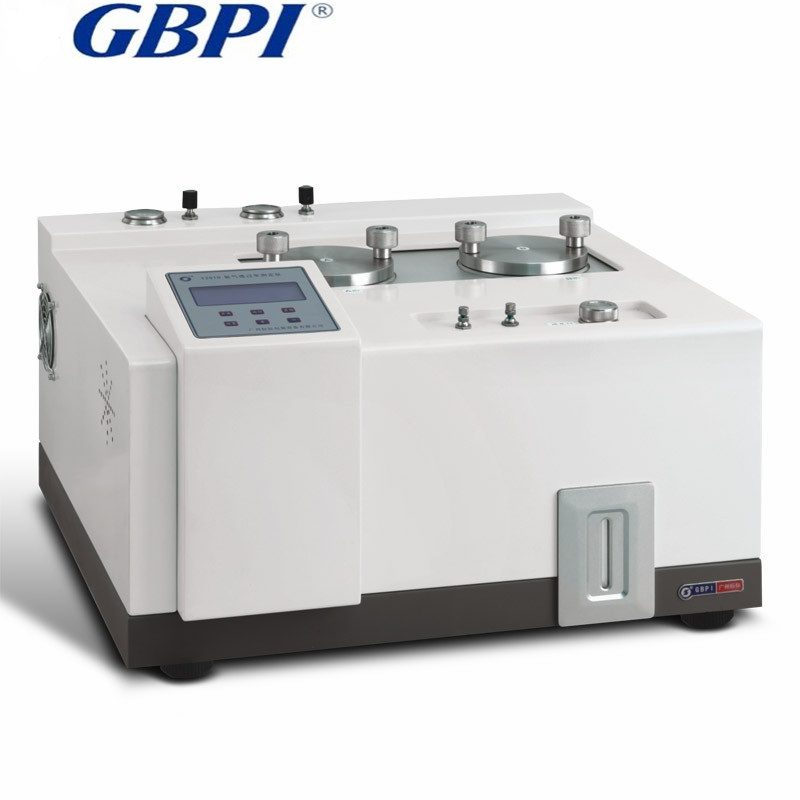

Y201D Oxygen Permeability Analyzer

Functions

To test the oxygen transmission rate (OTR) of packaging materials, such as plastic film, composite film, coextrusion film, aluminum-plated film, aluminum foil, infusion bag, sheets, paper, paper board, solar battery panel, cellophane, ceramics and porcelain, and various containers such as bag, pouch, bottle, can, bowl, box, widely used in the industries of food, pharmaceuticals, personal care, household, electronics and so on.

Standards

ASTM D 3985-1995, ASTM F 1927-1998, ASTM F 1307-1990, YBB00082003, ISO 15105-2:2003, DIN 53380-3-1998, JIS K-7126 ; GB/T 19789-2005

Features
1, Automatic test, user friendly.

2, High-precision sensors with over-range protection, continuous data collection, accurate and reliable data.

3, Two calibration methods of standard gas calibration and standard film calibration.

4, Versatile functions such as the auto leakage protection function, automatically judges and stops.

5. Double chamber pressure control and pressure automatic balance.

6. Superior components ,multi-level security protection design.

7. Versatile operation language support .

Techinical parameter

Test range	0.02~16500 cm3/m2/day (transmission max: 260000cm3/m2/day)
Test accuracy	0.001 cm3/m2/day
humidity range	0%RH, 30~90%RH,100%RH
humidity accuracy	±2%RH
Temp.control range	20~35°C
Temp. accuracy	±0.1°C
Test area	Φ80mm,50.24cm2
Specimen quantity	4pcs
Specimen thickness	≤2mm
Pressure	0.1-0.2Mpa
Testing envirionment	lab temperature: 23 °C

After sale service

1.2 years coverage

2.Speedy reply, 12hrs response to customer questions

3.Software free update

4.Minor maintenance ---parts ship within 24 hrs

5.Major maintenance---Technical will be sent within 15 days

6.Free inhouse training for customer operator

Our company

Our customers

Cooperation

We are the lab solution provider for the food, pharmaceutical, packaging, printing industries, research institution and college with qualified instruments and service. The machines are running well in over 3000 laboratories to guarantee the highest quality and save cost for customers. We gain increasing good reputation from worldwide customers recent years.

R&D department

With over 1000m2 laboratory and developing center. The experts and technical team come from chemical, electronic, mechanical and software field abroad and domestic. We've been continuously researched and development for new products and the improved current products, and supply with the first technical service for you. It is our honored as the technical innovation enterprise and gain the government support.

Service & Support

24 sales group serve for international and domestic customers. Local agent and office provide instant support. Technical and after-sale service team help you to solve all the problems for easy operation and friendly using. We are thankful for customers' support and staff dedication to continued success.
