Ozone Generator Air and Water Purifier with Good Price

Name: Ozone Generator Air and Water Purifier with Good Price
Brand: china-manufacturer-directory.com
SKU: 760341165
Availability: InStock
Rating: 4.9 (37 reviews)

Supplier:	Fujian Allied Power EnTech Co., Ltd.
Price:	US $ 3274/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

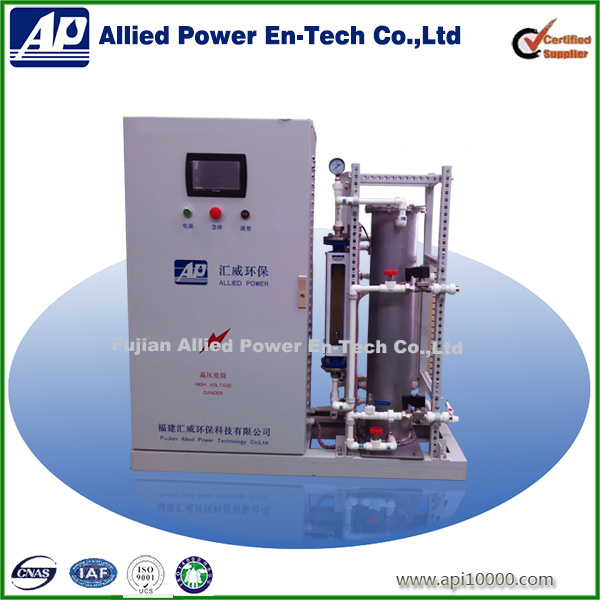

Prod Model:	HW-A-100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	Ozone Generator
Output:	100g/H
Rated Power:	1.9kw
Concentration:	35mg/L
Air Flow Rate:	46L/Min
Flow Of Cooling Water:	0.4m3/H
Gas Feed:	Air
Air Dew Point:	-45
Size:	900X700X1560mm
Powe Supply:	380V/50Hz
Installation:	According Clients Requires

Product Description

Item NO.

Output

Concentration

Rated

power

Air flow rate

Flow Of Cooling Water

Air dew point

Power

supply

(V/Hz)

Weight

HW-A-100

100g

35mg/L

1.9kw

46L/min

0.4m3/h

-45°

350/50

130kg

Technical details

High frequency invert power supply system with own international patents.

Micro-gap corona discharge technology, quartz glass tubes honeycomb discharge.

Water cooling system.

Pure oxygen or air as gas feed.

Stainless steel ozone reaction cavity and discharging tubes.

Wecon PLC micro computer control, touch screen human-machine display.

Multiple proteftion designs in case of over current,overvoltage, overheeated, high and low air pressure.

Efficiency& reliable

Power factor>0.95.

PFC≥0.95

The adverage power consumption of per kilogramozone output is about 7 degree.

Ozone concentration could reach 230mg/l with pure oxygen asgas feed.

Multiple abnormality protection. Light alarm system.

Easy operatiion

  Ozone concentration adjustable.
  Ozone production adjustable.
  Time switch machine Settings, realize unattended.
  Transport gas without any external equipments during certain scope.

Group control function, digital remote monitoring
Real-time analysis and system failure diagnosis.

About Us

With advanced technology, mighty R&D and hard work, Allied Power base on ozone generating mechanism and ozone application research, ozone equipment manufacturing, devote to environmental protection, against industrial pollution.

Allied Power has developed most efficient and reliable ozone generator with output from 10g/h to 50kg/h. Our ozone generators adopt medium dielectric barrier corona discharge (DBCD) technology, quartz glass tubes with micro-discharge chamber and SS304 tubes as dielectric medium, ensure high ozone concentration, stable operation. Not only high technology in ozone generating mechanism, we also own international patents on soft-switch power system. Our high frequency inverters power rated could over 440KW, high frequency reach 30KHZ.

Being applications in drinking water, wastewater, process water, industrial oxidation , bleaching, deodorization, waste gas treatment, space disinfection etc., our products have widely used in North America, South America, South-East Asia, Middle East and Europe.

Catalogue

Air supply Ozone generator

Product Model	Ozone Output	Flow Of Cooling Water	Rated Power	Air flow rate
HW-A-10	10g	0.1m3/h	0.2kw	8.3N*L/min
HW-A-20	20g	0.1m3/h	0.4kw	16.7N*L/min
HW-A-30	30g	0.1m3/h	0.6kw	25N*L/min
HW-A-50	50g	0.2m3/h	1kw	41.7N*L/min
HW-A-80	80g	0.3m3/h	1.5kw	66.7N*L/min
HW-A-100	100g	0.4m3/h	1.7kw	83.3N*L/min
HW-A-150	150g	0.6m3/h	2.5kw	7.5N*m3/h
HW-A-200	200g	0.8m3/h	3.4kw	10N*m3/h
HW-A-250	250g	1m3/h	4.4kw	12.5N*m3/h
HW-A-300	300g	1.2m3/h	5.1kw	15N*m3/h
HW-A-500	500g	2m3/h	8.5kw	25N*m3/h
HW-A-800	800g	3.2m3/h	136kw	40N*m3/h
HW-A-1K	1kg	4m3/h	17kw	50N*m3/h
HW-A-1.2K	1.2kg	5m3/h	21kw	60N*m3/h
HW-A-1.5K	1.5kg	6m3/h	26kw	75N*m3/h
HW-A-3K	3kg	12m3/h	51kw	150N*m3/h
HW-A-5K	5kg	20m3/h	85kw	250N*m3/h
HW-A-10K	10kg	40m3/h	170kw	500N*m3/h
HW-A-20K	20kg	80m3/h	340kw	1000N*m3/h

Oxygen supply ozone generator

Product Model	Ozone Output	Flow Of Cooling Water	Rated Power	Air flow rate
HW-O-10	10g	0.1m3/h	0.1kw	1.7N*L/min
HW-O-20	20g	0.1m3/h	0.2kw	3.3N*L/min
HW-O-30	30g	0.1m3/h	0.3kw	5N*L/min
HW-O-50	50g	0.1m3/h	0.5kw	8.3N*L/min
HW-O-80	80g	0.15m3/h	0.8kw	13.3N*L/min
HW-O-100	100g	0.2m3/h	0.9kw	16.7N*L/min
HW-O-200	200g	0.4m3/h	1.8kw	2N*m3/h
HW-O-300	300g	1m3/h	2.5kw	3N*m3/h
HW-O-500	500g	1m3/h	4.3kw	5N*m3/h
HW-O-700	700g	1.4m3/h	6kw	7N*m3/h
HW-O-800	800g	1.6m3/h	7kw	8N*m3/h
HW-O-1K	1kg	2m3/h	8.5kw	10N*m3/h
HW-O-2K	2kg	4m3/h	17kw	20N*m3/h
HW-O-2.5K	2.5kg	5m3/h	22kw	25N*m3/h
HW-O-3K	3kg	6m3/h	26kw	30N*m3/h
HW-O-5K	5kg	10m3/h	45kw	50N*m3/h
HW-O-10K	10kg	20m3/h	85kw	100N*m3/h
HW-O-30K	30kg	60m3/h	260kw	300N*m3/h
HW-O-50K	50kg	100m3/h	440kw	500N*m3/h

Ozone water generator

Product Model	Ozone Output	Flow Of Cooling Water	Rated Power	Air flow rate
HW-OW-10	10g	0.1m3/h	0.8kw	1.7N*L/min
HW-OW-20	20g	0.1m3/h	0.9kw	3.3N*L/min
HW-OW-30	30g	0.1m3/h	1.1kw	5N*L/min
HW-OW-50	50g	0.1m3/h	2.2kw	8.3N*L/min

Based on ozone technology, Fujian Allied Power EnTech Co., Ltd is a new high-technology enterprise which specializes in the line of ozone generation mechanism, ozone application, ozone material research and ozone equipment making. We cater to diversified industries and applications, which includes drinking water treatment, sewage treatment, swimming pools, public fields in hospital, pharmacy, paper making, printing and dyeing, etc. With an experienced Research & Development team, the company creates and produces the full series of ozone equipment based on the advanced technology and the right market location. We have the intellectual property of the whole series of ozone equipment core accessories. In a full range from the inverter to ozone discharge system, we apply a series of patented technology; We solve the matching problem between the power supply and discharge system to the full extent; We advance the efficiency and concentration of ozone generation. Then, the overall system of ozone generator has been recognized and appreciated by a lot of customers for its excellent reliability. Our company puts its business creed as "Allied technology, perfect quality. " We dedicates ourselves to the manufacture and technology innovation of ozone equipment and do our best for economic development and environmental protection.
