Guangzhou Glory Light Box Manufacturing Co., Ltd. >> P10 LED Display with Scrolling Message

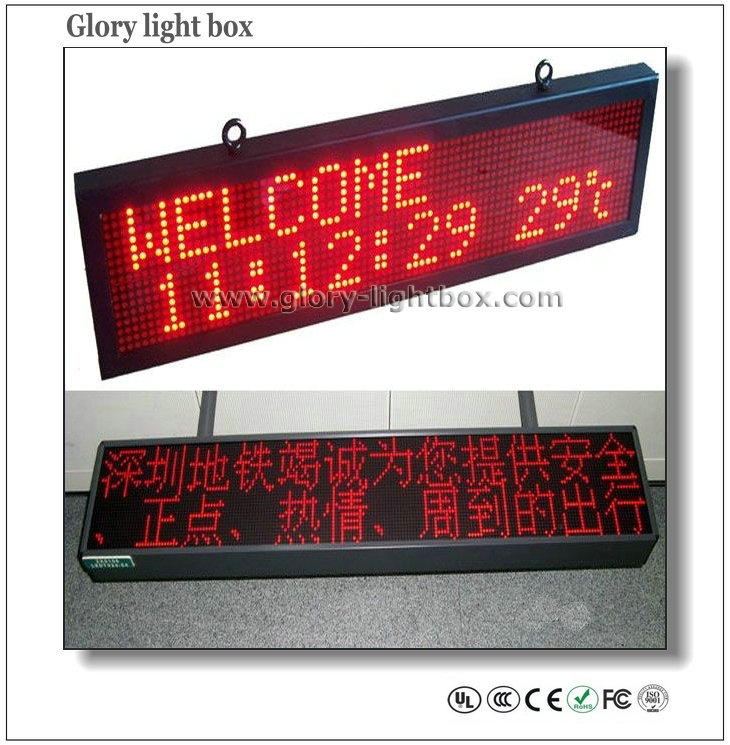

P10 LED Display with Scrolling Message

Name: P10 LED Display with Scrolling Message
Brand: China-Manufacturer-Directory.com
SKU: 680075892
Availability: InStock
Rating: 4.8 (126 reviews)

Supplier:	Guangzhou Glory Light Box Manufacturing Co., Ltd.
Price:	Negotiable/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	CM003
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	CE
Material:	Stainless Steel
Usage:	Advertising
Shape:	Rectangle
Type:	LED Display

Product Description

Product: P10 LED display/High definition LED display advertising screen/ waterproof large size LED display screen/indoor full color LED display screen/Excellent resolution P16 outdoor electronic LED display screen

Specification:
1)Size: OFP10, OFP12, OFP12.5, OFP16, OFP20, OFP25, OFP31.25 etc
2)Quality: From material to finished product, from design to produce, we control all steps, that's the guarantee of the quality and reliability
3)Display: Mounted inside wall, fixed on the grond, Hanged-up, supported by two pillars, mounted onto wall, supported by one pillar
4)Package: Babble inside, wooden case outside
5)Delivery time: 15-20 business days after deposit
6)Guarantee: 2 years

Description	Technical parameter
Unit module	Module size	256*128mm
	Pixel pitch	16mm
	Pixel density	3906dots/m2
	Pixel configuration	2R1G1B
	Led specification	346 DIP
	Pixel resolution	W: 16dots*H: 8dots
Cabinet	Dimension	1024mm768mm185mm
	Quantity of module	24pcs
	Power supply	4pcs
	Thermal discharge	Fan*2pcs
	Total weight	50kg
	Best viewing angle	16-300m
	Temperature	Storage: -35° C~+85° C
	Temperature	Working: -35° C~+85° C
	Thickness	15cm can adjustable
	Remarks: cabinet size can changed, upon project need.
Power	Working voltage	AC220V/110V± 10%
	Average power consumption	200-320W
	Max. Power consumption	≤ 320W/sqm
	Current	≤ 20mA(single LED)
Control system	CPU	Pentium4 or above
	Operating system	WIN98/2000/NT/XP
	Control method	Synchronization
Main technical parameter	Driving device	Static
	Drive type	Constant Current driver IC
	Refresh frequency	≥ 300Hz
	Grey scale/colors	256 levels of each color(R/G/B)/16.7M color
	Brightness of white balance	More than 1800cd/sqm
	Brightness adjustment	256 levels of each color(R/G/B)by software
	Operating ambient humidity	10%--95%
	Video signal	PAL/NTSC
	Control system	DVI display card+full color controller card
	MTBF	≥ 10, 000hours
	Life span	≥ 100, 000hours
	Flatness	Tolerance of interpixel ≤ 0.3mm
	Flatness	Tolerance of modules clearance≤ 0.6mm
	Power switch	Automatic switch
	Display mode	1024*768
	Communication distance	Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m. Multi-mode Optic fiber transmission distance 500m; Single-mode optic fiber transmission distance 10KM
Software	LED studio

Guangzhou Glory Light Box Manufacturing Co., Ltd. Located in Guangzhou, China.

We are the factory and offer various advertising light boxes, light box display, LED signs etc. The aim of us is to continuously develop new and more effective advertising products. We have many regular lightbox products. But as we know, there are ever-changing articles in the advertising area. So our company also make the customized item according to your request. Welcome to let me know your model, size, material, structures, weight etc...

Our main product: Advertising player, LED screen display, Scrolling light box, LED crystal light box, LED slim light box, acrylic light box, LED display screen, solar light box and so on.

Our products are exported to Europe, America, Australia, Middle East, Asia...We have cooperated with some famous brand, such as Coca cola, Guinness, Budweiser, Pepsi, Heineken, Tiger, Vodafone, Alfred dunhill. We are looking forward to the cooperation with you! !

Why choose light boxes? They widely used in the shopping malls, chain stores, , railway, bus-stop, airport, highway, parking lot, hotel, entertainment, the place where people here and there. Your products will be knowed quickly. And they are easy to application and maintain. Energy-saved and Environmental protection. It is the best choice to promote your products and bring your generous profits.
