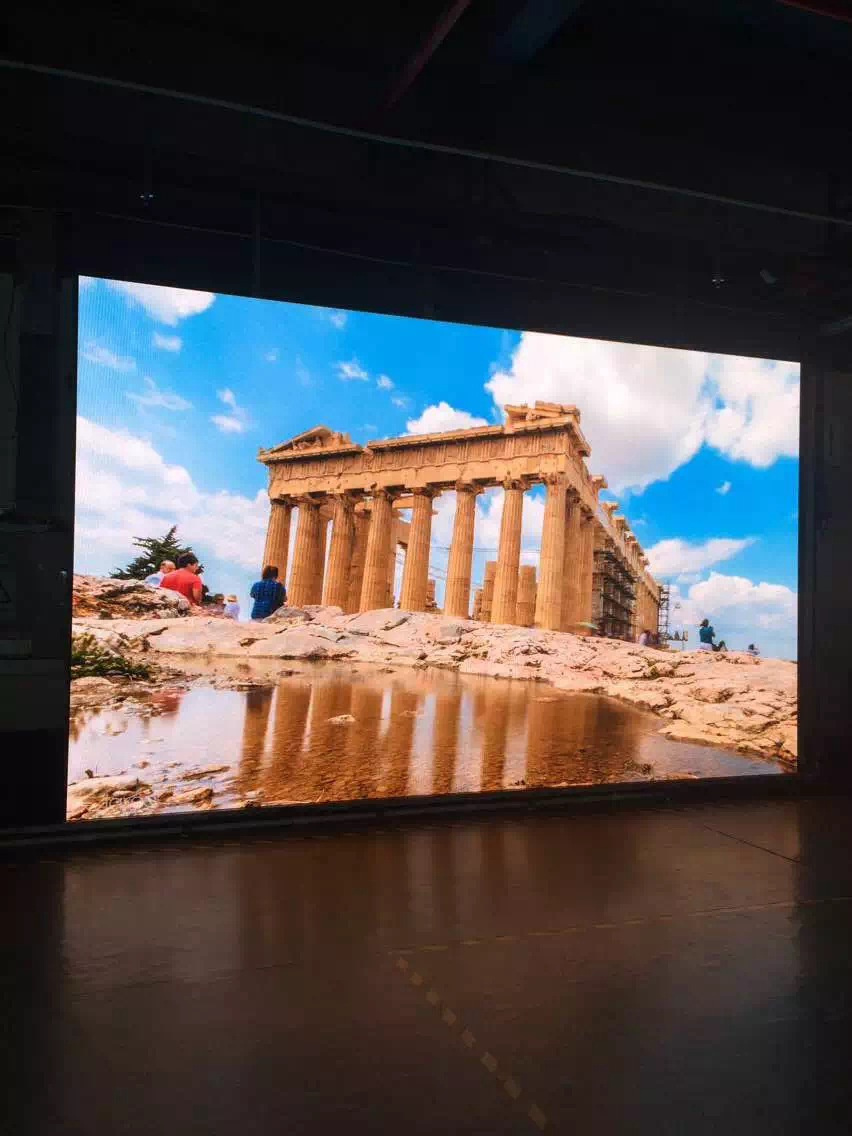

P10 Outdoor Full Color LED Display for Advertisement

Name: P10 Outdoor Full Color LED Display for Advertisement
Brand: china-manufacturer-directory.com
SKU: 776138465
Availability: InStock
Rating: 4.4 (80 reviews)

Supplier:	Shenzhen Noveled Technology Co., Ltd.
Price:	US $ 700-750/Square Meter
Min Order:	1/Square Meter
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	P10 outdoor led display
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Module Size:	160mm*160mm
Standard Cabinet Size:	960mm*960mm
Brightness:	More Than 6500CD
Cabinet Material:	Steel
Packed Material:	Wooden Case or Flight Case
Warranty:	2 Years
Tube Chip Color:	Full Color
IP Rating:	IP65
Pixel Pitch:	10mm
Pixel Configuration:	1R, 1G, 1B
Display Function:	Video Display
Average Power Consumption:	220W / m²
Pixel Density:	10000 dot / m²
Scanning Mode:	1/4 Scan
Display Type:	LED Video Display
Application:	Advertising
Certification:	CCC

Product Description

PH10 outdoor led display and detailed specification

Item	Outdoor DIP LED display
Pixel Pitch(mm)	10mm	12mm	16mm	20mm
Pixel density(/m2)	10000	6944	3906	2500
LED Type	DIP346
Viewing angle:	H:120°,V:60°
Brightness(nits)	≥6500	≥5000	≥7000	≥5500
Drive Method	1/4		Static
Color Depth(nits)	16384
Refresh Rate(Hz)	2200		2800
Module Size(mm)	160×160x28.5	192×192x28.5	256×256x28.5	320×320x28.5
Cabinet Size(mm)	960×960x178.5		1024×1024x178.5	1280×960x178.5
Cabinet Material	Steel
Cabinet weight(kg)	50		55	68
Voltage	110/220V
Average.power(W / m2)	250	170	250	220
Max.power(W / m2)	750	500	750	650
IP Grade	IP65/IP54
Operating temperature/humidity	temperature:-20ºC~ 50ºC humidity:10~90%RH
Storage temperature/humidity	temperature:-40ºC~ 60ºC humidity:10~90%RH
Lifetime(h)	≥50000
Compliant Standard	CCC,CE,Rosh

LED Parameters

Item	Luminous Intensity	Viewing Angle(H/V)	Wavelength	Test Condition
Red LED	300-500mcd	120º/60º	620-630nm	25ºC,20mA
Green LED	1800-2200mcd	120º/60º	520-535nm	25ºC,20mA
Blue LED	250-500mcd	120º/60º	465-475nm	25ºC,20mA

Product Features

P10 outdoor full color 1R1G1B LED Display As DIP LED display has experienced long term R&D and application, technology of DIP is mature, performance is stable and it is widely supported. Most of the complicated systems or complement measures are designed and manufactured on basis of DIP display standards, so DIP LED display is your conservative and reliable choice.

High brightness, DIP LED display adopts independent encapsulation, so when it is the same brightness, DIP has more heat radiation sheet metal than SMD so that design is in favor of chip heat radiation and high brightness. Meanwhile, DIP LED adopts V shape encapsulation, which can increase its performance of lighting focus so as to raise brightness and viewing distance.

Better IP rank, DIP LED display is IP65 and mostly installed outdoor or semi-outdoor because of its high brightness and better waterproof effect and solutions.
