Shenzhen Noveled Technology Co., Ltd. >> P10 Outdoor Full Color LED Display with 960 Mm X 960mm Cabinet

P10 Outdoor Full Color LED Display with 960 Mm X 960mm Cabinet

Name: P10 Outdoor Full Color LED Display with 960 Mm X 960mm Cabinet
Brand: china-manufacturer-directory.com
SKU: 756947305
Availability: InStock
Rating: 4.7 (64 reviews)

Supplier:	Shenzhen Noveled Technology Co., Ltd.
Price:	US $ 650-750/Square Meter
Min Order:	1/Square Meter
Quantity::
Trade Terms:	FOB,CIF,others

Product Specifications

Prod Model:	P10mm
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brightness:	More Than 6500 CD
Mini Order:	1 Sqm
Standard Cabinet Size:	960mm X960mm X 150mm
Packed:	Wooden Case or Flight Case
Display Type:	LED Video Display
Tube Chip Color:	Full Color
IP Rating:	IP65
Pixel Configuration:	1R, 1G, 1B
Certification:	CCC
Pixel Pitch:	10mm
Display Function:	Video Display
Application:	Advertising
Scanning Mode:	1/4 Scan
Pixel Density:	10000 dot / m²
Average Power Consumption:	350W / m²

Product Description

P10 Full color outdoor LED Display for fix installation

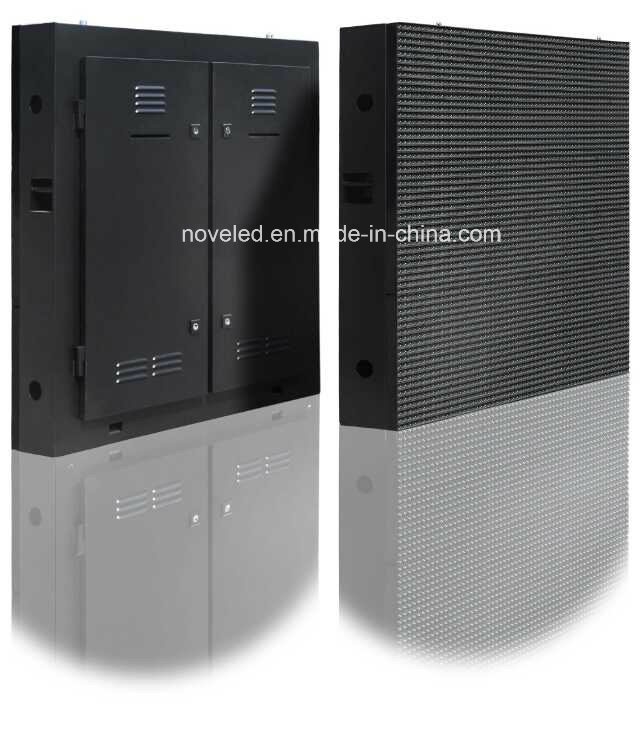

Fix installation LED Display Screen cabinet view

P10 Outdoor LED Screen detail specification

Function and Technology Character
(1) Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive.
(2) Information source can be camera, video, VCD, DVD, LD, TV and so on.
(3) Clear picture without flicker and distortion.
(4) Brightness, contrast, saturation can be adjust by itself and manual.
(5) Show everything with your PC does synchronously.
(6) Super correcting technology for distortion.
(7) One interface for sound signal and two for video signal at least.
(8) Connected and controlled by PC via LAN and remote control.
(9) Multiform language editions, such as English, French, Germany, Greek, Russian and so on.

Display and control feature		Structure feature
Specification	Parameter	Specification	Parameter
Pixel Pitch	10 mm	Module size	160 mm*160 mm
Pixel composing	1R1G1B	Display resolution/module	16 dots*16 dots
Wavelength (R)	625±5	Standard cabinet size	960mm*960 mm
Wavelength (G)	522±3	Weight per sqm	56Kg/sqm
Wavelength (B)	470±5	Protection classification	--- IP65
Wave Angle (H)	110°(H)/ 60°	Install mode	Wallmount, hung and stand structure
LED package	DIP346
Density	10000	Working power
Display color	256256256	Specification	Parameter
Whiteness brightness	≥7500cd	Working voltage	AC 220v/380v±10% 47~64Hz
Brightness level	128 grade	Max power/sqm	1000W/sqm
Changing frame frequency	60 Hz	Average power/sqm	500W/sqm
Refresh	400 Hz	Short circuit protection	Yes
Driving method	Constant Static current
Control mode	synchronous	Working environment
Display port	DVI	Specification	Parameter
Display mode	1024768 /10241024	Environment	Outdoor
Out of control	1/10,000 ( scattered)	Working temperature	--20~50c
lifetime	100,000 hours	Working Humidity	10~90%

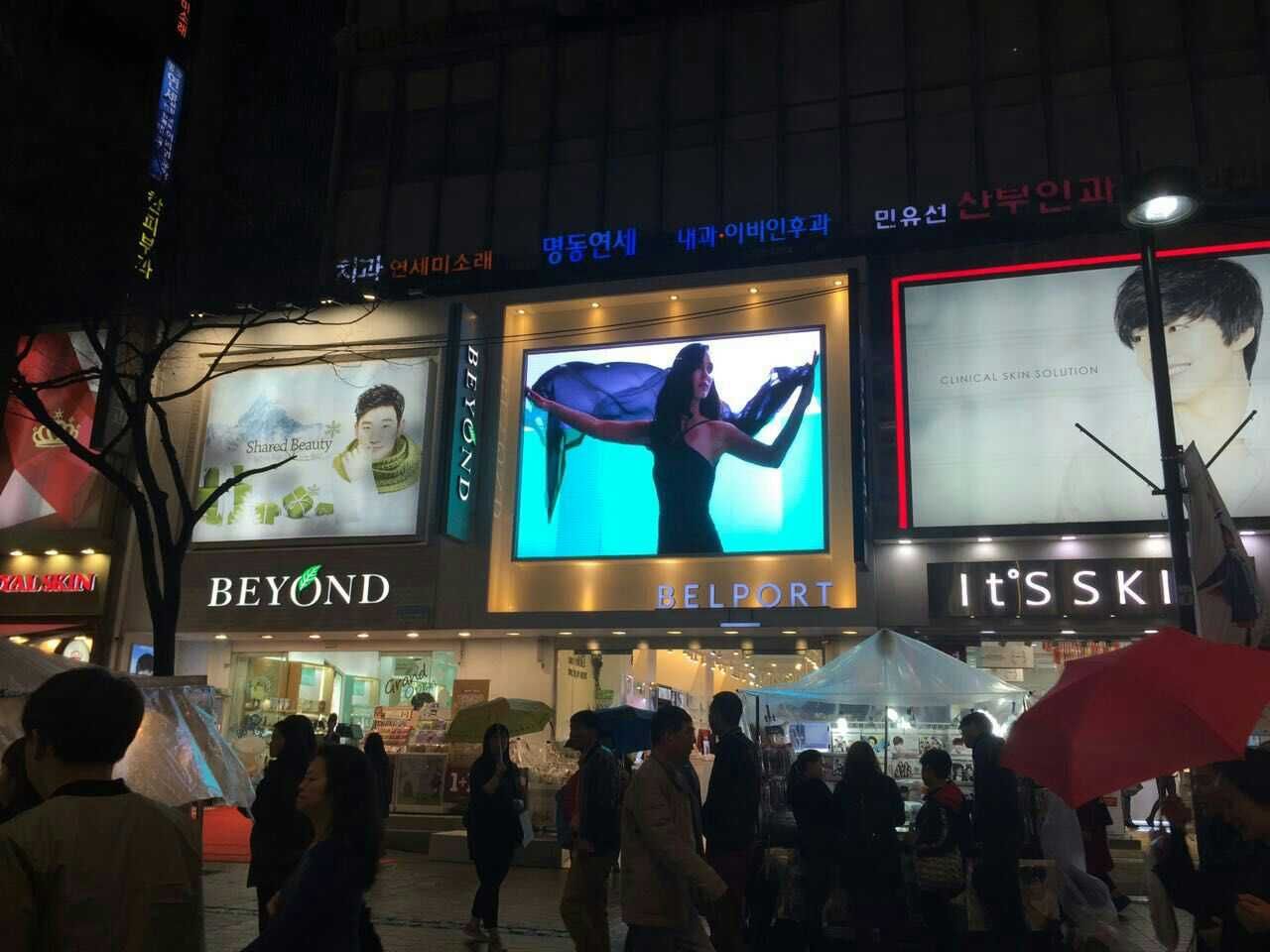

LED Screen Project ;

Shenzhen Noveled Technology Co., Ltd ( Noveled ) is a subsidiary of Noveled Group Co, Ltd...Noveled is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays. & LED lighting...

With several years of development, NOVELED own its factory workshop area about 2, 000sqm, professional clean room, Siemens high-speed placement machine, automatic plug Universal, computer intelligence environmentally friendly lead large wave soldering, reflow (8 for 8 microcirculation heat treatment technology), Intelligent glue large stroke machine., monthly capacity is 1000sqm We are an ISO 9001: 2000 company, CE certified, export licence holders. We have the honor to work for hundereds of customers in over 400 cities of 33 provinces in China, and we also have built long-term business relationship with the customers all over the world, for example, PCS Sound in Austria, Screen world in Korea, Mega LED in Turkey, Internacionmidia in Brazil and so on.

NOVELED products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.

We adhere to the "customer first, quality first, reputation first, " as operating principle. Our assurance is to provide our customers best products with high quality and most reasonable prices above your level of satisfaction.
