Shenzhen Noveled Technology Co., Ltd. >> P10 Outdoor LED Display for Fix Installation

P10 Outdoor LED Display for Fix Installation

Name: P10 Outdoor LED Display for Fix Installation
Brand: china-manufacturer-directory.com
SKU: 754489915
Availability: InStock
Rating: 5 (21 reviews)

Supplier:	Shenzhen Noveled Technology Co., Ltd.
Price:	US $ 650-700/Square Meter
Min Order:	3/Square Meter
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	P10 RGB full color Fix installation LED Display
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brightness:	7000CD
LED Module Size:	160mm X 160mm
Standard Cabinet:	960mm X 960mm
Cabinet Weight:	45 Kg/ PC
Packing Materail:	Wooden Case
Tube Chip Color:	Full Color
IP Rating:	IP65
Pixel Pitch:	10mm
Pixel Configuration:	1R, 1G, 1B
Display Function:	Video Display
Average Power Consumption:	220W / m²
Pixel Density:	10000 dot / m²
Scanning Mode:	1/4 Scan
Display Type:	LED Video Display
Application:	Stage Performance
Certification:	CCC

Product Description

P10 outdoor full color led display
Feature :
1. Cabinet structure is with light weight and standardization: adopting high strength metal process, achieving high precision, light weight and other outstanding features;
2 .Energy Saving≥50%, Environment Protection

Item	Outdoor DIP LED display
Pixel Pitch(mm)	10mm	12mm	16mm	20mm
Pixel density(/m2)	10000	6944	3906	2500
LED Type	DIP346
Viewing angle:	H:120°,V:60°
Brightness(nits)	≥6500	≥5000	≥7000	≥5500
Drive Method	1/4		Static
Color Depth(nits)	16384
Refresh Rate(Hz)	2200		2800
Module Size(mm)	160×160x28.5	192×192x28.5	256×256x28.5	320×320x28.5
Cabinet Size(mm)	960×960x178.5		1024×1024x178.5	1280×960x178.5
Cabinet Material	Steel
Cabinet weight(kg)	50		55	68
Voltage	110/220V
Average.power(W / m2)	250	170	250	220
Max.power(W / m2)	750	500	750	650
IP Grade	IP65/IP54
Operating temperature/humidity	temperature:-20ºC~ 50ºC humidity:10~90%RH
Storage temperature/humidity	temperature:-40ºC~ 60ºC humidity:10~90%RH
Lifetime(h)	≥50000
Compliant Standard	CCC,CE,Rosh

Application

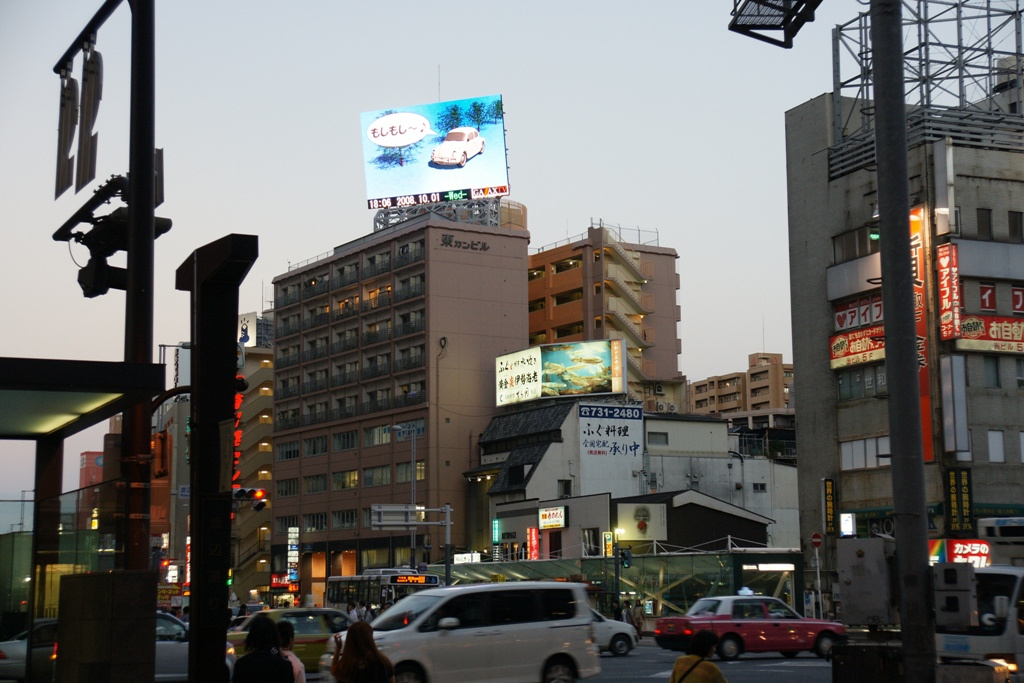

Outdoor Advertisement , Commercial Shopping Mall , Square , Outdoor stage rental and so on .

Shenzhen Noveled Technology Co., Ltd ( Noveled ) is a subsidiary of Noveled Group Co, Ltd...Noveled is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays. & LED lighting...

With several years of development, NOVELED own its factory workshop area about 2, 000sqm, professional clean room, Siemens high-speed placement machine, automatic plug Universal, computer intelligence environmentally friendly lead large wave soldering, reflow (8 for 8 microcirculation heat treatment technology), Intelligent glue large stroke machine., monthly capacity is 1000sqm We are an ISO 9001: 2000 company, CE certified, export licence holders. We have the honor to work for hundereds of customers in over 400 cities of 33 provinces in China, and we also have built long-term business relationship with the customers all over the world, for example, PCS Sound in Austria, Screen world in Korea, Mega LED in Turkey, Internacionmidia in Brazil and so on.

NOVELED products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.

We adhere to the "customer first, quality first, reputation first, " as operating principle. Our assurance is to provide our customers best products with high quality and most reasonable prices above your level of satisfaction.
