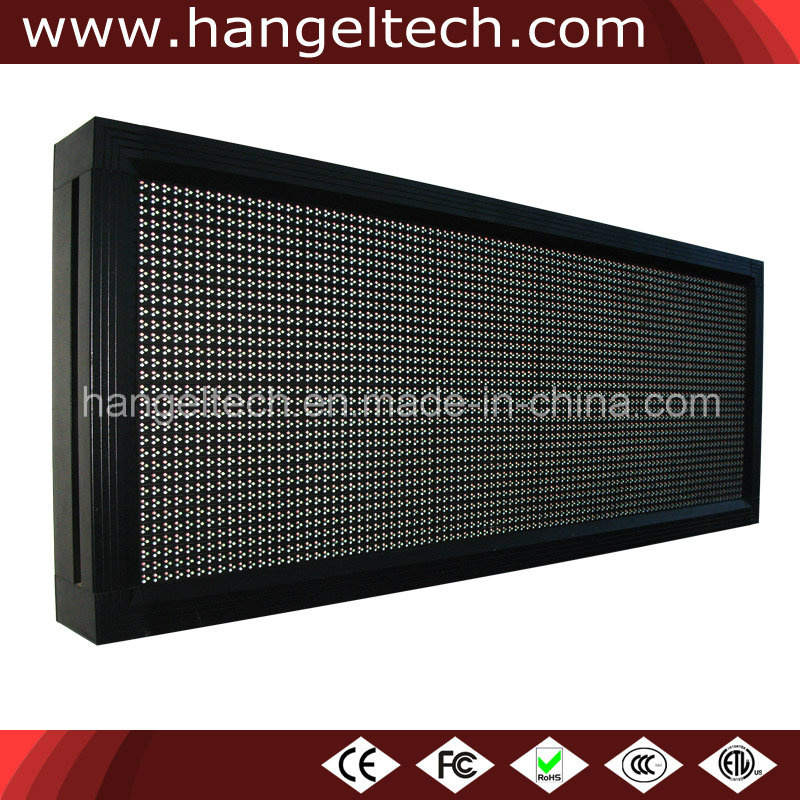

P10 WiFi Controlled Outdoor LED Moving Message Display

Product Specifications

Prod Model:	HTS-OD10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sign Size:	Custom-Made, Any Size Is Acceptable
Weight:	50kg/Sqm
Displaying Color:	Single Color, Tri-Color, 7 Color, etc.
Protection:	IP65, Water Proof and Dust Proof
Lift Span:	100, 000 Hours
Warranty:	1 Year, Spares Offered Free of Charge
Tube Chip Color:	Dual-color
IP Rating:	IP65
Pixel Pitch:	10mm
Display Function:	Image & Text Display
Average Power Consumption:	180W / m²
Pixel Density:	10000 dot / m²
Scanning Mode:	1/4 Scan
Certification:	FCC
Pixel Configuration:	1 R 1 G
Display Type:	DIP LED Module
Application:	Advertising, Promotion, Propaganda, Bulletin Board

Product Description

P10 WIFI Controlled Outdoor LED Moving Message Display  cell phone app wireless controlled, custom sign, high brightness, IP65, water proof, dust proof, CE, RoHS, FCC, ETL approved, 1 years warranty

> P10mm Outdoor Electronoc LED Billboard, customized sign, LED moving sign;
> Steel Housing, firm and flat, kinds of weather proof, such as wind, sand, rain, etc.
> IP65 protection, water proof, dust proof;
> High Brightness, readable even facing sunlight;
> All Messages Programmable, client can edit the wanted messages, ads in the controlling software and transmitting to the LED sign;
> World-Wide Languages Supported, no worry for some local minority languages;
> Standard Signal Interface RS232+ USB port, and RS232/USB switcher offered free;
> Kinds of Other Mature Controlling System Optional, RJ45, RS485, RF, Infrared controlling, WIFI, TCP/IP controlling, iphone controlling, android phone controlling, etc.
> 2nd Development is supported. SDK or protocol can be offered as required to docking with other devices;
> Any size, any color are acceptable, such as red, green, blue, white, yellow, tri-color, 7-color,  full color, etc.

Application,
> Store Banner, playing ads, promotional information;
> Bulletin Board, playing community news, event date, address, community activity or something;
> Indicating Board, playing direction informations, indicating exit, etc.
> Time & Date Sign, playing time, date, week info. temperature, etc.

Specifications,

Basic Information
Model No.		HTS-OD10
Pixel Pitch		10mm
Module Tech		DIP module, water proof
Module Size		320mm length (12.6 inches) 160mm height (6.3 inches)
Sign Size		Any size acceptable
Displaying Color		red, green, yellow, blue, white,  tri-color, 7-color, full color, etc. optional
Housing Material		Cold roll steel board (Aluminum frame optional)
Weight		50 kg/sqm
Packing		Pearl foam & Carton Box
Tech Parameters
Brightness		4000 cd/sqm (nits), readable facing sunlight
Controlling Mode		Asynchronous controlling (off-line controlling)
Standard Signal Access		RS232 & USB
Optional Signal Access		RJ45, RS485, RF, Infrared, WIFI, GPRS, 3G,  GSM, TCP/IP, IPhone, Android Phone, etc.
Language		World-wide languages supported
2nd Development		Optional, the SDK or Protocol can be offered as required
Protection		IP65, water proof, dust proof
Power Input		AC 110V/220V, 60HZ/50HZ; ±10%
Function		Playing messages, ads, icons, logo,  time, date, temperature, animation, etc.
Application		Kinds of outdoor banner sign, electronic message signboard,  time & date sign, outdoor bulletin board,  electronic digital billboard, etc.
Warranty		1 year
Other Available Models
HTS-OD10-1664	HTS-OD10-1696		HTS-OD10-16128	HTS-OD10-16160, etc.
