P12 Outdoor Full Color LED Display (UVO-P12-FLO)

Name: P12 Outdoor Full Color LED Display (UVO-P12-FLO)
Brand: china-manufacturer-directory.com
SKU: 675154935
Availability: InStock
Rating: 4.3 (25 reviews)

Supplier:	Universe Optoelectronics Co., Ltd.
Price:	US $ 800/Square Meter
Min Order:	1/Square Meter
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	UVO-P12-FLO
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Tube Chip Color:	Full Color
IP Rating:	IP65
Pixel Pitch:	12mm
Display Function:	Video Display
Pixel Density:	6944 dot / m²
Pixel Configuration:	1r1g1b & 2r1g1b
Scanning Mode:	Static, 1/2. 1/4 Scan
Certification:	CE, RoHS
Average Power Consumption:	400

Product Description

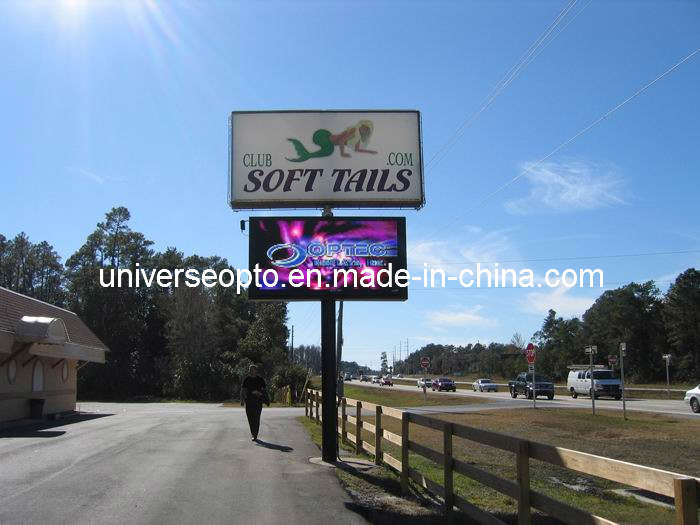

1) Widely used in shopping centre, square, airport, advertising and etc.
2) Environment-protection and energy-saving.
3) Advanced digital technology for video.
4) Be able to show video, cartoon, graphics, text, pictures and etc.
5) Outdoor LED display
6) High brightness
7) Light weight and ultra thin
8) Good stability
9) Professional advertising outdoor Led display, led screen Manufacturer

Pixel Pitch	12mm
Pixel Density(dot/m² )	6944
Pixel Configuration	1R1G1B / 2R1G1B
Packaged Type of LED	DIP546
Module Size(mm)	192X192
Module Resolution	16X16
Brightness(cd/m² )	6500 - 7000
Max Power Consumption (w/m² )	1040
Best Viewing Distance(m)	12-36
Viewing Angle	120° H/60° V
Drive Mode	Constant Current drive Static, 1/2 scan / 1/4 scan
Driving	Driving IC MBI5026 / MBI5024
Frame-change Frequency	≥ 60 Hz/s
Refresh Rate	≥ 600Hz/s
Gray Grade Level	4906 Grades
Display Mode	1024*768
Control System	Synchronization Control
Transmission Distance	Reticle ≤ 100M; Multi-mode Fiber ≤ 500M Single-mode Fiber ≤ 10000M
Out of Control	Rate ≤ 0.0001
Lifespan	≥ 100000H
Driving Power	5V
Working Voltage	AC220V± 10% 47HZ~60hz
Working Temperature	-10° C ~+55° C
Working Humidity	5%RH~85%RH

Universe Optoelectronics Co., Ltd. is a high-tech private company who combines research, development, production and Sales into one kit. It is one of the R & D and manufacturing base of the Energy and Power Institute of Huazhong University of Science and Technology, it is Also cooperate with China's State Key Laboratory of Optoelectronic.

Our company mainly engaged in the manufacturing of LED 7segment, connectors and other LED lighting products. The products are widely used in electrical appliances, computer, and lighting decorative and other fields. LED lighting products are with low energy, environmental protection and other features, which is in compliance with the global advocacy of energy saving and environment protection.

Our company covers an area of 7000 square meters, employs more than 500 people, including 120 professional R & D and technical staff. The workshop selects the advanced manufacturing system, strict quality control system and complete product inspection flow. The product has passed not only the related the ISO9001 authentication, but also the product authentication of RoHS, CE...
Company uphold the idea of managing continually, wholeheartedly and faithfully sercvice for new old customers with high technology and high quality.
