Shenzhen BST-SIGN Electronics Co., Ltd. >> P16 Weatherproof Full Color Outdoor Fixed LED Display

P16 Weatherproof Full Color Outdoor Fixed LED Display

Name: P16 Weatherproof Full Color Outdoor Fixed LED Display
Brand: china-manufacturer-directory.com
SKU: 688927272
Availability: InStock
Rating: 5 (137 reviews)

Supplier:	Shenzhen BST-SIGN Electronics Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Square Meter
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	BST-P16-OF
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Tube Chip Color:	Full Color
IP Rating:	IP65
Pixel Configuration:	1R, 1G, 1B
Pixel Pitch:	16mm
Display Function:	Video Display
Scanning Mode:	Static Scan
Certification:	RoHS
Pixel Density:	6400 dot / m²
Average Power Consumption:	350W / m²

Product Description

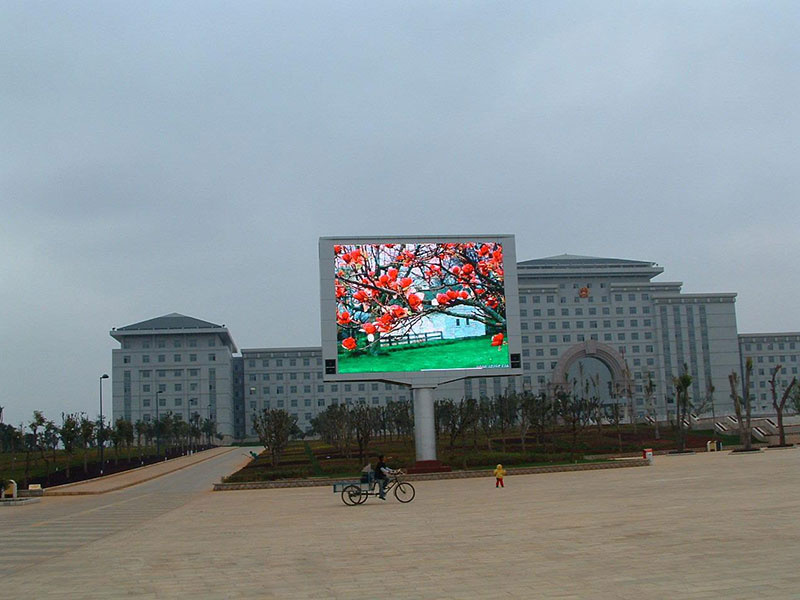

P16 Weatherproof Full Color Outdoor Fixed LED Display

Key Benefits

1. Broad viewing angle;
2. Frame-free installation;
3. Front and rear side maintenance.
4. High brightness, visible even with direct sunshine;
5. High water proof and dust proof, IP65 both front and rear side
6. Having good lightening accordance and no mosaic;
7. Having large viewing angle: Getting vivid effect within any position of the viewing range;
8. Any LED in died pixel can be respectively repaired, which reduce the cost of the display maintenance.

LED DISPLAY, LED STADIUM SCREEN, LED OUTDOOR SCREEN, OUTDOOR BILLBOARD

Model	PH16
Pixel Pitch	16mm
Unit Size	1024mm x 1024mm
LED Type	1R1G1B
Pixel / Unit	64x64
Unit Weight	80kg
Viewing Angle	H140° V70°
Application	Storage-40~60° C, Working-20~50° C
Protection Level	IP65
Power Consumption	500W/sqm Max
Power Consumption	240W/sqm Ave.
Driving	Static
Frame Refresh	≥ 60Hz
Data Refresh Rate	1, 200~4, 000Hz
Processing	16bit
Max Brightness	5, 500-6, 500nits
Power Supply	AC90-240V, 50~60Hz
MTBF	≥ 1, 000 Hours
Life Span	≥ 50, 000 Hours
Pixel Failure	< 0.0003

We are a full range manufacturer and LED display solution provider and its ancillary systems worldwide since 2009, headquartered in Shenzhen with a 6000 square meter Production state of the art facilities to cover international demands. We provide a one-stop shopping in the design, production, and distribution of LED display and solution for our domestic and global clients.

Our products Cover indoor, outdoor, fixed, rental and creative LED Solutions for various applications including sport, advertisement, concert, shopping mall, stadium, exhibition or any other indoor and outdoor events that comes to your imagination.

We strictly follow ISO9001: 2008 quality management system and passed CE, FCC, UL, RoHS, CCC etc. All of these factors ensure high quality LED products and effective services.
